Self Healing Capacitor Low Price Capacitor Manufactory 400V 30kvar, Power Factor Capacitor

Name: Self Healing Capacitor Low Price Capacitor Manufactory 400V 30kvar, Power Factor Capacitor
Brand: all-electronics-online.com
SKU: 812223975
Availability: InStock
Rating: 4.9 (70 reviews)

Price:	US $ 7.6/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BSMJ
Rated Kvar:	1-60kvar
Phase:	Three Phase and Single Phase
Design:	Box and Drty Type
Service:	OEM &ODM
Certificate:	Ce ,LVD ,ISO9001 Certificate
Warranty Time:	2 Years
Delivery Time:	2 Weeks
Type:	Polypropylene Capacitor
Application:	Automobile
Package Type:	Surface Mount
Capacitance:	1-60kvar
Electrolyte:	Polypropylene

Product Description

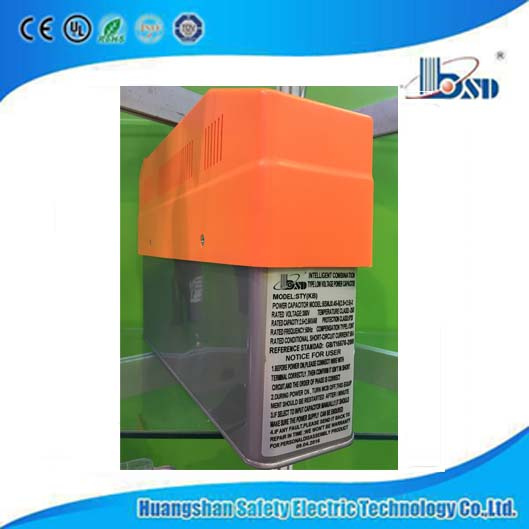

1.Dry type power factor capacitor ,BSMJ series .three phase and single phase
2.,220-690VAC, 50/60HZ , 1-60kvar ,
3. small size and low loss ,shunt compensate factor capacitor .
4.offer OEM ,ODM service ,
5.24 months warranty time ,long life ,top quality .
6.CE, ISO9001-2008, IEC60831 standard.

Types and specifications BSMJ	rated voltage (kV)	Rated capacitance (kvar)	capacitance (µF)	rated current (3-phase/1-phase)(A)	Rated frequency (Hz)	Height (H)mm
0.4-1-3(1)	0.4	1	20	1.4/2.5	50	110
0.4-2-3(1)	0.4	2	40	2.9/5	50	110
0.4-3-3(1)	0.4	3	60	4.3/7.5	50	110
0.4-4-3(1)	0.4	4	80	5.8/10	50	110
0.4-5-3(1)	0.4	5	99	7.2/12.5	50	110
0.4-6-3(1)	0.4	6	119	8.7/15	50	130
0.4-7.5-3(1)	0.4	7.5	149	10.8/19	50	130
0.4-8-3(1)	0.4	8	159	11.5/20	50	130
0.4-10-3(1)	0.4	10	199	14.4/25	50	180
0.4-12-3(1)	0.4	12	239	17.3/30	50	180
0.4-14-3(1)	0.4	14	279	20.2/35	50	210
0.4-15-3(1)	0.4	15	298	21.7/38	50	210
0.4-16-3(1)	0.4	16	318	23.1/40	50	210
0.4-18-3(1)	0.4	18	358	26.0/45	50	240
0.4-20-3(1)	0.4	20	398	28.9/50	50	240
0.4-22-3(1)	0.4	22	438	31.8/55	50	210
0.4-24-3(1)	0.4	24	478	34.6/60	50	210
0.4-25-3(1)	0.4	25	497	36.1/63	50	210
0.4-26-3(1)	0.4	26	518	37.5/65	50	210
0.4-28-3(1)	0.4	28	557	40.4/70	50	250
0.4-30-3(1)	0.4	30	597	43.3/75	50	250
0.4-35-3(1)	0.4	35	697	50.5/88	50	280
0.4-40-3(1)	0.4	40	796	57.7/100	50	200
0.4-50-3(1)	0.4	50	995	72.1/125	50	260
0.4-60-3(1)	0.4	60	1194	86.6/150	50	300

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
