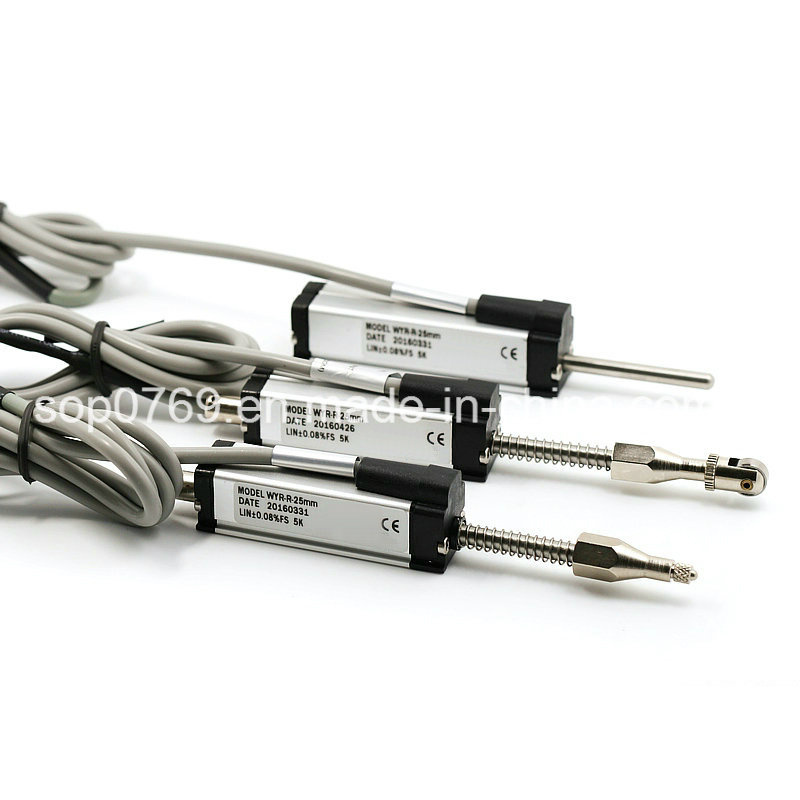

Self-Recovery Long Lifespan Sensor for The Miniaturization of Structures

Prod Model:	KTR-10mm
Feature:	Volume Smaller
Repeatability:	0.01mm
Working Speed:	10 M/S
Max Voltage:	42V
Material:	Aluminum Alloy

Product Description

Self-recovery Long Lifespan Sensor for The Miniaturization of Structures

Model												Unit
Working Stroke	10	25		38		50		75		100		mm
Electric Stroke	10.5	25.5		38.5		50.5		75.5		101		mm
Resistance value	2	2		5		5		5		5		KΩ
Resistance Tolerance	5											±%
Degree of Linearity	0.3	0.3		0.3		0.3		0.2		0.15		±%
Repeatability	0.01											mm
Working Current	≤ 1											μA
Max Current	10											mA
Max Voltage	42											V
Input Voltage and Output Voltage temperature Rate	5(typical Values)											ppm/K
(500VDC,1bar,2s) Insulation Resistance	≥ 10											MΩ
(50Hz,2s,1bar,500DVC) Insulation Intension	≤ 100											μA
Length	43.5		48.5		53.3	78	93		118		143	±2mm
Mechanical Stroke	9		14		19	29.5	54.5		79.5		105	±2mm
Movement	±3° Angular deviation, ±0.5mm Parallel Deviation
Horizontal Direction	≤0.4											N
Vertical Direction	≤1.1											N
Temperature Range	-40~120											ºC
Anti-vibration	Frequency 5~2000 Distance Amax=0.75 weight a max=20											Hz/mm/g
Shock Resistance	weight/time											g/ms
Use Life	>20×106
Working Speed	5											m/s(max)
Acceleration	200(20g)											m/s(max)
Protect Grate	MAX IP65 DIN405000/IEC529


Product  feature:

Volume smaller
Usage life is longer, Times could reach fifty million
Sensor with back spring
Could  use  in  all kinds of worse environment(humid, oily, dusty)
Protection grate is ip65
Din standard contact point
Double bearing type bar
Don't affect with an external impact and vibration
Cable type connection
Could equip with voltage and current(2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
