Self Supporting 24 Cores G652D Singlemode Optical Fiber Cable

Name: Self Supporting 24 Cores G652D Singlemode Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 818136495
Availability: InStock
Rating: 4.7 (39 reviews)

Price:	US $ 0.15-0.5/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTC8Y
Fiber Type:	G652D
Fiber Count:	2-24 Cores
Fiber:	Singlemode/Multimode
Messenger Wire:	Steel Wires
Applications:	Aerial
Installation:	-40~+70
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Yueyou
Sheath Material:	PE/HDPE Material

Product Description

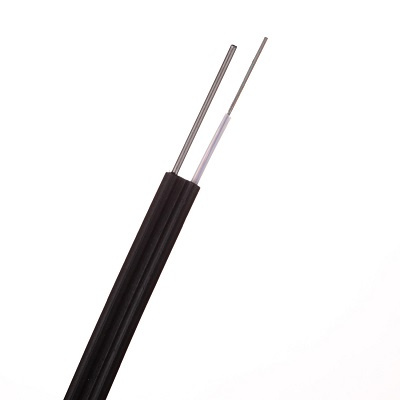

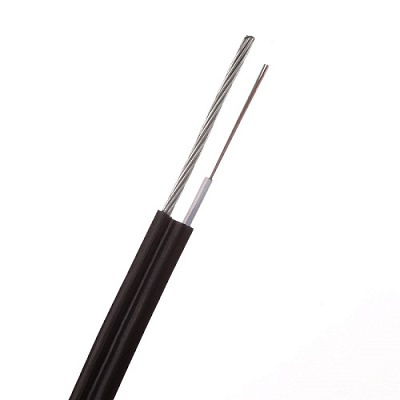

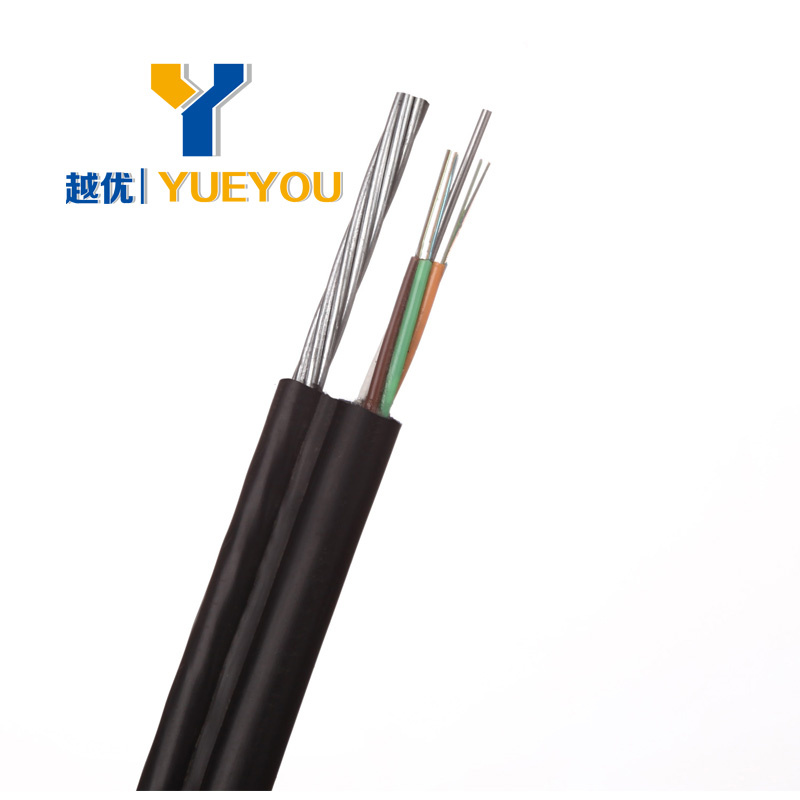

Self Supporting 24 Cores g652d singlemode optical fiber cable

Description:

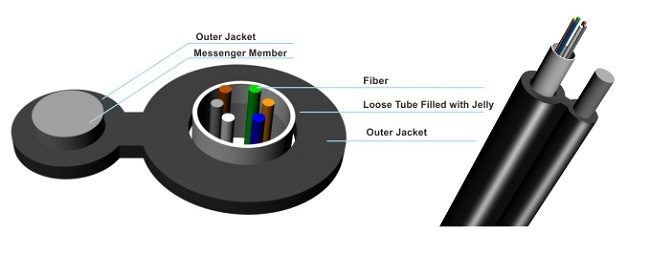

The fiber are positioned in a loose tube made of high modulus plastic, PBT loose tube are filled with
water-resistance filling compound,Figure8 self-supporting structure provide high tensile strength.
Outer sheath is made of UV resistance PE jacket.

Features:

Fiber count: 2-24 Fibers in Gel filled loose tube.

Fiber selection: Single mode or Multimode.

Messenger member:1.8mm or 2.0mm steel wire.

Gel filled loose tubes for a critical protection of fiber.

Stranded galvanize steel wire with high tensile strength, which can meet the requirement of existing telephone pole.

Allows easy aerial installation, cost savings for installation.

Sheath materials suit a variety of installation environments, UV and moisture resistance design.

IEC 60794-1standard.

Applications:

Aerial.

Fiber Characteristics:

Fiber		G.652D	G.655	50/125um	62.5/125um
Attenuation(+20ºC)	@850nm			≤3.0dB/km	≤3.3dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500MHz.km	≥200MHz.km
Bandwidth	@1300nm			≥500MHz.km	≥500MHz.km

Physical characteristics and mechanical performance:

Fiber count	Cable diameter(mm)	Cable Weight(kg/km)	Allowable Tensile Load (N)	Allowable Crush resistance (N/100mm)	Dynamic and Static Bend (mm)	Installation Temperature Range(ºC)
2-12	5.5×12.5±0.2	100±10	4000/2000	1000/300	20D/10D	-40~+70
14-24	6.0×13.0±0.2	120±10	4000/2000	1000/300	20D/10D	-40~+70

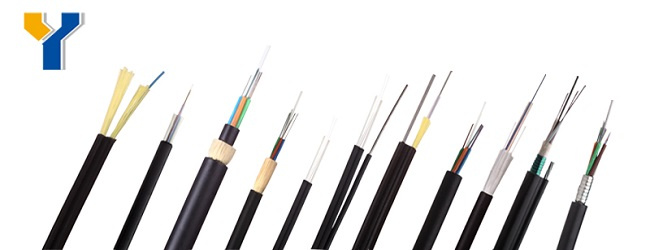

More popular products:

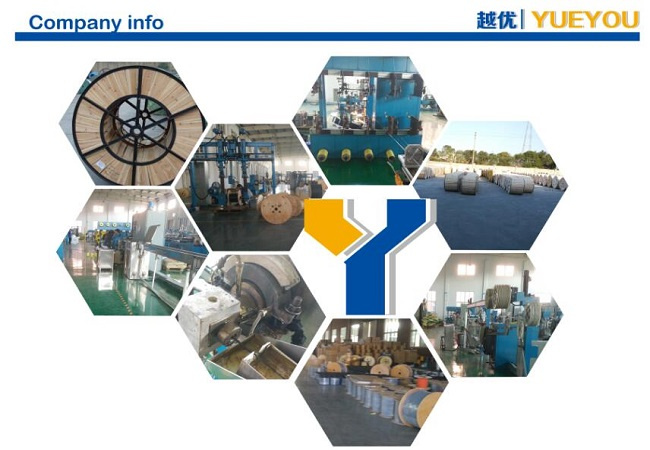

Ningbo Haishu Yueyou Communication Equipment Limited Located in zhejiang Province, is a professional manufacturer of fiber optic cables in China, more than 10 years experience in manufacturer, sales about communication cables.
