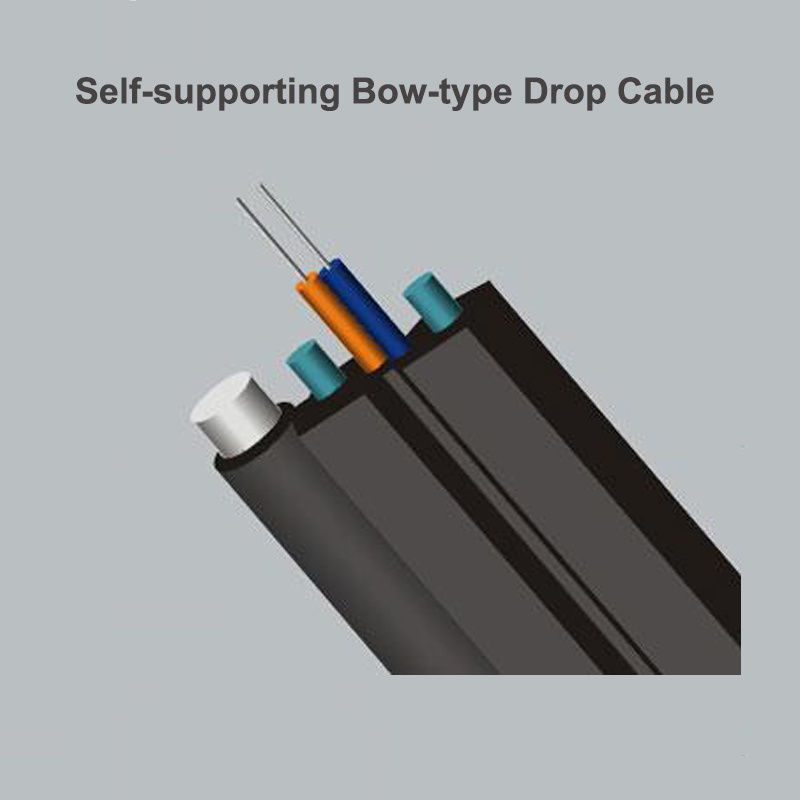

Self-Supporting Bow-Type Drop Optical Fiber Cable

Name: Self-Supporting Bow-Type Drop Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 730719502
Availability: InStock
Rating: 4.8 (60 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Bow-type Drop optical fiber Cable
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Yinet

Product Description

Datasheet

Fiber Count	Cable Diameter(mm)	Cable Weight(kg/km)	Tension(N)		Crush(N/100mm)		Min.Bend Radius(mm)		Range of Temperature(ºC)
			Long Term	Short Term	Long Term	Short Term	Dynamic	Static
4	5.2*2.0	18.0	300	600	1000	2200	60	30	-20~+60
Note:	All the values in the table, which are for reference only, are subject to change without notice;
	The cable core use the colored coating fiber of 250
	The minumum bend radius(static) is 15mm when G.657 fiber is used

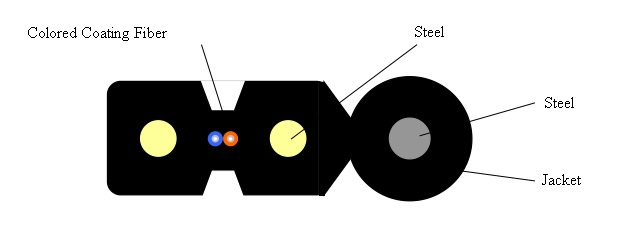

Structure

Specification

   Good mechanical and environmental characteristics;
   Flame retardant characteristics meet the requirements of relevant standards;
   The mechanical characteristics meet the requirements of relevant standards:
   Sott, flexible, easy to lay and splice, and with big capacity data transmission:

Application

Used as access building cable
Used in indoor cabling, especially used for FTTH

Customize

Fiber Type:G.652, G.655 or 6.657 single-mode fiber. A1a or A1b, OM3 or OM4 mufti-mode fiber, or other types of fiber;
Fiber Count:2core,4core,according to customer requirement
Jacket Material: Environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant palyolefin(LSZH),environmental halogen flame retardant polyolefin(ZRPO), environmental thermasplatic polyurethane(TPU), or other contracted material;;
Jacket Color:(Including color of tiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1 km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.
