Self-Supporting Communication Cable (HYAC) for Duct/ Aerial Use

Name: Self-Supporting Communication Cable (HYAC) for Duct/ Aerial Use
Brand: all-electronics-online.com
SKU: 798502425
Availability: InStock
Rating: 4.3 (53 reviews)

Price:	US $ 10-50/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HYAC CABLE
Uusage:	Voice Communication
Features:	Aerial Cable
Shielding:	Aluminum Blets
Waterproof:	Yes
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Type:	Cat 3
Certification:	CCC
Brand:	ADP or Customized

Product Description

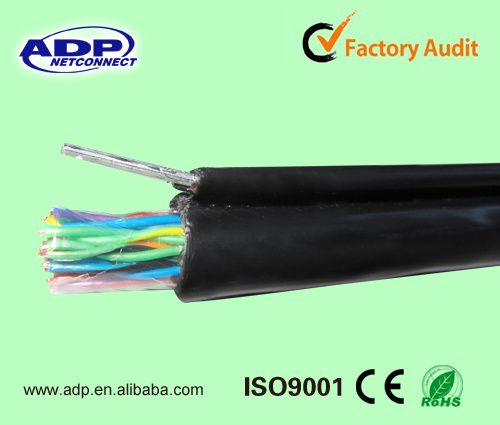

20 Pairs HYAC telephone cable Aerial cable with messeger wire
Specifications
1. Type: Underground jelly filled and unarmoured cable HYAC
Size: 10-2400pairs
Executive Standard: YD/T 322-1996
Referred Standard: IEC, ASTM, BS
2. Structure: Annealed copper conductor, solid polyolefin insulation, Jelly filled, polyester coated aluminum tape (PAP) longitudinally wrapped, PE sheathed local communication cable
3. Min. Bending radius: Not less than 15 times of the outer diameter when the outer diameter is not more than 40mm and not less than 20 times of the outer diameter when the outer diameter larger than 40mm
4. Usage: Transmitting audio frequency signals, analog signals up to 150kHz or digital signals up to 2048kbit/s and in certain condition can carry digital signals, which is higher than 2048kbit/s
5. Application mode: Conduit, direct buried
6. Inner packing: Delivery on wooden-iron composite drums, strong enough suitable for handling, long distance shipment and storage
7. Outer packing: Wooden battens to be used to protect the drummed cable or even a metal tape secured outside
8. Packing: Iron wooden drum

Cat3 Cable		Using:outdoor or indoor,Amord or unmord
Conductor material	CCA+CCS, CCA, Copper
Conductor diameter	Solid one: 0.4mm, 0.45mm, 0.5mm
	Stranded one: 24 AWG, 26 AWG, 28 AWG
Num of Conductor	2P, 4P, 8P, 10P, 25P, 50P, 100P, 200P ,,,,,
Insulation material	PE , HDPE
Insulation diameter	0.9±0.02mm
Jacket material	PVC, ROHS PVC, LSZH PVC

Norminal Cross-section	Wire core Structure No/mm	Insulation Norminal Thickness mm	Sheath Norminal Thickness mm	Calculation Outer Diameter mm	Product Approximated Weight Kg/km
1x2x0.5	0.5	0.22	0.6	3.4	14
2x2x0.5	0.5	0.22	0.6	4.2	26
3x2x0.5	0.5	0.22	0.6	4.8	29.7
4x2x0.5	0.5	0.22	0.6	5.5	37.5
8x2x0.5	0.5	0.22	0.7	7	58
16x2x0.5	0.5	0.22	0.8	9.6	105
25x2x0.5	0.5	0.22	1.2	11.5	167

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
