Self-Supporting FTTH Optical Fiber Drop Cable 1 or 2 Fibers

Name: Self-Supporting FTTH Optical Fiber Drop Cable 1 or 2 Fibers
Brand: all-electronics-online.com
SKU: 686821231
Availability: InStock
Rating: 5 (90 reviews)

Price:	US $ 0.1-0.8/Meter
Min Order:	2000/Meter
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FA-FXDP0202
Jacket Material:	LSZH
Fiber Type:	G657A
Color Of Jacket:	Black
Strengthen Member:	FRP or Steel Wire
MOQ:	2km
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Customized
Sheath Material:	LSZH

Product Description

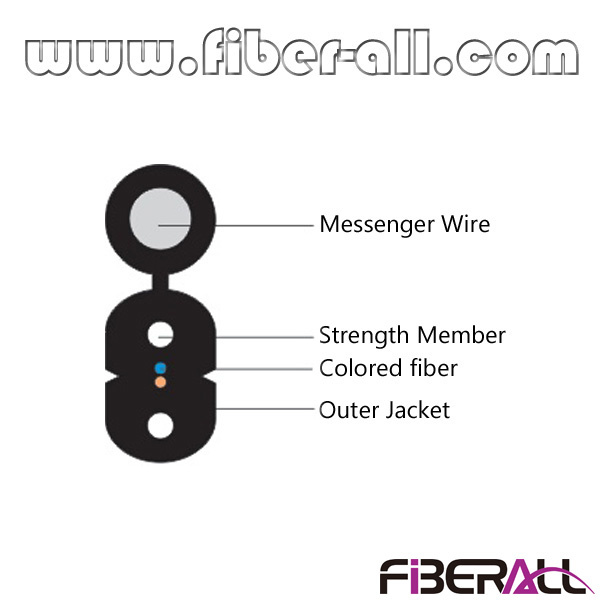

FA-FXDP0202, Steel Wire Self-supporting Bow-type FTTH Optical Fiber Drop Cable, Butterfly Shape, 1 or 2 Fibers

Applications:
Used as access building cable;
Used in indoor cabling, especially used for FTTH.

Product Features:
Excellent mechanical and environmental characteristics;
Flame retardant material meets the requirements of relevant standards;
Mechanical characteristics of jacket complies the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Various options can meet different requirements of market and clients.

Technical Parameters:

Fiber Count	Cable Dimension (mm)	Cable Weight (kg/km)	Tensile (N)		Crush (N/100mm)		Min. Bend Radius (mm)		Range of Temperature (ºC)
			Long Term	Short Term	Long Term	Short Term	Dynamic	Static
1-2	5.3×2.0	18	300	600	1000	2200	60	30	-20~+60
Notes: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable core use the colored coating fiber of 250μm; 3. The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used; 4. The minimum bend radius (static) is 15mm when G657 fiber is used.

Order Options (Fiberall drop cable) :
Fiber Type: G652(B, D), G655(C) or G657(A1,A2, B);
Jacket Material: PVC, LSZH, ZRPO, PE
Jacket Color: Yellow, White, Black
Strengthen number: FRP, KRP/ARP, Steel wire
Wire Messenger: for option
Cable Dimension: The nominal cable dimension or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.

Shenzhen Fiberall Technology Co., Ltd was started in 2007 and we are located in Shenzhen China. As a company engaged in fiber optical engineering related products, our main business including: Research and development (R&D), manufacturing, marketing; Optical engineering solution design; Maintenance, consulting service and accessories outsourcing.

Our main products are: All kinds of Fiber PLC Splitters, FBT Couplers, Fiber Cable Assemblies, Patch Cords, Fiber Pigtails, Fiber Adapters, Patch Panels, Fiber Optical Transceivers, OLT (Optical Line Terminal), OUN (Optical Network Unit), FTTX, Equipments & Accessories for Fiber Test, Installation, Maintenance & Repair.

With eight years' experience in fiber optic, Fiberall established a relatively perfect products and service system, with rich industry experience, comprehensive technology and high-quality team, we are able to provide our customers with OEM & ODM service, project implementation, maintenance, and after-sale service and we have ability to meet different requirement from different customers like distributors, operators, contractors and users etc.
