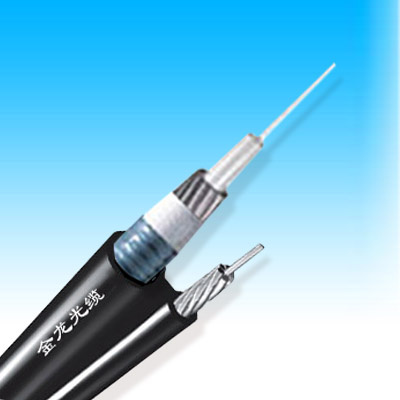

Self-Supporting Gyxtc8s Aerial & Underground Fiber Optic Cable
| Price: |
US $ 0.35/Meter |
| Trade Terms: |
FOB,CIF |
| Min Order: |
20000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GYXTC8S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Quantity Of Fibers: |
2~244 |
| Number Of Conductors: |
≥ 10 |
| Fiber Type: |
Single Mode or Multi Mode |
| Model Number: |
Gyxtc8s |
| Cable Sheath: |
MDPE or HDPE |
| Tube Type: |
Central Loose |
| Certificate: |
ISO9001 CE |
| Operating Temperature: |
-40 ~ +60 C |
| Color: |
Black |
| Application: |
Sensor |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
| Material Shape: |
Fig 8 |
| Connection Structure: |
Joint Box |
Product Description
Self-Supporting Gyxtc8s Aerial & Underground Fiber Optic Cable
Packaging & Delivery
Packaging Details: Wooden Drum or Iron wooden drum
Delivery Detail: 15~20 Days
Specifications
1, it is made by professional manufacturer.
2, it is popular in using piping, and overhead.
3. Quality assurance
4, best pric

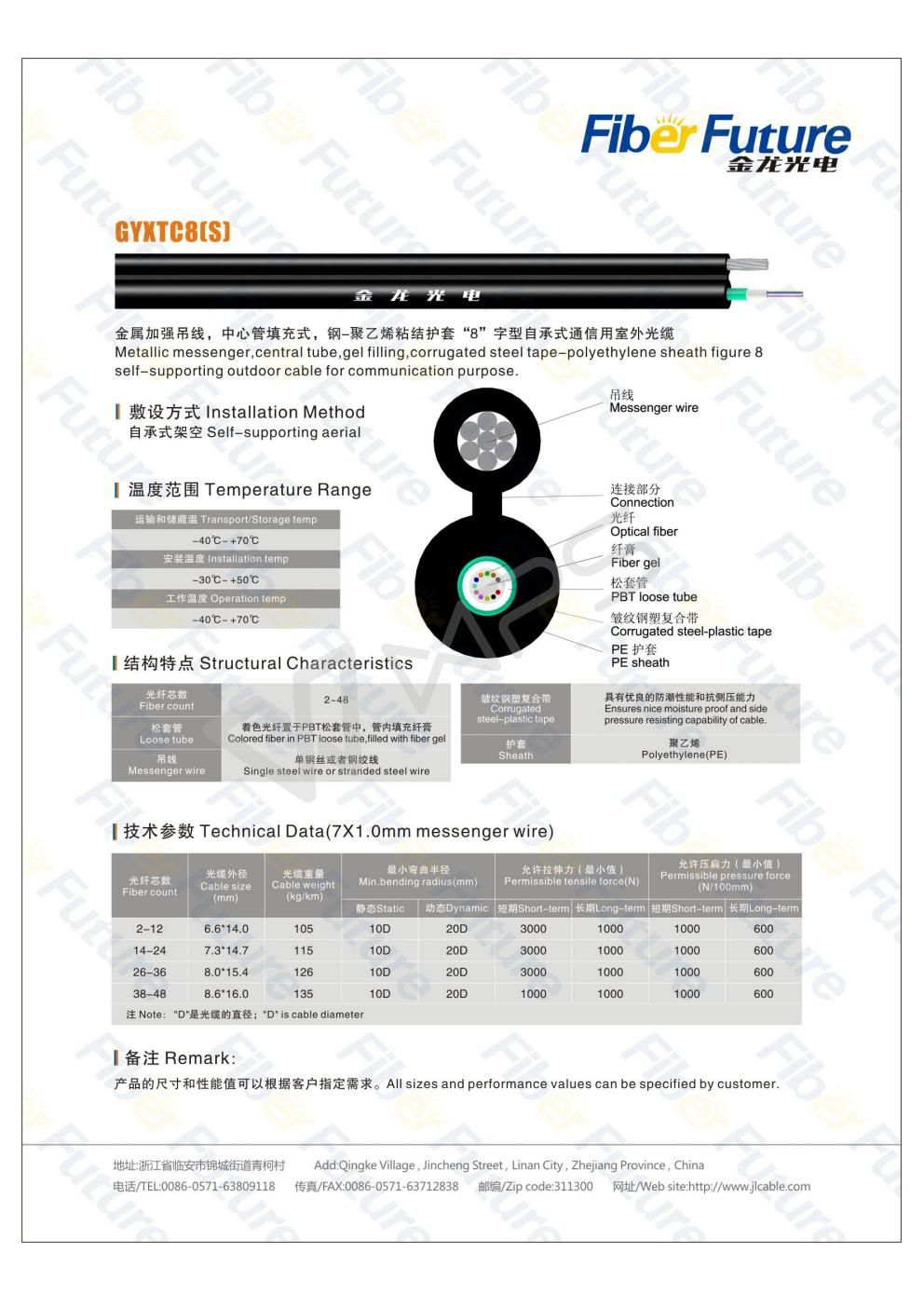

GYXTC8S figure-8 optic fiber cable
High quality optical fiber provides good transmission performance
Accurate fiber excess length control ensures excellence mechanical and temperature performance
Strict craft and raw material control for cable stably operating over 30 years
The sturcture of all section water blocking and longitudinally armored with both side coated aluminum tape provide good performance of moisture-proof and water blocking
Longitudinal corrugated steel tape improves crush resistance of the cable
Figure-8 self-supporting structure has good tensile strength and allows easy aerial installation for installation cost savings
Technical Characteristics
Fiber count: 2~144
Low loss, low dispersion
Proper design and precise excess length control and cabling process offers cable superior mechanical and environmental properties
Steel wire armor and steel tape armor enhance the cable's anti-bending and side pressure resisting capability, and prevent it from gun and redent
Small size, light weight, self-supporting
Performance
Applicable to long distance, inter-exchange communication, CATV, computer network transmission system, etc.
Minimum bend radius: Static 10D, Dynamic 20D
Operation temperature: -40 ~ +60
Cable bending radius:
10 x cable diameter (during operation)
20 x cable diameter (during installation)
Features
High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
Steel tape moisture barrier| Fiber | Tube Diameter | Messenger strand steel wire diameter | Sheath thickness (nominal*) | Diameter | Weight |
| number | W*H (Nominal*) | (Approx.) |
| | mm | mm | mm | mm | kg/km |
| 12 | 3 | 3.0 (1.0mm*7) | 1.5 | 7.3*14.3 | 116 |
| 24 | 3.6 | 3.0 (1.0mm*7) | 1.5 | 7.9*14.9 | 125 |
| Operating temperature range | -40oC to +60oC |
| Storage / Transport temperature range | -50oC to +70oC |
| Installation temperature range | -20oC to +50oC |
| Quantity of fibers | 2~288 |
| Promised tension (N) | Long-term 1000 |
| short-term3000 |
| Promised pulling tension (N100/mm) | Long-term1000 |
| Short-term3000 |
| Min bend radius(mm) | Long-term 15D |
| Short-term 30D |
| Operating temperature () | -40~+60 |
| The way | Aerial |
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.
Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
