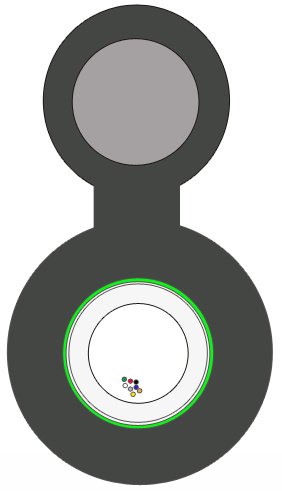

Self Supporting Mini Fiber Optic Cable
| Price: |
US $ 0.594-0.596/Meter |
| Min Order: |
3000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Delivery Time: |
15 Days |
| Sample Time: |
7 Days |
| Fibers: |
up to 288 Cores |
| Out Sheath Material: |
HDPE |
| Corrugated Steel Tape: |
Corrugated Steel Tape |
| Rip Cord: |
Two Rip Cords |
| Water Blocking Material: |
Water Swellable Jelly |
| Csm: |
Steel Wire |
| Operating Temperature Range: |
-40 to +70 |
| Usage: |
Aerial Self Supporting Optical Fiber Cable |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Joint Box |
| Sheath Material: |
HDPE |
Product Description
Packaging Details: | Packed on fumigated wooden Drum suitable for long distance shipment. |
|---|
| Delivery Detail: | Fifteen Days |
|---|
Technical Specifications for Optical Fiber Cable
1. General 1.1 This specification covers the requirements of the out door optical fiber cable to be supplied to customer for installation duct. 1.2 The optical fiber cable shall comply with the requirements of this specification and generally meet or better latest standards: ITU-T G.650: Definitions and test methods for linear, deterministic attributes of single-mode fiber and cable ITU-T G.652.D: Characteristics of a single-mode optical fiber and cable IEC 60793-2-50 B1.3: Sectional specification for class B single mode fibers IEC 60794-3: Optical Fiber Cables, Part 3, Generic Specifications-Basic optical cable test procedures. IEC 60794-3-11: Optical fiber cables - Part 3.11: Family specification for duct and direct burial outdoor optical fiber cables. - Cable structure and parameter
| |
| Construction and Parameter Items | Descriptions |
| Optical fiber (G.652D) | 2C -12C | | | |
| Loose tube | Fibers per tube | 2C to 12C | | | |
| Diameter (mm) | 3.0 | | | |
| Supporting wire | Size | 1.6mm galvanized steel wire |
| Outer sheath thickness | 1.1mm |
| Water blocking material | Water blocking tape and water blocking yarn |
| Armour | Material | corrugated steel tape |
| Neck size | Neck width | 2.0mm |
| Neck high | 2.0-2.2mm |
| Outer sheath | Material | Black HDPE |
| Thickness | Nominal: 2.0mm |
| Cable nominal diameter(±0.2mm) | 8.1 *14.2cm | | | |
| Cable approx. weight (±10kg/km) | 105 | | | |
| Minimum Bending radius | Dynamic | 30 times of cable diameter |
| Static | 15 times of cable diameter |
| Temperature range | Installation | -40ºC~+70ºC |
| Storage | -40ºC~+70ºC |
| Operation | -30ºC~+70ºC |
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.
Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
