Hangzhou Hongfeng Cable Co., Ltd.
Hangzhou Hongfeng Cable Co., Ltd. >> Sell Micro Rg58u Coaxial Cable 50 Ohms CCTV Cable

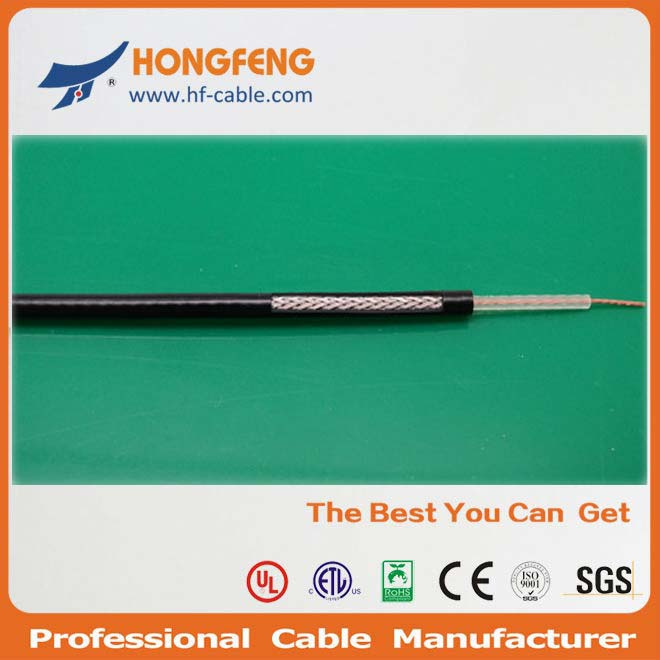

Sell Micro Rg58u Coaxial Cable 50 Ohms CCTV Cable

Sell Micro Rg58u Coaxial Cable 50 Ohms CCTV Cable
Price: US $ 0.6-0.65/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Meter
Pay Type: L/C,T/T,D/P
Contact Supplier
Showroom Product Company Profile
Prod Model: RG58U RG58A/U RG58C/U RG59B/U
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Conductor 1: Solid or Stranded
Dielectric: Solid PE Insulation
Shielding: 144*0.10mm/112*0.13 Cu/Tc Wire
Shielding Coverage: 93%-95%
Jacket: 5.0 Mm PVC
Application: Car Application
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: ETL
Type: Coaxial

Product Description

Our services:
1, Good quality guarantee
2, CE. ROHS. ETL. ISO
3, Factory Price
4, OEM is ok
5, Short delivery time



Main products:
1) RG series Coaxial Cable: Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: 412, 500, 540;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: Lan Cable CAT3, Lan Cable CAT5, Lan Cable CAT5e, Lan Cable CAT6, Lan Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+lan cable.

Note: If the specification is not you need, please tell me and i will offer you price according your requirements.




Leo
Hangzhou Hongfeng Cable Co., Ltd.
http://www.hf-cable.com
Tel: +86-18268847560
Fax: +86-571-63816227



RG58U, RG58A/U, RG58C/U Constructions and performance:
Cable TypeRG58A/URG58URG58C/U
Inner conductorTC/CU19×0.18 mm0.80 mm19×0.18 mm
DelectricLDPE2.95 mm2.95 mm2.95 mm
Outer conductorTC/CU144×0.10112×0.13112×0.13
Shield  93%95%95%
SheathPVC/LSZH5.0 mm5.0 mm5.0 mm

Cable TypeRG58A/URG58URG58C/U
Impedance50 + 3 Ω50 + 3 Ω50 + 3 Ω
Nominal Capacitance100 pF/m94 pF/m100 pF/m
Velocity of Propagation66%66%66%
Insulation Resistance>2000 MΩ.KM>2000 MΩ.KM>2000 MΩ.KM
Inner conductor resistance37.5 Ω/KM35.0 Ω/KM37.5 Ω/KM
Outer conductor resistance17 Ω/KM16.5 Ω/KM16.5 Ω/KM
Test/Operating voltage(Max.) 5KV/2KV5KV/2.5KV
Operating Temperature range-30 C - +70 C-30 C - +70 C-30 C - +70 C
Screening effectiveness(100-900MHz)>55 dB>55 dB>55 dB

Return LossRG58A/URG58URG58C/U
30 - 300 MHz > 27 dB > 26 dB > 27 dB
300 - 600 MHz > 23 dB > 25 dB > 23 dB
600 - 900 MHz > 22 dB > 24 dB > 22 dB

Frequency (MHz)Attenuation (dB/100m)
 RG58A/URG58URG58C/U
509.7 9.1 10.8
10013.9 13.1 16.0
20020.4 19.4 24.0
40030.0 28.4 37.7
50034.2 32.2 41.3
60037.9 35.7 49.7
86046.9 44.8 64.2
100051.8 49.0 70.0
Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
