Semc Sale 1008mva Three-Phase Power Transformer

Semc Sale 1008mva Three-Phase Power Transformer
Price: US $ 3000000/Set
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: SFPZ-1008000/525
High Voltage: 525kv
Application: Electronic
Phase: Three
Coil: Core-type Transformer
Cooling Method: Oil-immersed Type Transformer
Winding Type: Separated Winding Transformer
Brand: Semc

Product Description

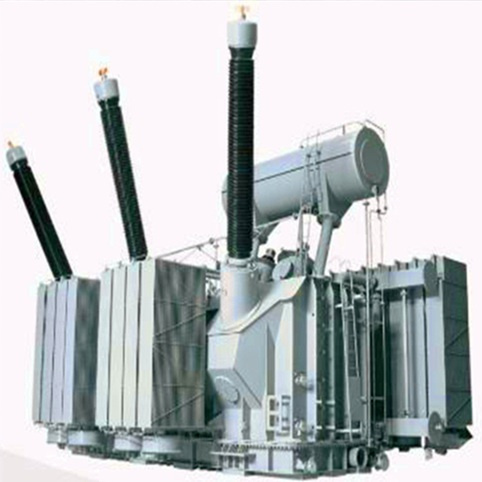

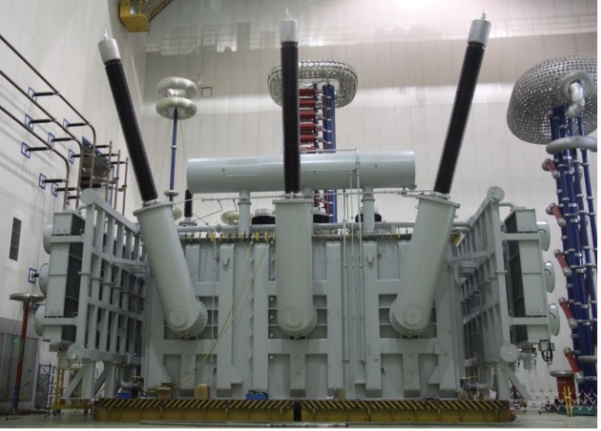

SEMC sale 1008MVA three-phase power transformer

Rated capacity MVA 1008
Rated frequency Hz 50
Rated voltage (HV / LV) kV 525/27
Phase - Three phase
Regulator - with load
Regulating range - + 10 × 1.25% ~ -6 × 1.25%
Cooling method - ONAN / ONAF / OFAF
Split
Connection group label - YN d1
Insulation level high voltage terminal LI / AC kV 1550/680
Low voltage terminal LI / AC kV 170/70
Neutral Terminal LI / AC 150/50
Temperature rise
Limit top oil K 55
Winding (average) K 65
Impedance voltage% 16.8 (at1008MVA)
No load loss kW 265
Load loss kW 2270
Total weight (approx.) Kg 59800
Inflatable Shipping Weight (approx.) Kg 404000
Insulating oil weight (about) kg 138000
Shanghai Electric Heavy Machinery Co., Ltd., Are affiliated company of Shanghai Electric Group Co., Ltd. (State company, turnover 100 billion USD We have been specializing in manufacturing, export and import electrical machinery, metallurgy equipment, turn key project for more than 50 years.

Our Main Products and Services: AC / DC motors, pumps, vertical hollow shaft motor(VHS IEC strand and NEMA standard),

1. Metallurgy Equipment

Medium frequency induction furnace, houlding furnace, steel bar induction heating furnace, Ladle refinery furnace; Electric arc furnace(EAF, VD, VOD, ad/DC Eaf, vacuum electric arc furnace), Continues casting machine(CCM), rolling mills, vacuum furnace, cooling tower systems, dust collectors

2. AC / DC motors, pumps, vertical hollow shaft motor(VHS IEC strand and NEMA standard), vertical turbine pump, alternators/diesel generator sets, MW power generators, HFO (heavy fuel oil generator ) generators. Investment casting accessory; Insulation Materials

3. Office Products, Arts and Crafts products, hotel leather products, leather stationery.

4. Import and Export Agent or Purchase Agent/Office 2%-5% cost.

0UR products have been sold to and distributed in more than 50 countries and regions. SEMC(SMC) warmly welcomes customers from at home and abroad to further develop business relationships and partnerships for a prosperous future.
