Jiangsu Bozhiwang Automation Equipment Co., Ltd. >> Semi-Automatic Diode Assembling Machine with High Quality

Semi-Automatic Diode Assembling Machine with High Quality

Semi-Automatic Diode Assembling Machine with High Quality
Price: US $ 1/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: BZW-84
Model: Bzw-84
Capability: 600-1200 PCS/H
Air Supply: 0.5-0.7 MPa
Dimension: 750*600*1150 mm

Product Description

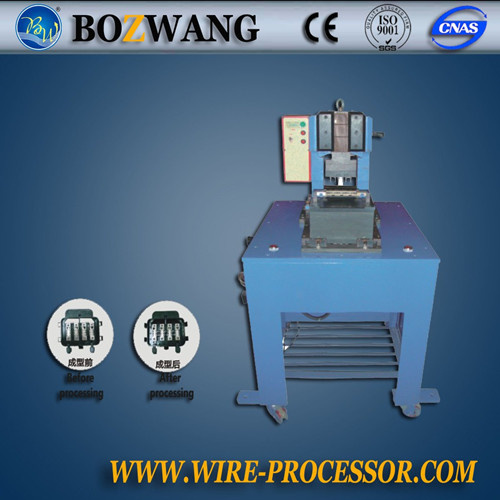

BZW-84 Semi-automatic diode assembling machine

Product features

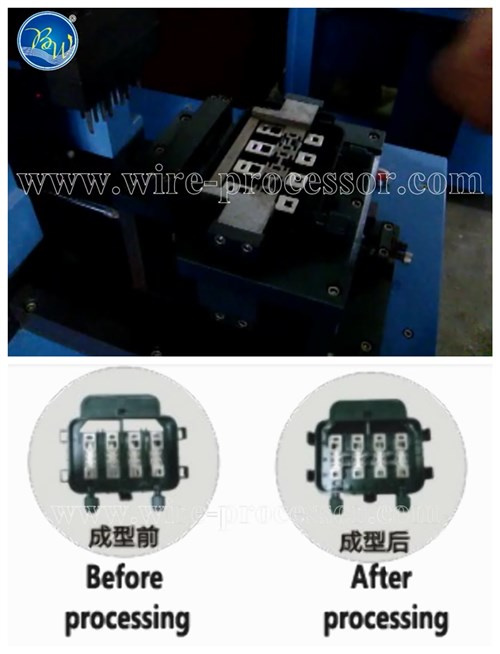

Assembling the diodes in the junction box of PV wire;

Several diodes are pressed at the same time, increase the production efficiency and save the labor force;

Precise positioning by the module which largely increases the qualified rate of the product;

Single phase frequency control for the riveting motor, energy saving and environmental protection;

Double working stations for operating and riveting to ensure the safety of the machine.

Technical parameters:
Processing range: the positioning module can be specially made as per the requirement

Capacity: 10-20 PCS/Min

Function: assembling for all the diodes in the junction box of PV wires

Air supply: 0.5 Mpa-0.7 Mpa (dry and clean air source)

Power: AC 220V/50HZ

Dimension: 750 x 600 x 1150 mm

Weight: about 180kg

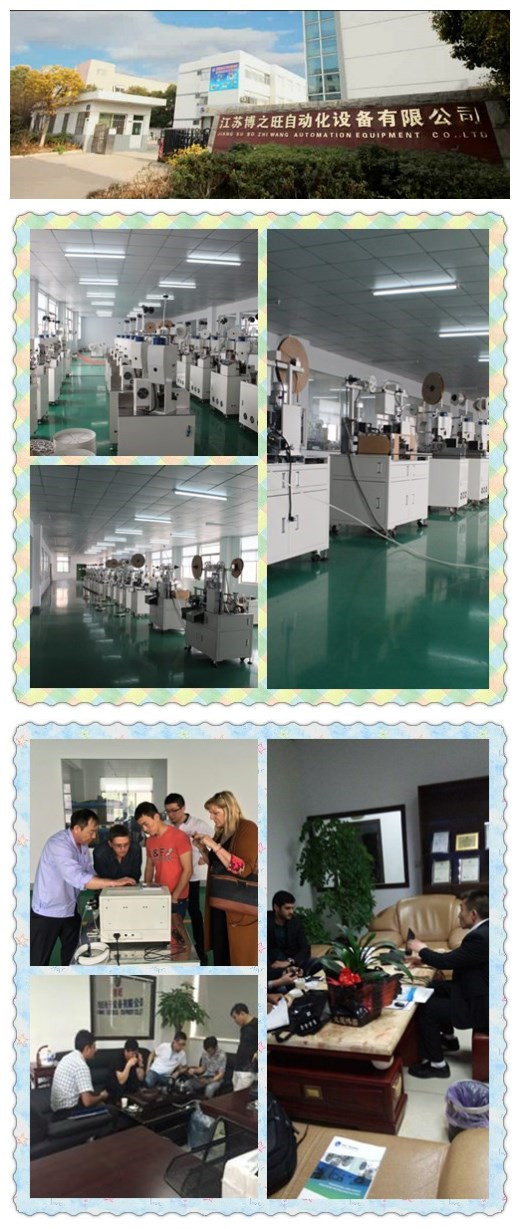

Company

Exhibition

Certification

Contact us
Jiangsu Bozhiwang Automation Equipment Co., Ltd, located in the Yangze River Delta Economic center where is beautiful and rich ---Changzhou city, Jiangsu Province, China. Our company is one of the largest manufacturers for the wire processing equipments in China. The area of our company is about 10000m2, and the number of the employees is more than 300 that includes 200 outstanding technicians. Since the establishment, our company always persists the principle "the quality is the life" to develop and grow stronger. <br><br>Our company strictly follows the ISO 9000 quality standard to produce the product, and has superior aftersales service and precise processing equipments in first class, such as full automatic single end & Double ends terminal crimping machine, all kinds of mute terminal crimping machines, computerized wire cutting & Stripping machine, full automatic wire cutting and striping machine, pneumatic wire stripper, mute copper tape machine, PC end heading machine, all kinds of terminal crimping die, terminal blades, tensile tester, twister, computerized tubing cutting machine. <br><br>Our company aims to establish the long term, stable and mutual benefit cooperating relationship with customers from home and aboard to achieve the common development. For many years, our products have earned the reputations and good feedbacks from customers of domestic and foreign. Our products have been supplied to USA, Italy, Demark, Switzerland, Iran, Korea and Middle East market. At Present, the following famous enterprises are the users of our equipment: Shanghai Volkswagen, Yutong, Rui KIA, the Changchen, Foton, Chery and other vehicle plants. Delphi, Samsung, LG, Molex, Xi'an Hai Tian, Otis, Yong da, Kang li, Kone elevator factory and so on. <br><br>The fast development of our company is due to the conception of the science and technology which booms the factory by efficient and reliable investment, and also persist in self innovation, to keep the advanced position in the fierce competing market. With our great efforts, our company has gained the honor of "Excellent private enterprise in Jiangsu Province" "Reliable enterprise in Jiangsu Province" and other honors. <br><br>To face the developing opportunity and challenge in the new century, Changzhou Bowang electronic equipment Co., Ltd will unites and leads all the employees, not only inherits and promotes the excellent traditions, but also develops and completes the quality of product and service, persists in pursuiting the excellence, in order to win more customer's approval and create a better future together.
