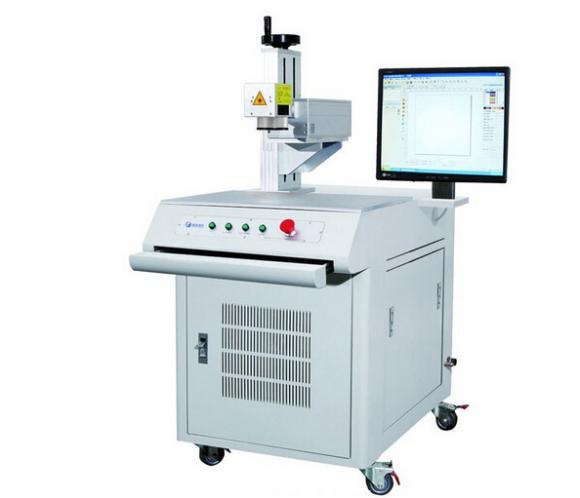

Semi-Conductor End-Pumped Laser Marking Machine

Name: Semi-Conductor End-Pumped Laser Marking Machine
Brand: all-electronics-online.com
SKU: 802680735
Availability: InStock
Rating: 5 (37 reviews)

Price:	US $ 3500-5500/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EP-12W/EP-20W

Product Description

Characters:
Smaller output laser facula, thinner marking line.Excellent light beam quality, high stable output laser, marking efficiency is easy to install.Laser frequency is high, marking speed is faster.The whole machine is stable, small volumn, low consumption.It is especially used for laser etching in transparent button products.The whole machine guarantee period is two years, could solve customers' worries.
Applicable scope:
It is used for high demand plastic product, slice metal products.
Technical parameters:

Model	EP-12W	EP-20W
Maximum laser power	12W	20W
Laser wavelength	1.06um	1.06um
Light beam diameter	8mm	8mm
Laser frequency	10-200khz	10-200khz
Laser model	Basilemma or low modulus	Basilemma or low modulus
Optical engraving range	100100, 150150, 180*180mm	100100, 150150, 180*180mm
Engraving line speed	≤7000mm/s	≤7000mm/s
Minimum line width	0.015mm	0.015mm
Minimum character	0.25mm	0.25mm
Repeat precision	±0.002mm	±0.002mm
Light beam diameter	8mm	8mm
Power stability	3%	3%
Cooling method	Air cooling	Air cooling
The whole machine consumped power	0.8KW	0.8kw
The whole machine dimension	60010001400mm	60010001400mm

Suzhou Prato Laser Technology Co., Ltd with registered capital of RMB 4 million, we are professionally engaged in laser marking machine, manufacture and installation. We have exported to more than 30 countries, with more than 5000 sets per year.

Our strength & brief as below:

1. Founded in 2010, with 2000 SQM production area.

2. Products Scope:

Laser marking machine for Metal field: SUS product, hardware industry, clock industry, gold & silver jewelry, mould and all metal material

Non-metal field: PVC industry, PCB circuit board, ABS shell, chip industry, plastic marking, ceramics products and so on.

Surface treatment: Oil paint or printing ink, anodizing oxidation, electroplate and electrophoresis for engraving logo or oxygen conductive treatment.

Other application: Micro hole machining, metal flat girdling, and metal deep marking.

Laser marking machine for non-metal or part of metal. It is widely used in food packing, beverage packing, medical packing, building ceramics, clothing accessories, leather, fabric cutting, craft gift, rubber product, electric element packing, shell nameplates and so on.

It is applicable for paper, wood, glass, leather and so on.

3. China national high-tech company, with nearly 50 engineers and 500 staff in total.

4. Service cover design, manufacture and installation.

5. We adopt Germany advanced technology, with high precision machines.

6. Biggest laser marking machcine manufacturer in northern China, with annual output 5000 sets

7. Got ISO9000, CE, TUV certificates, China national well-known brand.

8. Exported to more than 30 countries
