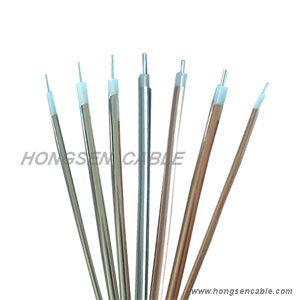

Semi-rigid Coaxial Cable - RG401

Name: Semi-rigid Coaxial Cable - RG401
Brand: all-electronics-online.com
SKU: 639747295
Availability: InStock
Rating: 4.8 (51 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG401
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Silver Plated Copper
Type:	Telecommunication
Cover Material:	Copper Tube or Silver Plated Copper Tube

Product Description

Coaxial Cable RG401

SPECIFICATION:
Inner conductor: 1.63mm silver plated copper
Insulation: 5.30mm PTFE
Outer conductor: 6.35mm Copper Tube or Silver Plated Copper Tube

Electrical properties:
Capacitance (pF/m): 95.1
Impedance (Ω ): 50.0
Velocity of Propagation (%): 70.0
Max Operating Frequency (GHz): 18.0
Max Operating Voltage (RMS): 3000.0
Min. Inside Bend Radius (mm): 12.5
Operating Temp Range (º C): -55 to 200

APPLICATION: Application: Radio Frequency, Telecommunication

Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
