Semi Tubular Hot Runner Coil Heater with 220V 230V Voltage

Name: Semi Tubular Hot Runner Coil Heater with 220V 230V Voltage
Brand: all-electronics-online.com
SKU: 690706091
Availability: InStock
Rating: 4.4 (130 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	220V 230V Voltage Hot Runner heater
Weight:	0.1kgs or Customized
Voltage:	220V or Customized
Power(W):	450W
Working Temperature:	≤800ºC
Length:	≤1900mm or Customized
Insulation Material:	Glass Fiber/Metal Braided She
Section Of Wire:	3X3, 4.2X2.2, 4X2, 4.5, 3.5
Electric Wire:	Cr20ni80

Product Description

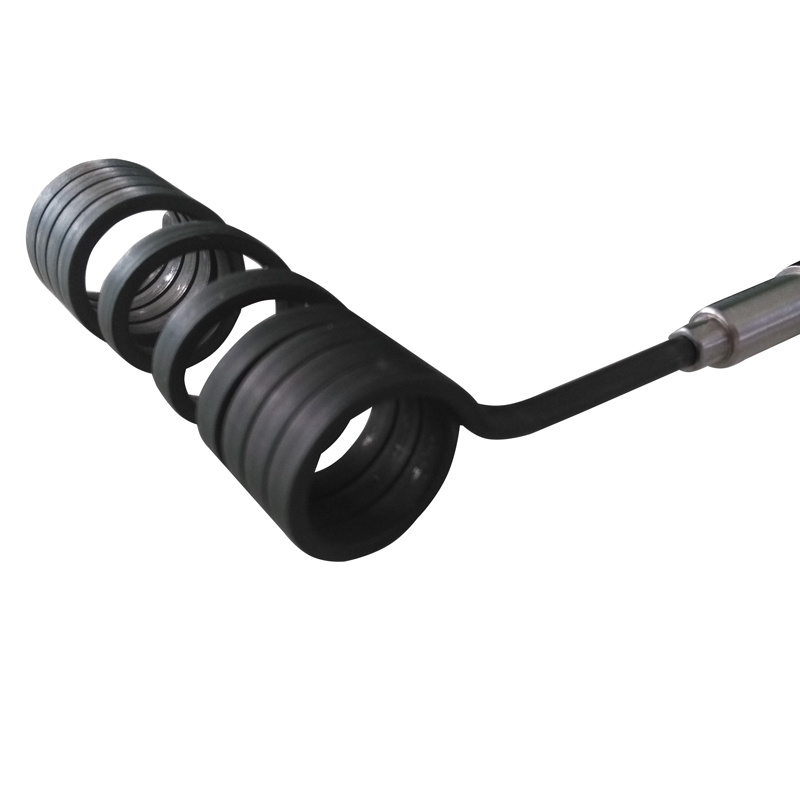

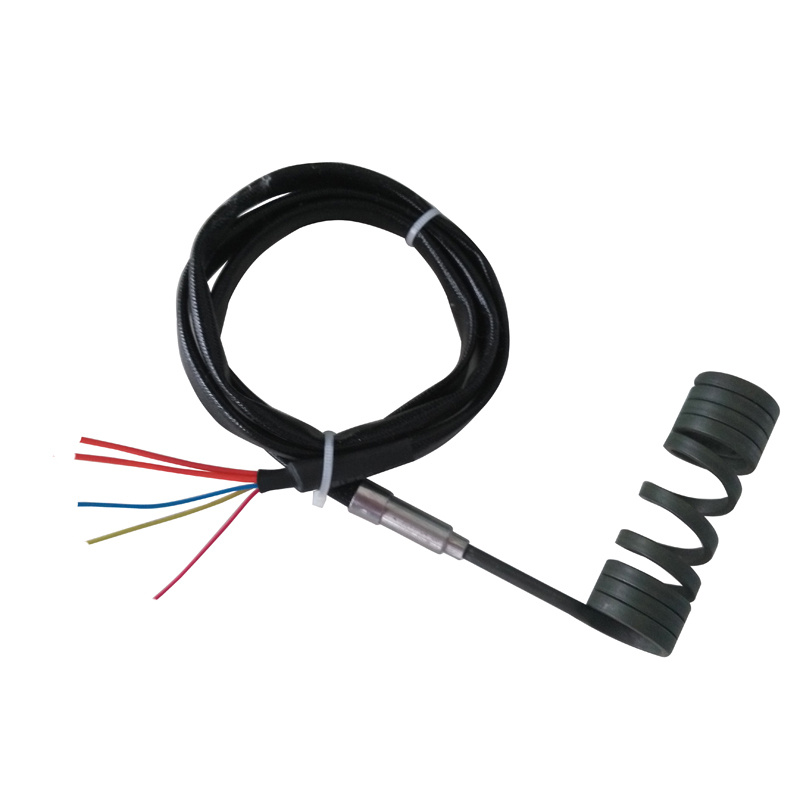

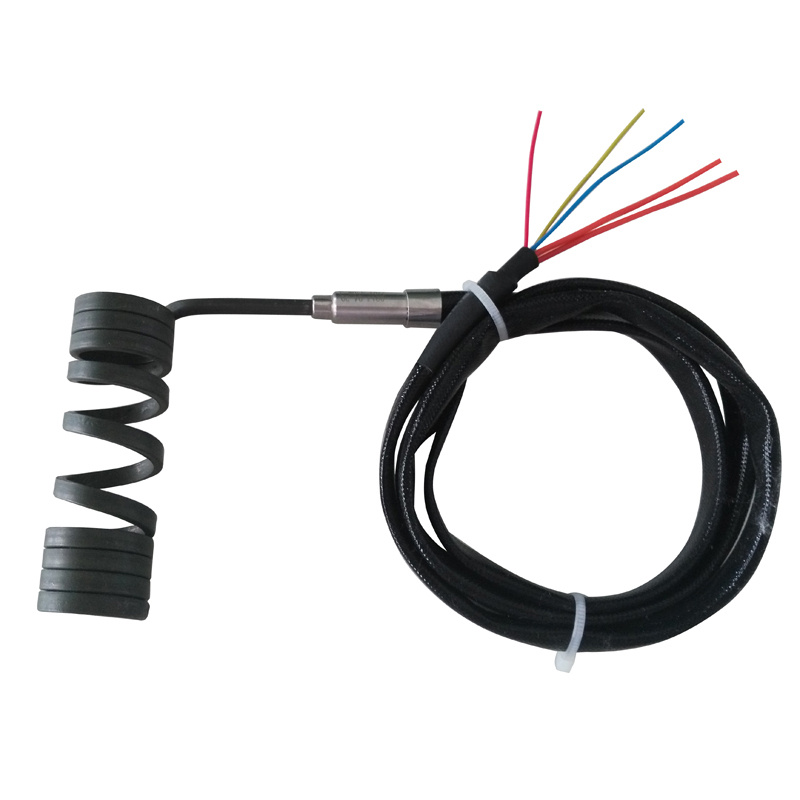

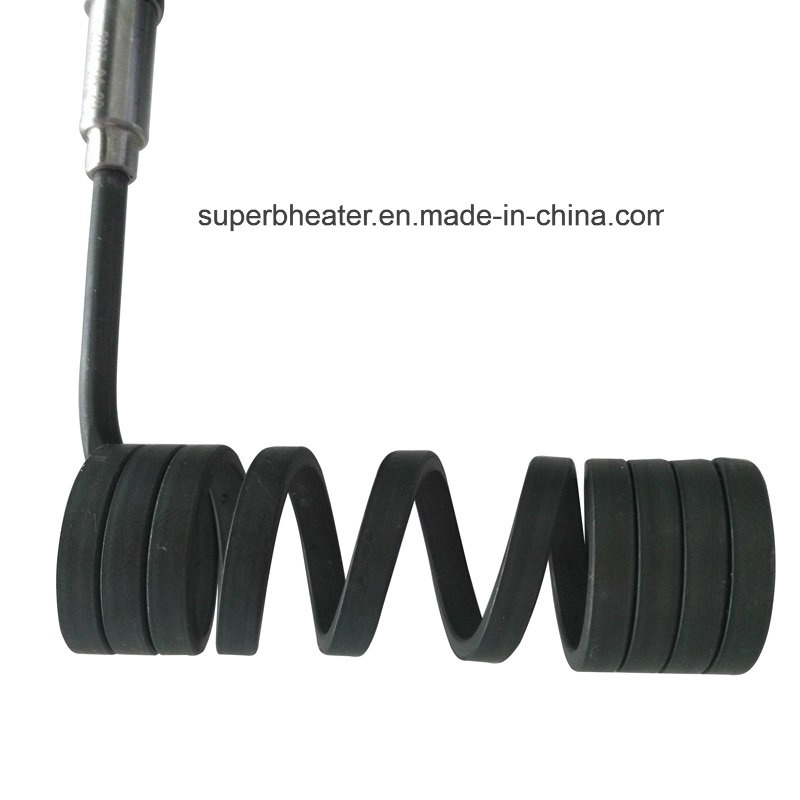

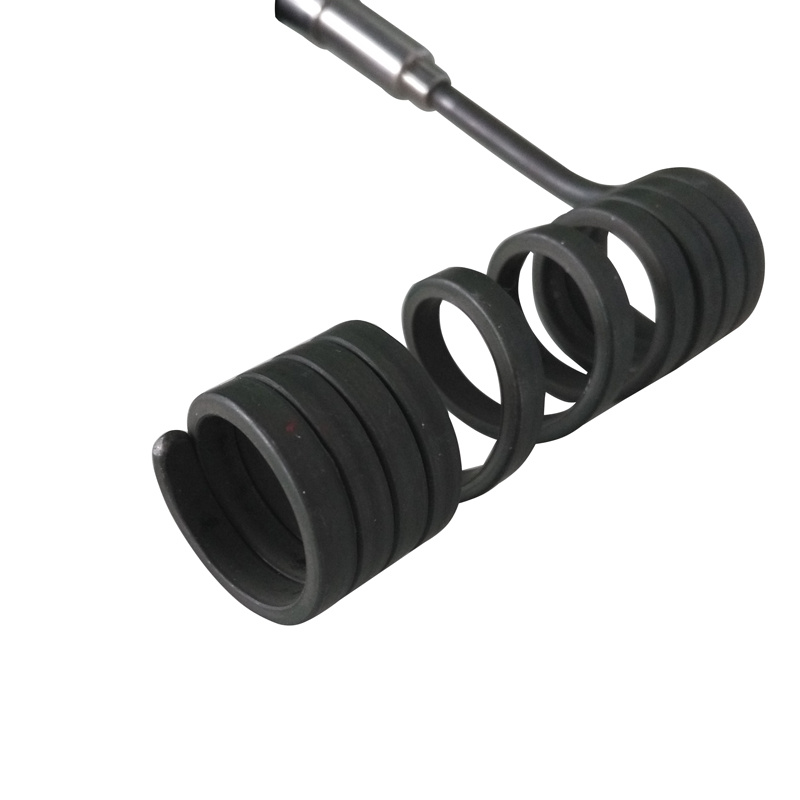

Semi Tubular Hot Runner Coil Heater with 220V 230V Voltage

Hot Runner Coil Heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.

Sheath Material	Cr Ni-Steel
Insulation Material	MgO
Resistance Wire	Ni Cr 80-20
Maximum Sheath Temperature	700°C
Die Electrical Strength	800V A/C
Insulation	>5 M W
Thermocouple	J type (Standard) or K type
Length Tolerance (Straight)	5%
Wattage Tolerance	+ 10% (+ 5% Available Upon Request)
Resistance Tolerance	+ 10% (+ 5% Available Upon Request)
Unheated Length	35mm (Standard)
Dimensional Tolerance	Coil I.D + 0.1 to 0.2mm
Dimensional Tolerance	Coil Length + 1mm

If you want to custom make any hot runner coil heater, please send us the following information and contact us to make the confirmation before you place an order , Thank you very much!

1. Inner Diameter

2.Cross section size

3. Length (mm) of heaters.
4. Wire length

5.Thermocouple type.
6. Voltage and Wattage.
7. Order Quantity.
