| Prod Model: |
CT-C |
| Professional Manufacture: |
Strong Technical Power |
| Good Price: |
Experienced After Sale Service |
| Structure: |
Oven |
| Package: |
Wooden Case |
| Delivery: |
90days |
| Certificate: |
ISO9001 ISO14001 |
Product Description

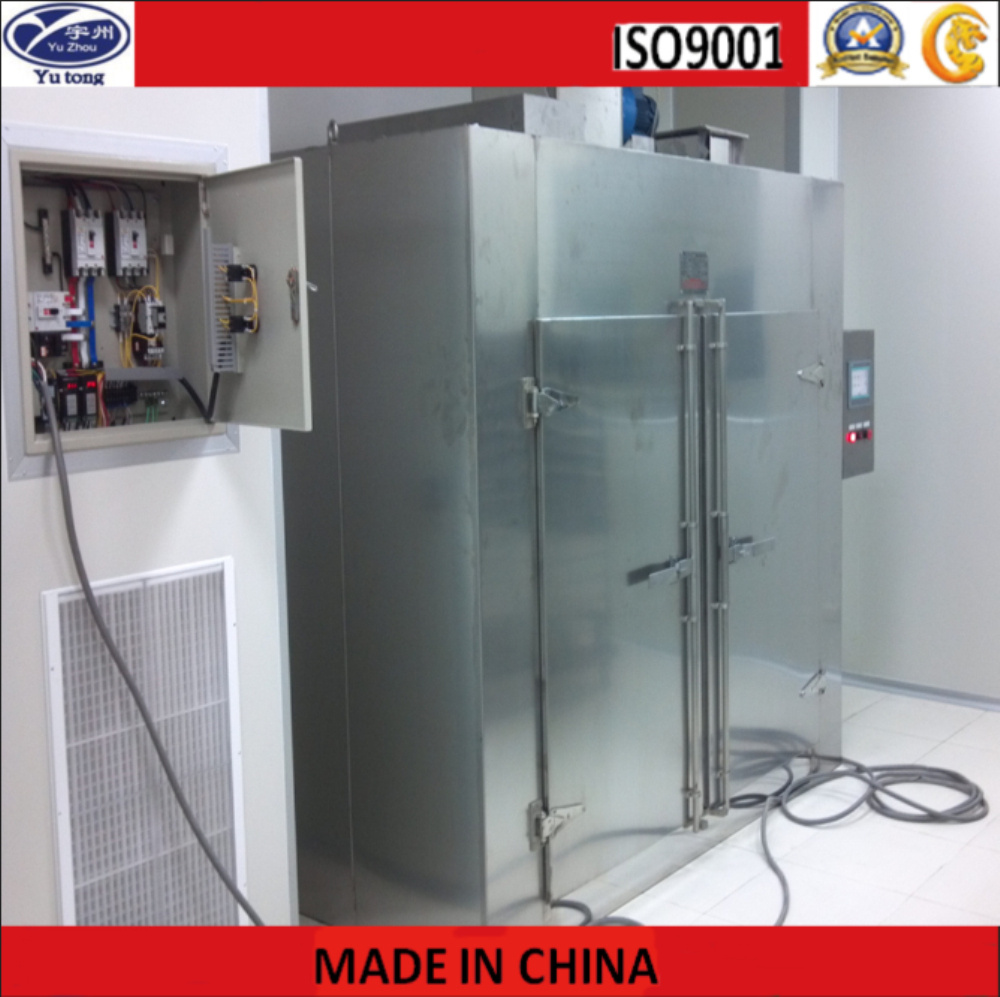

Electric Vacuum Constant Temperature Dry Oven
Description hot air circulating oven for Vacuum Insulation Panel
CT-C hot air circulating oven is equipped with axial flow fan and automatic constant temperature control system. The computer control system is also available. The thermal efficiency of our hot air circulation tray dryer is up to 70%. The biggest characteristic of this drying equipment is that part of the hot air circulates inside the oven, and the whole circulating process is closed, thus enhancing heat transfer and energy saving.
Features of Hot Air Circulating Oven
1. This hot air circulation tray dryer has wide range of application, as general drying equipment can dry all kinds of materials.
2. Heat source can use steam, conduction oil, electricity, hot water and far infrared.
3. It has wide range of temperature adaptation, the normal temperature can be heated to 140ºC by steam and 350ºC by electric heating.
4. CT-C hot air circulation tray dryer has the advantages of small noise, stable movement, automatic temperature control, easy installation and maintenance.
5. The dimension of the standard drying tray is 460×640×45 mm.
6. Drying trolley can be manufactured with mobile type, easy to move out for cleaning and maintenance.
Application
CT-C hot air circulating oven is mainly used for heat curing, drying and dehydrating materials and products in food, pharmaceutical, chemical, feed, pesticide, light industry, heavy industry and other industries. Typical materials dried by our drying equipment are dehydrated vegetables, fruits, crude drugs, Chinese herbal pieces, powder, particles, dissolved medicines, pigments, sausage, plastic resin, electrical equipment and baking finish.
Technical Parameters of Hot Air Circulating Oven
| Model | CT-C-O | CT-C-IA | CT-C-I | CT-C-II | CT-C-IIA | CT-C-III | CT-C-IIIA | CT-C-IV |
| Each Drying Amount (kg/lot) | 30 | 60 | 120 | 240 | 240 | 360 | 360 | 480 |
| Evaporation Area (m2) | 4.7 | 7.1 | 14.1 | 28.3 | 28.3 | 42.4 | 42.4 | 56.5 |
| Radiator Area (m2) | 8 | 15 | 24 | 48 | 48 | 72 | 72 | 96 |
| Steam Consumption (kg/h) | 7 | 15 | 20 | 40 | 40 | 60 | 60 | 80 |
| Electrical Heating Power (kw) | 6-9 | 6-9 | 15 | 30 | 30 | 45 | 45 | 60 |
| Fan Delivery (m2/h) | 3450 | 3450 | 3450 | 6900 | 6900 | 10350 | 10350 | 13800 |
| Fan Power (kw) | 0.45 | 0.45 | 0.45 | 0.45 × 2 | 0.45 × 2 | 0.45 × 3 | 0.45 × 3 | 0.45 × 4 |
| Temperature Difference (ºC) | ± 1 | ± 1 | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 |
| Outline Dimension (mm) (W × D × H) | 1400 × 1200 × 2000 | 1400 × 1200 × 2000 | 2300 × 1200 × 2000 | 2300 × 2200 × 2000 | 4280 × 1200 × 2270 | 2260 × 3200 × 2000 | 3240 × 2200 × 2000 | 4280 × 2200 × 2270 |
| Auxiliary Drying Cart (sets) | 0 | 1 | 2 | 4 | 4 | 6 | 6 | 8 |
| Auxiliary Drying Tray (pcs) | 16 | 24 | 48 | 96 | 96 | 144 | 144 | 192 |
| Total Weight (kg) | 500 | 820 | 1580 | 1800 | 1880 | 2100 | 2210 | 2800 |
Description
CT-C hot air circulating oven is equipped with axial flow fan and automatic constant temperature control system. The computer control system is also available. The thermal efficiency of our hot air circulation tray dryer is up to 70%. The biggest characteristic of this drying equipment is that part of the hot air circulates inside the oven, and the whole circulating process is closed, thus enhancing heat transfer and energy saving.
Features of Hot Air Circulating Oven
1. This hot air circulation tray dryer has wide range of application, as general drying equipment can dry all kinds of materials.
2. Heat source can use steam, conduction oil, electricity, hot water and far infrared.
3. It has wide range of temperature adaptation, the normal temperature can be heated to 140ºC by steam and 350ºC by electric heating.
4. CT-C hot air circulation tray dryer has the advantages of small noise, stable movement, automatic temperature control, easy installation and maintenance.
5. The dimension of the standard drying tray is 460×640×45 mm.
6. Drying trolley can be manufactured with mobile type, easy to move out for cleaning and maintenance.
Application
CT-C hot air circulating oven is mainly used for heat curing, drying and dehydrating materials and products in food, pharmaceutical, chemical, feed, pesticide, light industry, heavy industry and other industries. Typical materials dried by our drying equipment are dehydrated vegetables, fruits, crude drugs, Chinese herbal pieces, powder, particles, dissolved medicines, pigments, sausage, plastic resin, electrical equipment and baking finish.
Technical Parameters of Hot Air Circulating Oven
| Model | CT-C-O | CT-C-IA | CT-C-I | CT-C-II | CT-C-IIA | CT-C-III | CT-C-IIIA | CT-C-IV |
| Each Drying Amount (kg/lot) | 30 | 60 | 120 | 240 | 240 | 360 | 360 | 480 |
| Evaporation Area (m2) | 4.7 | 7.1 | 14.1 | 28.3 | 28.3 | 42.4 | 42.4 | 56.5 |
| Radiator Area (m2) | 8 | 15 | 24 | 48 | 48 | 72 | 72 | 96 |
| Steam Consumption (kg/h) | 7 | 15 | 20 | 40 | 40 | 60 | 60 | 80 |
| Electrical Heating Power (kw) | 6-9 | 6-9 | 15 | 30 | 30 | 45 | 45 | 60 |
| Fan Delivery (m2/h) | 3450 | 3450 | 3450 | 6900 | 6900 | 10350 | 10350 | 13800 |
| Fan Power (kw) | 0.45 | 0.45 | 0.45 | 0.45 × 2 | 0.45 × 2 | 0.45 × 3 | 0.45 × 3 | 0.45 × 4 |
| Temperature Difference (ºC) | ± 1 | ± 1 | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 |
| Outline Dimension (mm) (W × D × H) | 1400 × 1200 × 2000 | 1400 × 1200 × 2000 | 2300 × 1200 × 2000 | 2300 × 2200 × 2000 | 4280 × 1200 × 2270 | 2260 × 3200 × 2000 | 3240 × 2200 × 2000 | 4280 × 2200 × 2270 |
| Auxiliary Drying Cart (sets) | 0 | 1 | 2 | 4 | 4 | 6 | 6 | 8 |
| Auxiliary Drying Tray (pcs) | 16 | 24 | 48 | 96 | 96 | 144 | 144 | 192 |
| Total Weight (kg) | 500 | 820 | 1580 | 1800 | 1880 | 2100 | 2210 | 2800 |
