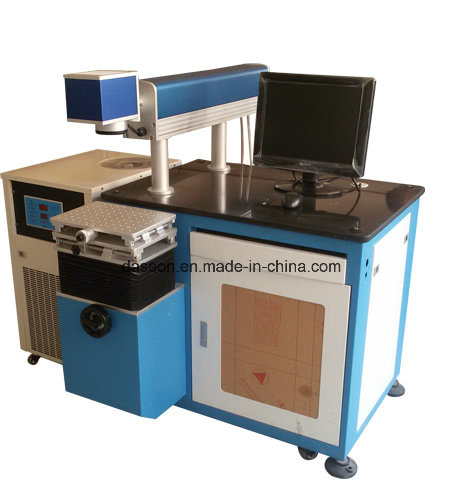

Dongguan Daseon Industry Co., Ltd. >> Semiconductor Laser Marking Machine with High Standard Semiconductor Lasers, Acousto-Optic Q Head, High Speed Scanning Mirror

Semiconductor Laser Marking Machine with High Standard Semiconductor Lasers, Acousto-Optic Q Head, High Speed Scanning Mirror

Semiconductor Laser Marking Machine with High Standard Semiconductor Lasers, Acousto-Optic Q Head, High Speed Scanning Mirror
Price: Negotiableset
Min Order: 1set
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: DP50w/75w

Product Description

Product application materials
This kind of machine widely used in mobile phone keypad, plastic, electronic components, integrated circuits (IC), electrical appliances,
tele-communication products, signage, sanitary ware, hardware, tools, accessories, precision instruments, eyeglasses and clocks, jewelry, car
accessories, bag buckles, knives, locks, PVC tubing, stainless steel products, medical equipment and other industries.Applicable to metals, alloys,and vapor, ABS, epoxy resins, inks, etc.
Product features

★Use high standard semiconductor lasers, acousto-optic Q head, high speed scanning mirror.

★Has a small spot,  with high marking precision and stable spot, marking effect is easy to adjust ,
with high marking speed, and low power consumption and cost.

★Laser: adopt high-performance diode laser, with good beam quality and extraction mode,
 laser power stability and life expectancy can up to 13,000 hours.

★Software supports automatic code, serial number, lot number, date, bar code and two-dimensional code marking, with graphic anti-play features.
Technical-parameters

ModelDP50wDP75W
Max laser power50W75W
laser wavelength1064nm1064nm
Beam quality<6 <6
Laser frequency  ≤20KHz  ≤20KHz
Marking  area ≤300x300mm≤300x300mm
Marking  speed100mm*100mm100mm*100mm
Host dimension870mmx850mmx1320mm870mmx850mmx1320mm
Optional marking area70mm*70mm/150mm*150mm70mm*70mm/150mm*150mm
Electricity demand220V ±10% /30A220V ±10% /30A
Engraving depth≤2mm≤2mm
Engraving line width≤4000mm/s≤4000mm/s
Min line width0.015mm0.015mm
Minimum character0.2mm0.2mm
Re-precision±0.0025mm±0.0025mm
Machine power≤1.5kw≤1.5kw
Cooling methodWater coolingWater cooling
