Semiconductor Negative Regulator Mosfet of Electronic Component

Name: Semiconductor Negative Regulator Mosfet of Electronic Component
Brand: all-electronics-online.com
SKU: 796679955
Availability: InStock
Rating: 4.5 (55 reviews)

Price:	US $ 0.4/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

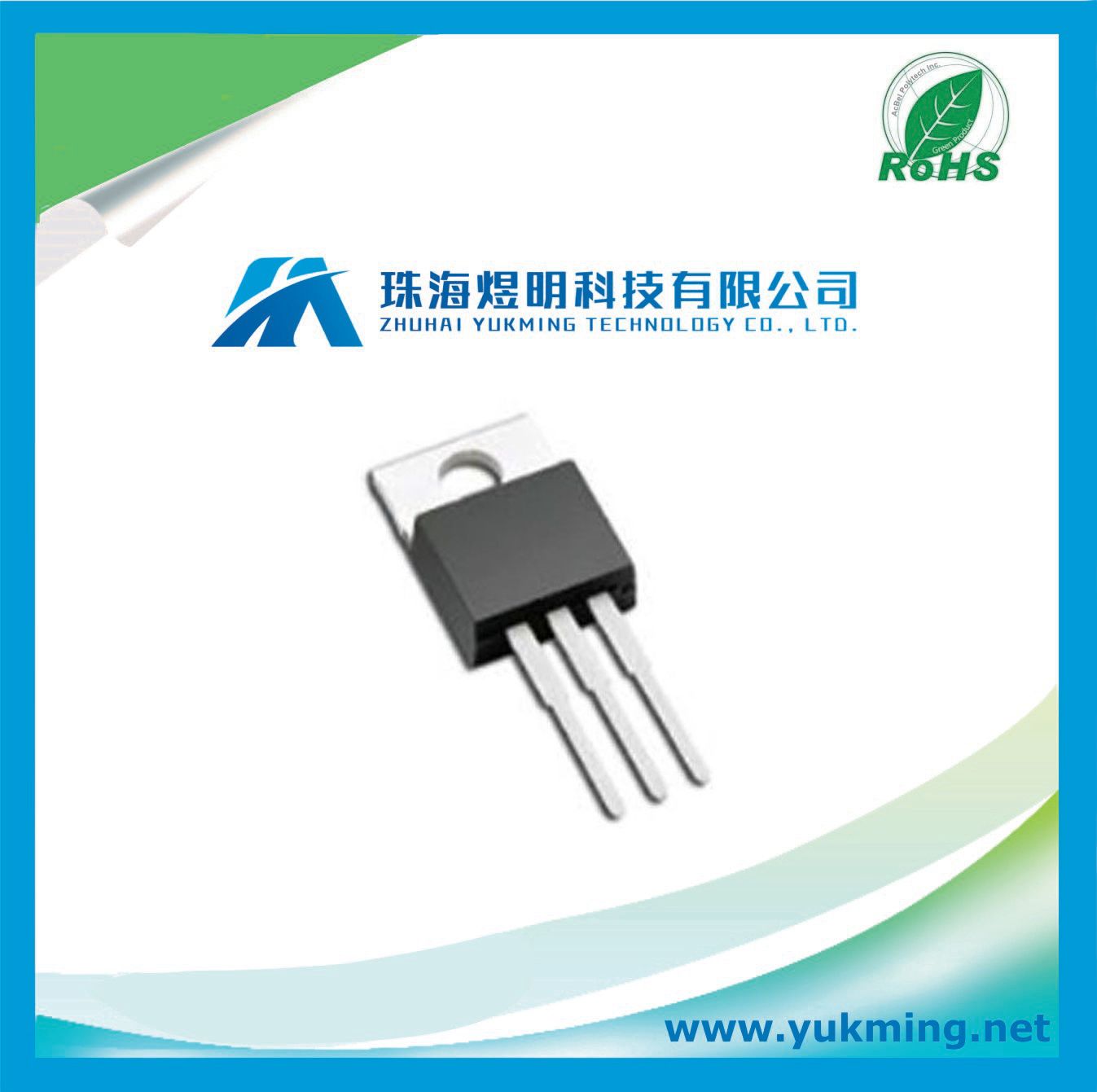

Prod Model:	LM7915CT
Package:	to-220-3

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Fairchild Semiconductor

PRODUCT CATEGORY
Linear Regulator

DESCRIPTION
Standard Regulator Neg -15V 2.2A 3-Pin(3+Tab) TO-220AB Rail

This standard LM7915CT linear regulator from Fairchild Semiconductor is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±4 %. Its typical dropout voltage at current is 2@1A V. This voltage regulation device's single output can produce a current up to 2.2(Typ) A. By working with a maximum input voltage of -35 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of -15 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 300mV and line regulation of 300mV. This product comes in rail packaging to keep individual parts separated and protected. This voltage regulation device has an operating temperature range of 0 °C to 125 °C. Its polarity is negative.

Features
• Output Current in Excess of 1 A
• Output Voltages of: -5 V, -6 V, -8 V, -9 V, -12 V, -15 V,
-18 V, -24 V
• Internal Thermal Overload Protection
• Short-Circuit Protection
• Output Transistor Safe Operating Area Compensation

Specifications
EU RoHS Compliant
Type Standard
Number of Outputs 1
Output Type Fixed
Output Voltage (V) -15
Polarity Negative
Maximum Output Current (A) 2.2(Typ)
Maximum Input Voltage (V) -35
Typical Dropout Voltage @ Current (V) 2@1A
Accuracy (%) ±4
Line Regulation 300mV
Load Regulation 300mV
Maximum Quiescent Current (mA) 6
Special Features Safe Area Protection|Short Circuit Protection|Thermal Protection
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 125
Packaging Rail
Mounting Through Hole

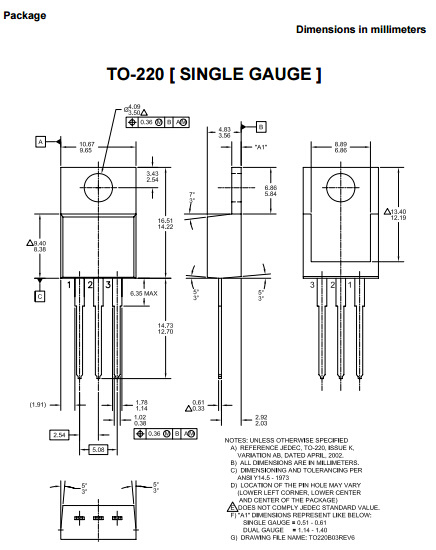

Package Height (mm) 9.4(Max)
Package Length (mm) 10.67(Max)
Package Width (mm) 4.83(Max)
PCB changed 3
Tab Tab
Standard Package Name TO-220
Supplier Package TO-220AB
Pin Count 3
Lead Shape Through Hole
