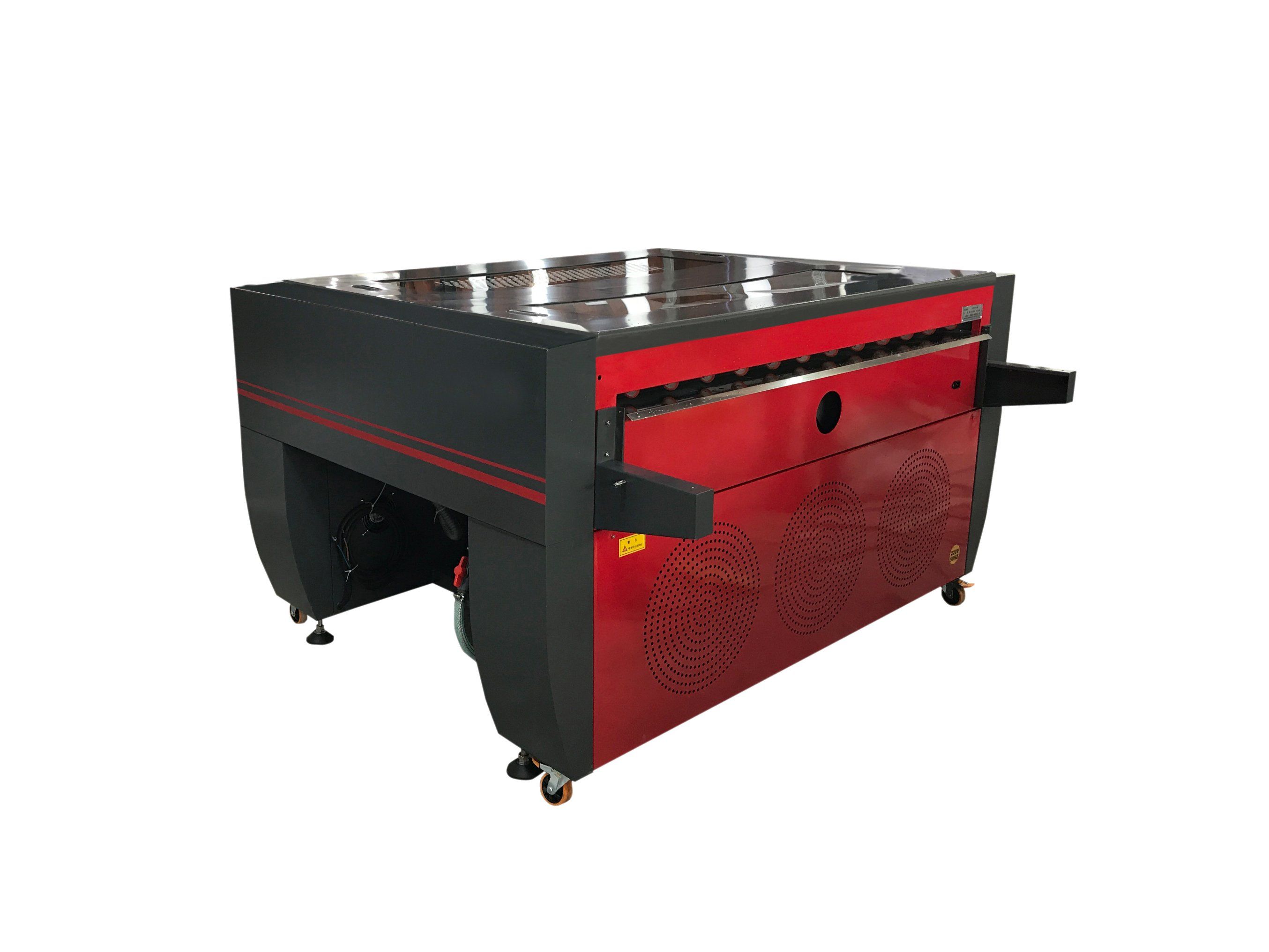

Semiconductor Offset Thermal CTP Plate Processor for Agfa

Prod Model:	CTP Plate Processor - EP1650 series
Plate Thickness(mm:	0.15-0.4
Power Supply:	AC 220V 3.5kw
Plate Size:	Width Max 1650mm, Length Min 430mm

Product Description

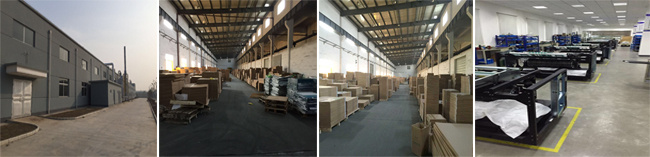

Company profile
 Taizhou Decai Printing Technology Co., Ltd. , located in Taixing High-tech Industrial Park, , is a professional corporation working
on production and sales of printing plates and pre-pressmachinery. We produce thermal CTP(double and single layered),   CTcP
and PS plates.  Our factory established in 1995.  And through over 20 years'development, we possess totally-enclosed and fully automaticweb-fed  printing  production lines,   which can enable us  to providesales and top service for customers from  all  over
theworld. Also with advanced R&D system, we produc highquality printing plates with competitive price. The factory has passed
the certification of GB/T19001-2000/ISO9001:2000 Quality Management System.


Characteristics
1.Accurate processing temperature control system
2. Precise processing speed control system
3. Automatic chemical and anti-oxidation replenishment system
4.Re-wash cycle, Gum cycle system
5. Processing and washing brush speed adjustable
6. Special anti-foaming design
7. Automated chemical fill

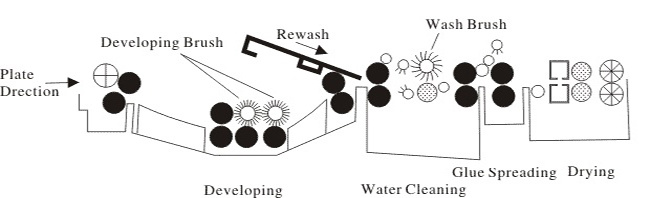

Structure diagram


Specifications

Plate type	Positive CTP/CTcP Plate
Plate size	Width max 1650mm, Length min 430mm
Plate thickness	0.15mm-0.40mm
Developing time adjust	12-65s
Developing temperature control	15-35ºC
Developer tank capacity	40-50L
Rinse tank capacity	>1L Recirculation
Drying temperature	30-65ºC
Brush speed setting	50-120 r/min
Power supply	220v(single phase)  50/60 hz 3.5kw
