Semiconductor Parts Tab Spot Welder

Name: Semiconductor Parts Tab Spot Welder
Brand: all-electronics-online.com
SKU: 789841605
Availability: InStock
Rating: 4.4 (150 reviews)

Price:	US $ 900-2000/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DP-1KW
Voltage:	220V
Welding Force:	Compressed Air (Pneumatic)

Product Description

Main Applications

Communication equipment: battery cans, battery prismatic tab, battery, mobile phone, mobile phone battery core, mobile hardware etc.
Electronic components: elec. capacitor, connecting cable, sensor, resistor, fuse, semiconductor devices, weld electronic foot to welding wire, weld the line to the terminal etc.
Digital products: notebook computer, digital camera, MP3, computer memory cell head etc.
Household appliances: socket, electric shielding shell, and so on.
Automotive: flash, relay, filament, and so on.
Electromechanical devices: contactor, breaker, motor, bulbs extraction lug etc.
Metal products: medical equipment, lamps and lanterns, badges, headdress, jewelry and so on.
Aerospace, precision metal parts, instruments, metal connectors, Honeycomb Tacking, induction device etc.

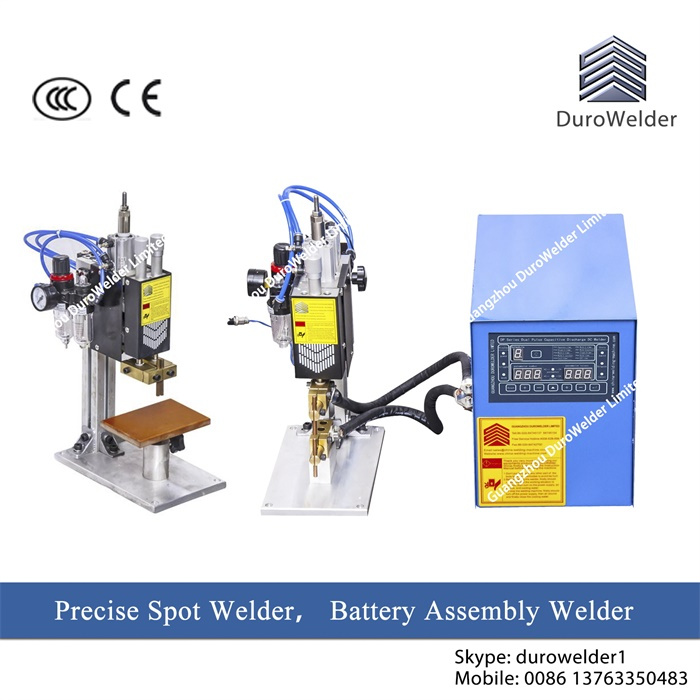

DP-1KW Precision Spot Welding System includes two main parts: Welding Power Source and Pneumatic Spot Welding Head. Power Source Part can work with other automatic welding tooling and fixture, the Welding Head can also work with other kind of welding power supply.

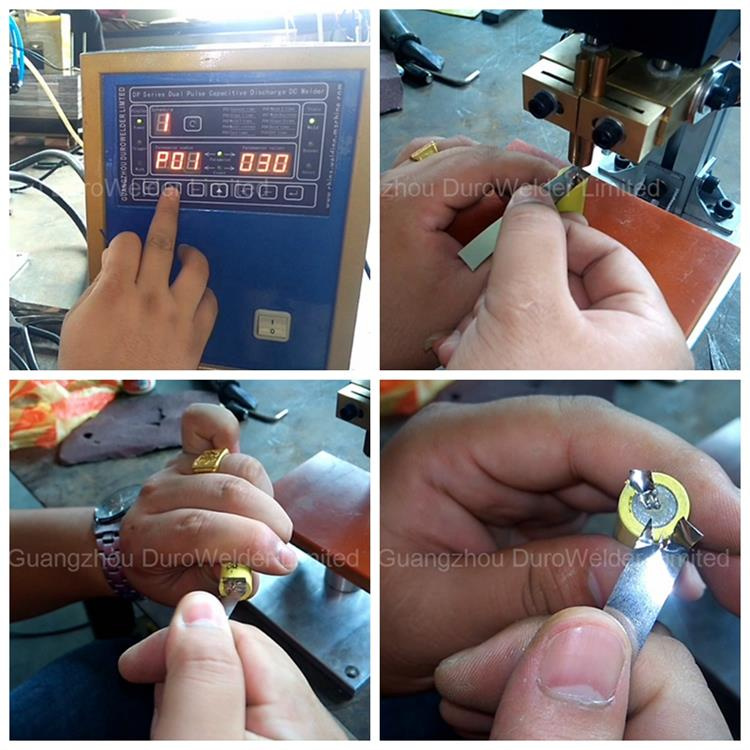

The welding power equipped with digital parameter control, can store 9 groups welding parameters for different work.

Using Pneumatic welding head, only one slight press the pedal switch, the machine can complete one welding process, welding force keeps the same for every work piece, hence, it can maintain a steady welding quality and easy for everyone to use.

Precision Welding Head, including two models: Type A: Upper and Lower Type Welding Electrode and Type B: Single Side Welding with Parallel Electrode. It has the spring precisely adjusted function, good dynamic, strong stability, convenient adjustment, can adjust up and down, left and right,4directions of regulation, make sure to get the best welding quality.

Parameters

Rated Input Voltage	220V-240V 50Hz/60Hz
Input Power	1-5 KVA
Welding Parameter Storage	9 Groups
Compress Air Pressure	0.5Mpa
Air Compressor need	>1HP
Welding Electrode Stroke	>20mm
Welding Throat Gap	60mm
Welding Arm Throat	80mm
