Semiconductors Diode for Phase Control Rectification

Name: Semiconductors Diode for Phase Control Rectification
Brand: all-electronics-online.com
SKU: 708908042
Availability: InStock
Rating: 4.6 (54 reviews)

Price:	US $ 5-28/Piece
Trade Terms:	FOB
Min Order:	6/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DF333-300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	400-3000V
Irrm:	50mA
If(AV):	300A
Vfm:	2.2A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor

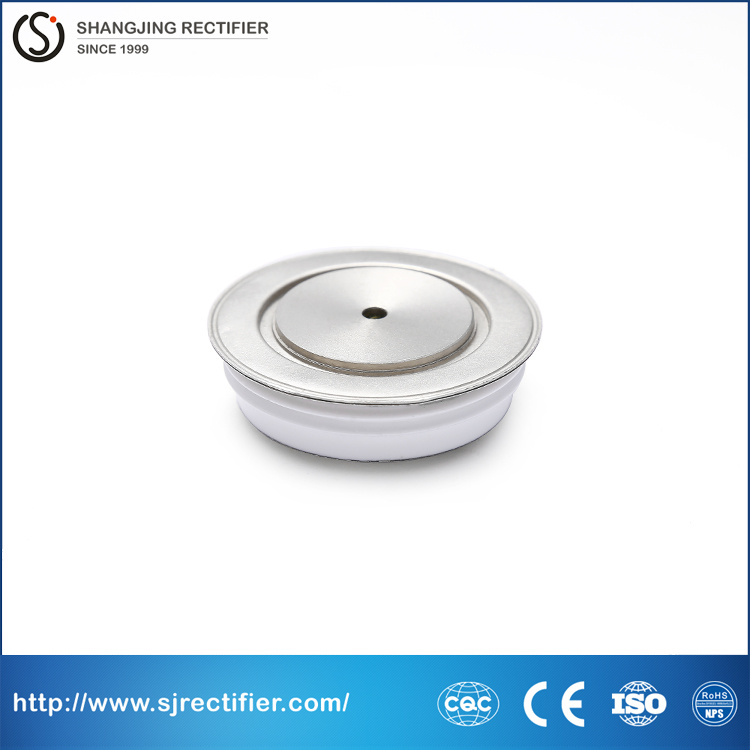

Package:	Ceramic Disc Type Seal
Application:	Motor Control, Phase Control Rectification
Model:	Df333-300
Batch Number:	2016+
Brand:	Shangjng

Product Description

Features
All diffuse techinics
Ceramic disc type seal
Middle trigger
Bi-facial cooled
High current

Typical Applications
Big power transformer
AC & DC motor control
AC & DC switch
Phase control rectification
Inverter
Welder

Explanation
IGT, VGT, IH are all TA=25° C test data, others are all TA=Tjm test data.
I2t=I2TSM× TW/2: TW=Half sine wave current, when at 50Hz, I2t=0.005I2TSM(A2S)
When at 60Hz, ITSM(8.3ms)=ITSM(10ms)× 1.066, Tj=Tjm I2t(8.3ms)=I2t(10ms)× 0.943, Tj=Tjm

Type	VRRM	IRRM	IF(AV)	IF(RMS)	IFSM	VFM/IFM	trr	Qrr	Tj	Rjc	M 2	Wt	Outline
			Tc55° C	Tc70° C	10ms	25° C	100° C	100° C
	V	mA	A	A	kA	V/A	MS	μ c	° C	° C/W	kN	kg
DF323-200	400-3000	50	200	400	3.0	3.10/628	≤ 2	70	-40 ~ +150	0.08	4.5	0.091	RC1 RC2
DF323-250	400-3000	50	250	500	4.5	1.85/785	≤ 3	70		0.08	4.5	0.067	RC1 RC2
DF333-300	400-3000	50	300	600	6.5	2.20/1250	≤ 3	100		0.04	10	0.180	RC3
DF333-400	400-3000	40	400	628	6.5	2.40/1256	≤ 3	100		0.04	10	0.180	RC3
DF343-500	400-3000	50	500	785	10.5	2.90/1570	≤ 3	120		0.035	15	0.240	RC4
DF343-800	400-3000	40	800	1600	12.5	2.70/2500	≤ 4	130		0.035	15	0.240
DF343-1000	400-3000	40	1000	2000	14.5	2.20/3140	≤ 4	150		0035	15	0.240
DF353-800	400-3000	50	800	1600	9.5	3.40/2500	≤ 4	130		0.02	24	0.550	RC6
DF353-1000	400-3000	100	1000	2000	16.0	3.10/2512	≤ 4	150		0.02	24	0.550	RC6
