| Prod Model: |
HW-MJ55 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CDS Photoresistor: |
Ldr |
| Size: |
5mm |
| Max.Voltage: |
150V |
| Rated Power: |
100MW |
| Max Power Consurrption: |
100MW |
| Environmental Temperature: |
-30~+70 |
| Spec Trum Peak Value: |
540nm--560nm |
| Lightresistance: |
5-200k |
| Dark Resistance: |
0.6-15m |
| Responsetime: |
30s |
| Resistance: |
Sensitive Resistor |
| Installation: |
DIP Resistor |
| Material: |
Ceramic and Metal |
| Package Type: |
Throught Hole |
| Type: |
Photoresistor |
| Function For Resistance: |
CDS Photoresistor |
| Application: |
Optical Control Field |
| Brand: |
OEM |
Product Description

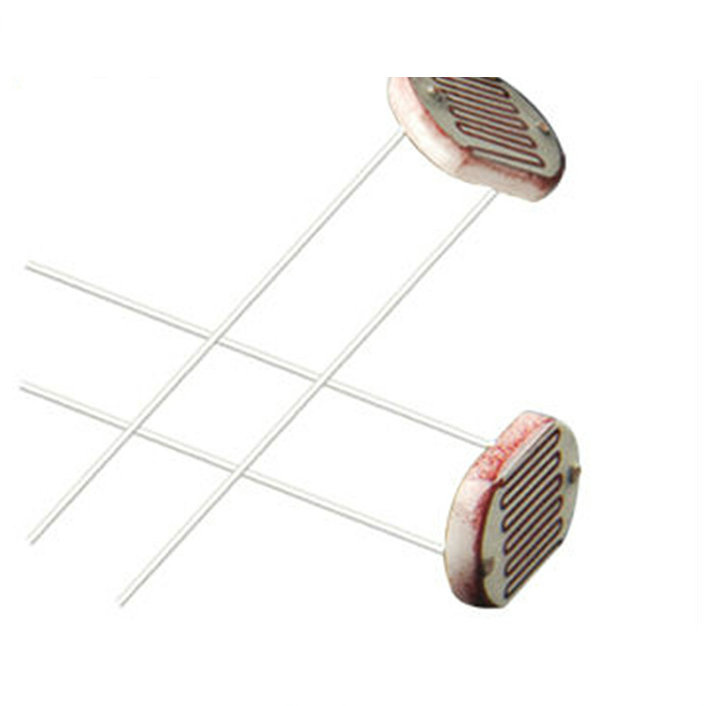

Sensitive 5mm CDS/Ldr Photoresistor (HW-MJ55 series) cds supplier in China
Specifications
Good reliability Small volume
High sensitivity
Fast response
Good price
Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminate area based on this characteristic.
Performances and Features
Coated with epoxy
Good Reliability
High Sensitivity
Small Volume
Fast Response
Good Spectrum Characteristic
Applications
- Camera Automation
- Indoor Sunlight Control
- Industrial Control
- Optical Lamp
- Optical Control Music IC
- Optical Control Switch
- Photoelectric Control
- Annunciator
- Electronic toy
- Electronic Detector
-Switch
-Light control
-Light control lamp
-Photoelectric control
-Camera automatic photometry
Technical parameter for 5mm photocell sensor
Specification | Type |
Max
Voltage (VDC) |
Max
power (mw) |
Environmental
temperature |
Spectrum
peak value (nm) |
φ5
series | MJ5516 | 150 | 90 | -30~+70°C | 540 |
| MJ5517 | 150 | 100 | -30~+70°C | 540 |
| MJ5528 | 150 | 100 | -30~+70°C | 540 |
| MJ5537 | 150 | 100 | -30~+70°C | 540 |
| MJ5539 | 150 | 100 | -30~+70°C | 540 |
| MJ5549 | 150 | 100 | -30~+70°C | 540 |
| MJ5606 | 150 | 100 | -30~+70°C | 560 |
| MJ5616 | 150 | 100 | -30~+70°C | 560 |
| MJ5617 | 150 | 100 | -30~+70°C | 560 |
| MJ5628 | 150 | 100 | -30~+70°C | 560 |
| MJ5637 | 150 | 100 | -30~+70°C | 560 |
| MJ5639 | 150 | 100 | -30~+70°C | 560 |
| MJ5649 | 150 | 100 | -30~+70°C | 560 |
Specification |
Light
resistance
(10Lux)
(KΩ) |
Dark
resistance
(MΩ) |
r100/10 |
Response time
(ms) |
Illuminance
resistance
characteristic
|
| Increase | Decrease |
φ5
series | 5-10 | 0.6 | 0.5 | 30 | 30 | 2 |
| 10-20 | 1 | 0.6 | 30 | 30 | 3 |
| 20-30 | 2 | 0.6 | 30 | 30 | 4 |
| 30-50 | 3 | 0.7 | 30 | 30 | 4 |
| 50-100 | 5 | 0.8 | 30 | 30 | 5 |
| 100-200 | 10 | 0.9 | 30 | 30 | 6 |
| 4-7 | 0.5 | 0.5 | 30 | 30 | 2 |
| 5-10 | 0.8 | 0.6 | 30 | 30 | 3 |
| 10-20 | 2 | 0.6 | 30 | 30 | 4 |
| 20-30 | 3 | 0.7 | 30 | 30 | 4 |
| 30-50 | 4 | 0.8 | 30 | 30 | 6 |
| 50-100 | 8 | 0.9 | 30 | 30 | 6 |
| 100-200 | 15 | 0.95 | 30 | 30 | 6 |
