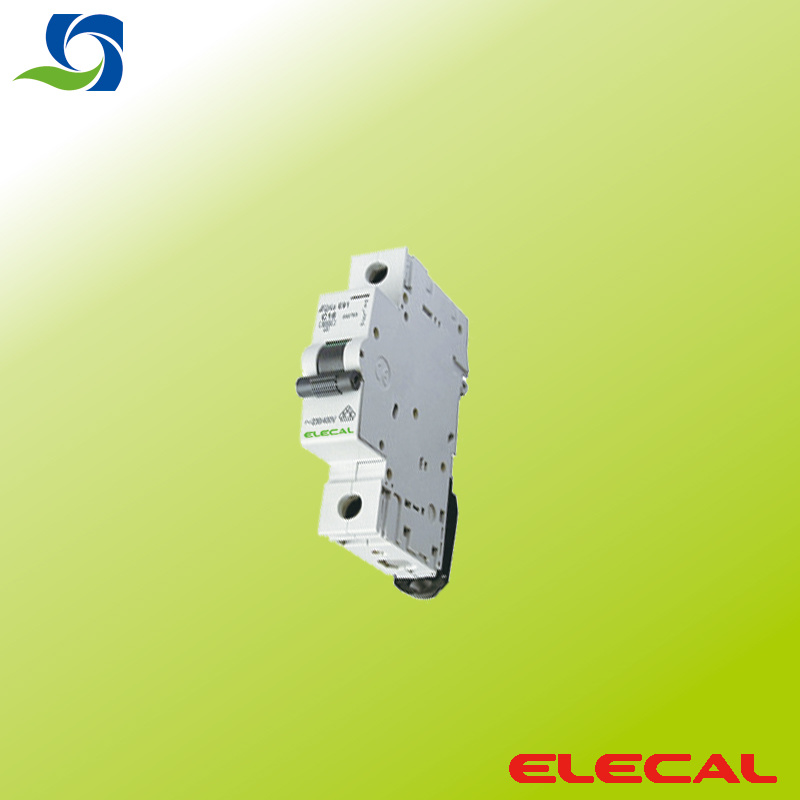

Sep91 Miniature Circuit Breaker

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	CE

Product Description

Aplication
SEP91 series circuit breaker is used in lighting distribuition system or motor idstribution system for protection overload and short circuit in the system. The product has safety terminal, which is easy wiring, no wrong fixing and protection degree IP20. It has pozidriv and slot screw head, torque up to 4.5N.M. Terminal side for fork busbar is isolated between the poles. MCB's and RCCB's can be connected with PIN type busbar at the terminals. MCB's and RCCB's can be connected with PIN type busbar at the botton terminals, with easy DIN-rail extraction. MCB's and RCCB's can be connected with fork type busbar at the bottom terminals, with easy DIN-rail extraction. Auxiliary contacts can be added on the left hand side of the MCB.

Specification

Thermal setting In 2-40A Rated voltage AC Un 240/415V Minimum operating voltage Ub min 12V Tripping characteristics B-C Selectivity class 3 Mechanical/electrical endurance 20000/10000 Tropicalisation acc. to IEC 60068-2 95%RH at 55oC Terminal capacity flexible/rigid cable 25-35 mm2 Poles 1,2,3,4 Weight 0.12kg Thermal operating limit In 1.13-1.45 Magnetic operating In   B: 3-5 C: 5-10
