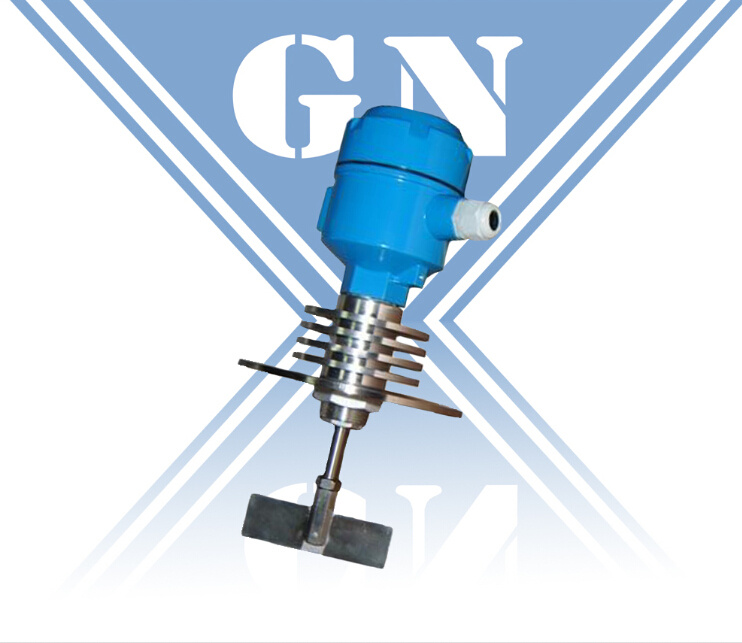

Series Break-Down Level Switch (CX-ZXK-XBD)

Prod Model:	CX-ZXK-XBD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Grain,Cement,Sand
Blade Rotate Speed:	1r/M
Medium Density:	0.5g/cm3(Ordinary Paddle)
Sensitivity:	Five Spans Adjustable
Ambient Temp:	-10-+80c
Power Supply:	AC220V,50/60Hz or DC24V
Standard:	Standard
Certification:	CE
Principle:	Capacitive

Product Description

Brief introduction

Widely used in modern industry production line with warehouse section
It is used to monitor or control the level of powder and grain material in the open container
Advanced technology, reasonable structure, reliable performance, easy maintenance, best cost performance

Main features
1.Anti-rust, no pollution, anti-humid, anti-dust etc. Both in foodstuff equipment and heavy-dust likes environments can be used for its most part exposed are made of stainless steel or aluminum alloy.
2.It can affectedly avoid the damage of motor and decelerator made by misusage or non-normal outside force.
3.For apply to different specific weight of materials, user can choose any shape and specification of test board. In order to user's convenient, the machine core is set five devices for adjusting sensing.
4.Adopt cooler part, so it can use in the material environment which is ≤300ºC (which can not be done by the capacitance, tuning fork ultrasonic level detecting device)

Main parameters
CX-ZXK-XBD-1"
medium:grain,cement,sand
application:upper,lower limit measurement
blade rotate speed:1r/m
Medium Density:≥0.5g/cm3(Ordinary paddle)
Sensitivity:Five spans adjustable(mechanism)
Ambient Temp.:-10-+80C
power supply:AC220V,50/60Hz or Dc24v
output:switch signal
Contact Capacity:Ac220V 3A
Consumption:<3W
Material Temp:-10-+80C
rod length:100mm
flange material:carbon steelDN50
paddle material:SS304


CX-ZXK-XBD-F-80

medium:grain,cement,sand
application:upper,lower limit measurement
blade rotate speed:1r/m
Medium Density:≥0.5g/cm3(bigger paddle)
Sensitivity:Five spans adjustable(mechanism)
Ambient Temp.:-10-+80C
power supply:AC220V,50/60Hz or Dc24v
output:switch signal
Contact Capacity:Ac220V 3A
Consumption:<3W
Material Temp:-10-+80C
rod length:100mm
flange material:carbon steelDN50
paddle material:SS304

CX-ZXK-XBD-F-300

medium:grain,cement,sand
application:upper,lower limit measurement
blade rotate speed:1r/m
Medium Density:≥0.5g/cm3(bigger paddle)
Sensitivity:Five spans adjustable(mechanism)
Ambient Temp.:-10-+80C
power supply:AC220V,50/60Hz or Dc24v
output:switch signal
Contact Capacity:Ac220V 3A
Consumption:<3W
Material Temp:-10-+300C
rod length:100mm
flange material:carbon steelDN50
paddle material:SS304

CX-ZXK-XBD-F-R

medium:grain,cement,sand
application:upper,lower limit measurement
blade rotate speed:1r/m
Medium Density:≥0.5g/cm3(bigger paddle)
Sensitivity:Five spans adjustable(mechanism)
Ambient Temp.:-10-+80C
power supply:AC220V,50/60Hz or Dc24v
output:switch signal
Contact Capacity:Ac220V 3A
Consumption:<3W
Material Temp:-10-+600C;Contain high temperature radiator
rod length:100mm
flange material:carbon steelDN50
paddle material:SS304

Principle
      The series instrument is adopted micro-motor to bring test board rotation at speed of 1 or 2.5r/m by speed-down. When the material level is tested increase stopping tested board rotation, test actuator will start to rotate moving around  main axis .this moving will first trigger a micro-switch to action send out a material signal ,another micro-switch will  action as follow to cut off micro-motor power to stop running. Only level is not change, status will keep it thereafter.
     When level is down test board is resume, test actuator will return to a original status by spring drawing. firstly a micro-switch actions getting power on to bring rotate, then another micro-switch actions sending out a non-material signal, only there is no material to stop test board rotation, status will keep it thereafter.
