Series Level Controller (CX-RL-RF)

Name: Series Level Controller (CX-RL-RF)
Brand: all-electronics-online.com
SKU: 749730245
Availability: InStock
Rating: 4.9 (108 reviews)

Price:	US $ 775/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CX-RL-RF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Iquids, Slurries and Solids.
Range:	0ptional
Power Supply:	24VDC; 220VAC
Relative Humidity:	<=85%
Output Signal:	Two Groups of Normally-Opened and Normally-Closed
Contact Capability:	AC220V,5A; DC24V,3A
Environment Temperature:	-40~+60c
Medium Temperature:	-180c~+500c
Time Delay:	0.2s(0.2~30s Adjustable)
Protection:	IP65

Product Description

CX-RL-RF admittance level meter
Brief introduction:
1.Widely be applied to detect the liquid with adhesiveness, solid grain, mill dust,
other compounding slurry, etc. in the storage bin, silo or other container. It can also be used
in measuring the interface between two different liquids, e.g. oil -water boundary.

2.It can be widely applied in the industry field such as petroleum, chemical, metallurgy,
electric power, medicine, foodstuff, paper-making, building material etc.

3.The controller can be used with PLC programmable controller or DCS control system
to implement the automatic detection and automatic control in process.

Main features:
The characteristic of CX-RL-RF series level controller is by

Simple and quick calibration, stable performance,
Strong versatility to all kinds of model
Easy mounting, beautiful outline and so on.

Main parameters

Power Supply	24VDC; 220VAC
Relative Humidity	≤85%
Output Signal	Two groups of normally-opened and normally-closed contact
Contact capability	AC220V,5A; DC24V,3A
Environment Temperature	-40ºC~+60ºC
Medium Temperature	-180ºC~+500ºC
Time Delay	0.2S(0.2~30S adjustable)
Protection	IP65
Probe Material	316 SS, Teflon, High temperature plastic, ceramics
Explosive-proof	ExdIIBT4
Connection	3/4″NPT thread,3/4″pipe thread;flange (alternative);1 – 1/ 2″pipe thread

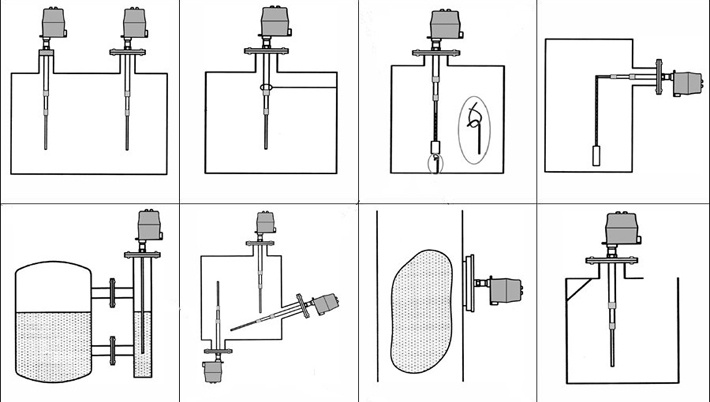

Mounting	Top-mounting, Side-mounting

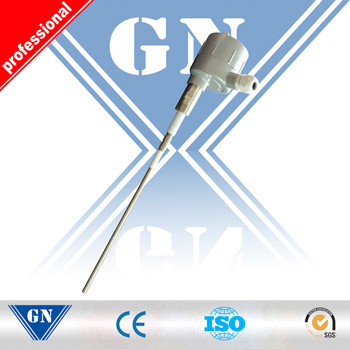

Production picture:

Certificates:

After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
