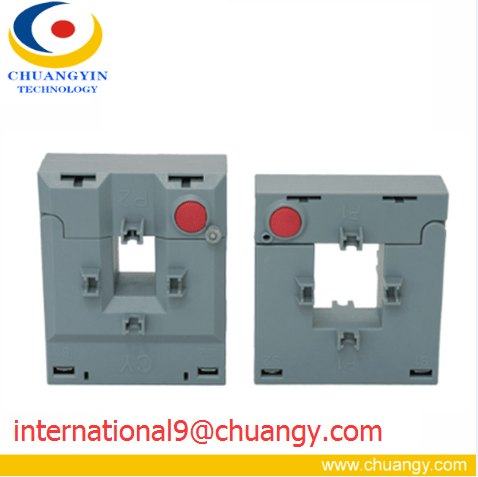

Series Split Core/Opencurrent Transformer Factory Ce

Name: Series Split Core/Opencurrent Transformer Factory Ce
Brand: all-electronics-online.com
SKU: 800105395
Availability: InStock
Rating: 4.5 (147 reviews)

Price:	US $ 65-80/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-KCT02-015
Accuracy:	0.5
Insulation Class:	Cat E
Primary Current:	100-6000A
Customized:	Customized
Secondary Current:	5A or 1A
Split Core Current Transformer:	Kct02 Series
Split Core Current Transformer (Kct02 Se:	Split Core Current Transformers (Kct02 Series)
Application:	Rectifier
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

95% customers come back to us for repeat orders
Sample Ready in 3-7 days

Features:
High quality comprensive measurements
Available in a wide range of transformer ratings
Accuracy up to Class 0.5
Foot or Busbar mounted

Typical Appication:
Switchgear
Energy Management Systems
Instrumentation Equipment
Split Core Current Transformers are designed for assembly to an existing electrical installation no need to dismantle the primary busbar or cables.

Dimension:

Data Model Number	A	B	C	D	E	F	G	H	I	J	k
CY-KCT02-223	20	30	50	89	110	34	47	40	32	52.5	67.5
CY-KCT02-258	50	80	78	114	145	32	32	32	33	52.5	67.5
CY-KCT02-288	80	80	108	144	145	32	32	32	33	52.5	67.5
CY-KCT02-812	80	120	108	144	185	32	32	32	33	52.5	67.5
CY-KCT02-816	80	160	120	184	245	52	47	52	38	61	76

Electrical Parameter

Data Model Number	IPN(A)	Isn(A)				Window	Weight ( kg)
Data Model Number	IPN(A)	Isn(A)	CL0.5	CL1	CL3	Window	Weight ( kg)
CY-KCT02-223	100	5/1	/	/	1.5	20*30	0.75
	150	5/1	/	/	2
	200	5/1	/	1.5	2.5
	250	5/1	/	2.5	3.75
	300	5/1	/	2.5	3.75
CY-KCT02-258	300	5/1	/	2.5	5	50*80	0.9
	400	5/1	2.5	3.75	5
	500	5/1	2.5	5	10
	600	5/1	2.5	5	10
	750	5/1	5	7.5	10
	800	5/1	5	7.5	10
CY-KCT02-288	800	5/1	5	7.5	10	80*80	1.25
	1000	5/1	5	10	15
	1200	5/1	5	10	15
Cy-KCT02-812	1200	5/1	7.5	10	15	80*120	1.25
	1500	5/1	10	15	20
	1600	5/1	10	15	20
CY-KCT02-816	2000	5/1	10	15	25	80*160	4.30
	2500	5/1	10	15	25
	3000	5/1	10	15	25
	4000	5/1	10	15	25
	5000	5/1	10	15	25
	6000	5/1	10	15	25

Note:
Please browse our website and download product catalogue for detailed information.
Pls contact me for much more information below:

SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD.
( CY GROUP )
Certification: KEMA, ISO9001, UL, SGS, CE.
( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )

Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd., Shenzhen High-Tech Zones, Nanshan, Shenzhen, China,
Post code: 518057
Tel: +86 0755-86000302/ 8600709
Fax: +86 0755-86000614
Web: www.chuangy.com

Ms.Becky Wang
Business Development Executive
Mob: +86 15889623648

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
