| Prod Model: |
gps car tracker tk103b |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
GPS Tracker |
| Feature: |
Oil Cut and Resume/Hardware Resetting |
| Material: |
Aluminum Alloy Quality Car GPS Tracker |
| Vehicle Tracking System: |
GSM/SMS GPRS |
| High Sensitive Vehicle Tracker: |
External GPS GSM Antennas |
| Tracking Way: |
SMS, GPRS Web Platform, Android Ios APP |
| Warranty Time: |
12 Months |
| Anti Theft Vehicle Alarms: |
Engine Shut, Acc/Door/Shock Alarm |
| GPS Accuracy: |
5meter |
Product Description
server software car gps tracker with google map real time tracking Tk103bModel: GPS103B
This tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Function Description*google maps gps car tracking system with remote controller gps tracker
*Work with dual sim/gsm card
*Support dual fuel sensor for fuel level monitor
*
Get location in real street/address name, send "address+pas google maps gps car tracking system with remote controller gps tracker sword to tracker.
*Location Based Service.
*Remote Engine-stop and Resume.
*Tracking function by timing and frequency*Authorized number added and deleted function
*Support hidden alarm and monitor function
*Geo-fence
*Door / ACC Alarm
*Movement alert.
*Over speed alarm.
*Power supply disconnection alarm.
*Low batttery alarm function
*Check the vehicle status
*Set up DOOR ALARM, ACC ALARM, SENSOR ALARM by remote control*Alarm without GSM network service
*Less GPRS traffic
*Automatic update positions of vehicle turns
*GPS blind area alarm
New Functions: 1. ACC working inform when track with unlimited times upon time interval
2. Decide how many times of alarm message
3. Calibration of fuel sensor
4. Built in Acceleration Sensor Alarm
Applying directions:Vehicle fleet/logistics/Vehicle rental
Specifications:
Content |
specifications |
DIM. |
83*54*26mm |
Weight |
120g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GSM/GPRS Module |
SIM900B |
GPS Module |
SIRF3 chip |
GPS Sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start time |
Cold status 45s
Warm status 35s
Hot status 1s |
Voltage of car power system |
12 V -24V
|
Backup battery |
Chargeable changeable 3.7V 800mAh Li-ion battery |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing |

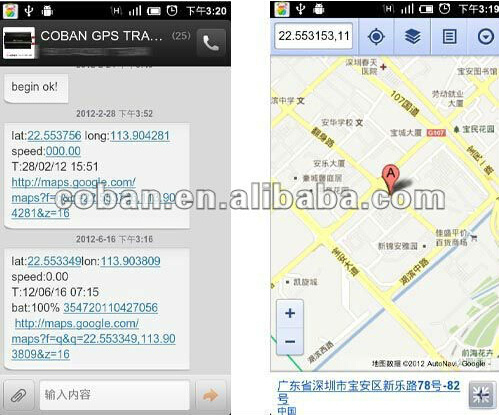

Multiple Tracking Ways:*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link.
*optional Android IOS app tracking
*Web based online tracking on PC at our server www.gpstrackerxy.com.
App tracking
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
