| Prod Model: |
SVC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
90-250V, 110-250V, 140-260V |
| Out Put: |
220V+/-3% |
| Over Voltage Protection: |
Yes |
| Over Current Protection: |
Yes |
| Over Load Protection: |
Can Be Option |
| High Temperature Protection: |
Can Be Option |
| Under Voltage Protection: |
Can Be Option |
| Display: |
LED, LCD, Analog Meter |
| Package: |
Export Carton |
| Certifications: |
CE / ISO9001 |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
SVC |
| Application Range: |
Home Use |
| Brand: |
Honle |
Product Description

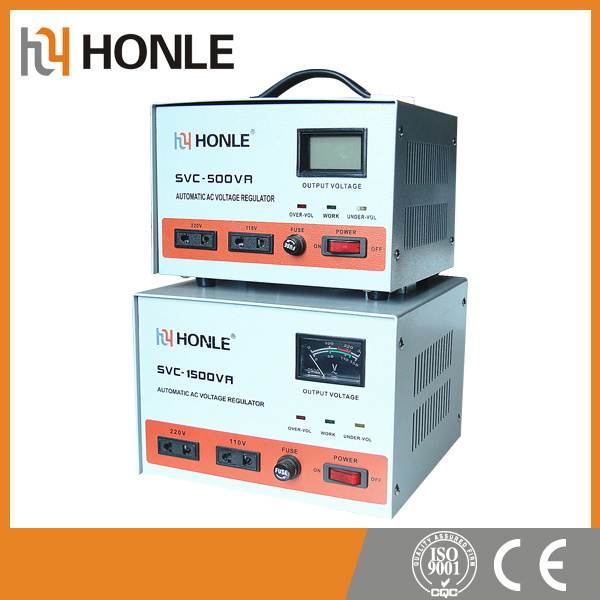

SVC single-phase high accuracy full automatic AC voltage stabilizers is made of the contact type self-coupling voltage regulator, servo motor, automatic control circuit and so on. When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the position of the carbon brush of the self-coupling voltage regulator so as to have the output voltage regulated to the rating and to obtain the steady state. This machine has advantages of small volume,light weight,undistorted waveform, high efficiency, reliable performance , and time-delay,over-voltage,etc.,the series of stabilizers of the general type, the ideal voltage stabilized sources which can be widely applied to any occasions requiring power to assure the normal operation of your power driven equipment.
| SVC SERVO MOTOR VOLTAGE STABILIZER_Technical Features |
|
|
| Input voltage | 90-250V, 110-250V, 140-260V(Can be option) |
|
| output voltage | 220V±3% |
| Phase | Single Phase |
| Frequency | 50Hz/60Hz |
| Adjusting time | <1S(When input voltage has a change of 10%) |
| Over voltage protection | YES(245±5V) |
| Over load protection | Optional |
| High temperature protection | Optional |
| Under voltage protectiom | Optional |
| Ambient temperature | (-5) to +40ºC |
| Temperature rise | <60ºC(full load) |
| Relative humidity | <90ºC |
| Wave form distortion | No wave form distortion |
| Insulation resistance | ≥2MΩ |
| Efficiency | 98% |
FAQ
1.Payment term
T/T 30% deposit and 70% blance agaisnt copy of B/L.
2.Delivering time
After get 30% deposit, take 25days for manufacturing. Depands on your purchasing quantity.
3.Why Honle?
After 15 years experience in manufacturing voltage stabilizers, voltage regulato, power inverter, we can guarantee the highly quality,3 time tesing before delivering. CE / ISO-9001 certifications.
