Set 3 Phase 4 Wire 1kv Power Cable
| Price: |
US $ 0.29-156/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
power cable |
| Product Name: |
Set 3 Phase 4 Wire 1kv Power Cable |
| Type Of Company: |
Manufacturer |
| Cable Type: |
with Armoring or Without Armoring |
| Number Of Cores: |
1, 2, 3, 4, 5, 2+1, 3+2 |
| Related Voltage: |
0.6/1kv; 8.7/15kv; 12/20kv; 21/35kv; 26/35kv |
| Product Model: |
VV, Vlv, Yjv, Yjlv, Yjv22, Yjlv22, Yjv32, Yjlv32.. |
| Standard: |
GB-T12706-2008; IEC 60502 |
| Certificate: |
ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc |
| Package: |
Wooden Drum, Steel Drum or as Your Requirement |
| Country Of Origin: |
Professional Manufacturer of 25 Years in China |
| Application: |
Telecommunication |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
RoHS |
| Model: |
Yjv32 Yjv22 |
| Brand: |
Rmjt |
Product Description
Set 3 phase 4 wire 1kv power cable
We can customize various types of cables in accordance with your requirements.
1.Construction of aluminium cable
Conductors shall be Round Stranded (Non-compacted or Compacted) or shaped, Class 2 as per IEC 60228. For smaller sizes up to and including 4 mm2, Solid Conductors, Class 1 to IEC 60228 can also be provided based on special request.
xlpe Insulation material and thickness shall be as per IEC 60502-1 and BS 6346. PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS 6346.
XLPE Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.
2.XLPE insulation of aluminium cable
Cu(Al)/XLPE/PVC electric power Cable
Cu(AL)/XLPE/SWA/PVC electric power Cable
Cu(AL)/XLPE/AWA/PVC electric power Cable
Cu(Al)/XLPE/STA/PVC electric power Cable
3.specification of aluminium cable specification
mm2 | O.D
mm | Reference
weight of
cable
kg/km | Recommended
Current Capacity (A) | Max D.C resistance
at20°C (Ω/km) |
| | | copper | aluminium | copper | aluminium | copper | aluminium |
| 1×25 | 22.3 | 697 | 544 | 190 | 145 | 0.727 | 1.200 |
| 1×35 | 23.3 | 818 | 604 | 230 | 180 | 0.524 | 0.868 |
| 1×50 | 24.6 | 966 | 677 | 275 | 215 | 0.387 | 0.641 |
| 1×70 | 26.3 | 1223 | 793 | 345 | 265 | 0.268 | 0.443 |
| 1×95 | 27.9 | 1495 | 910 | 415 | 325 | 0.193 | 0.320 |
| 1×120 | 29.5 | 1776 | 1036 | 480 | 375 | 0.153 | 0.253 |
| 1×150 | 31.1 | 2095 | 1169 | 550 | 425 | 0.124 | 0.206 |
| 1×185 | 32.9 | 2472 | 1330 | 635 | 490 | 0.0991 | 0.164 |
| 1×240 | 35.1 | 3023 | 1546 | 745 | 580 | 0.0754 | 0.125 |
| 1×300 | 37.5 | 3642 | 1796 | 860 | 665 | 0.0601 | 0.100 |
| 1×400 | 40.7 | 4741 | 2212 | 1010 | 785 | 0.047 | 0.078 |
| 3×25 | 44.4 | 2234 | 1773 | 145 | 110 | 0.727 | 1.200 |
| 3×35 | 46.7 | 2635 | 1990 | 175 | 130 | 0.524 | 0.868 |
| 3×50 | 49.7 | 3119 | 2248 | 205 | 160 | 0.387 | 0.641 |
| 3×70 | 53.5 | 3934 | 2638 | 255 | 195 | 0.268 | 0.443 |
| 3×95 | 57.2 | 4805 | 3041 | 310 | 235 | 0.193 | 0.320 |
| 3×120 | 60.4 | 5662 | 3431 | 350 | 275 | 0.153 | 0.253 |
| 3×150 | 64.0 | 6680 | 3888 | 400 | 310 | 0.124 | 0.206 |
| 3×185 | 67.6 | 7840 | 4397 | 455 | 355 | 0.0991 | 0.164 |
| 3×240 | 72.7 | 9618 | 5165 | 530 | 415 | 0.0754 | 0.125 |
| 3×300 | 77.8 | 11565 | 6000 | 605 | 475 | 0.0601 | 0.1000 |
| 3×400 | 84.6 | 15031 | 7406 | 711 | 561 | 0.047 | 0.0778 |

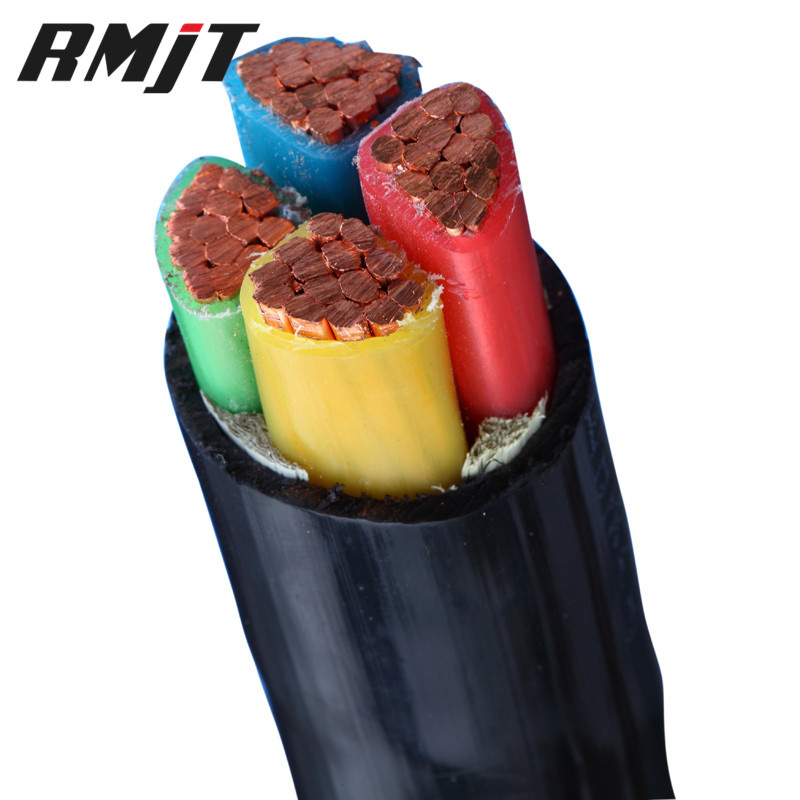

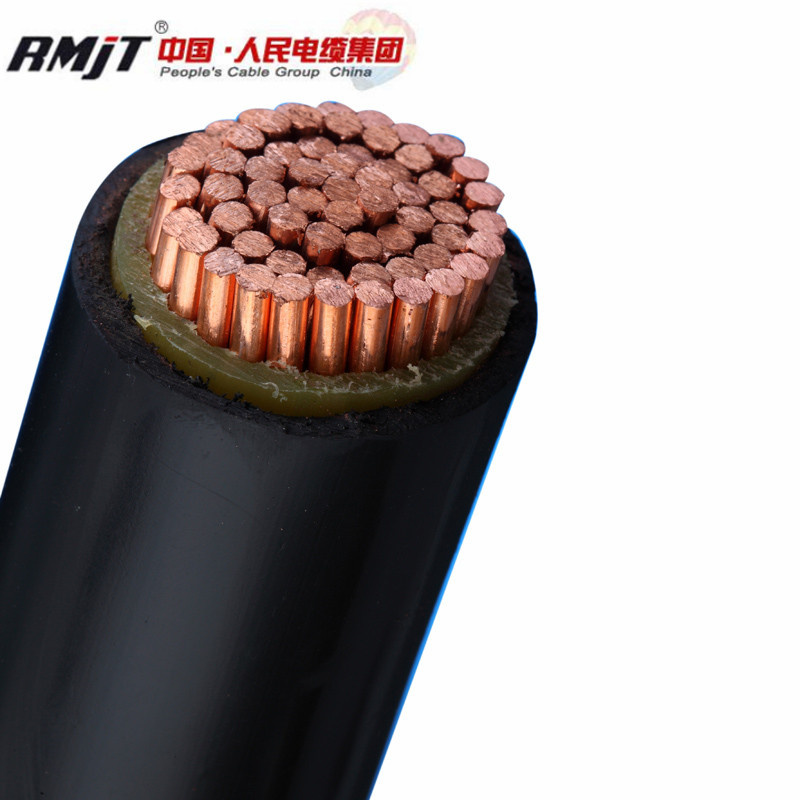

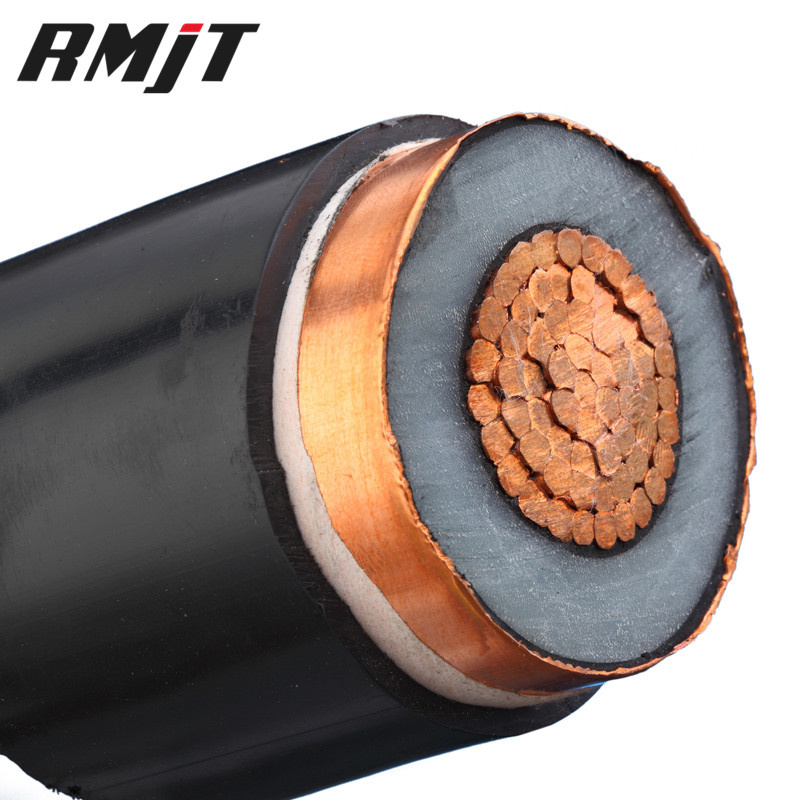

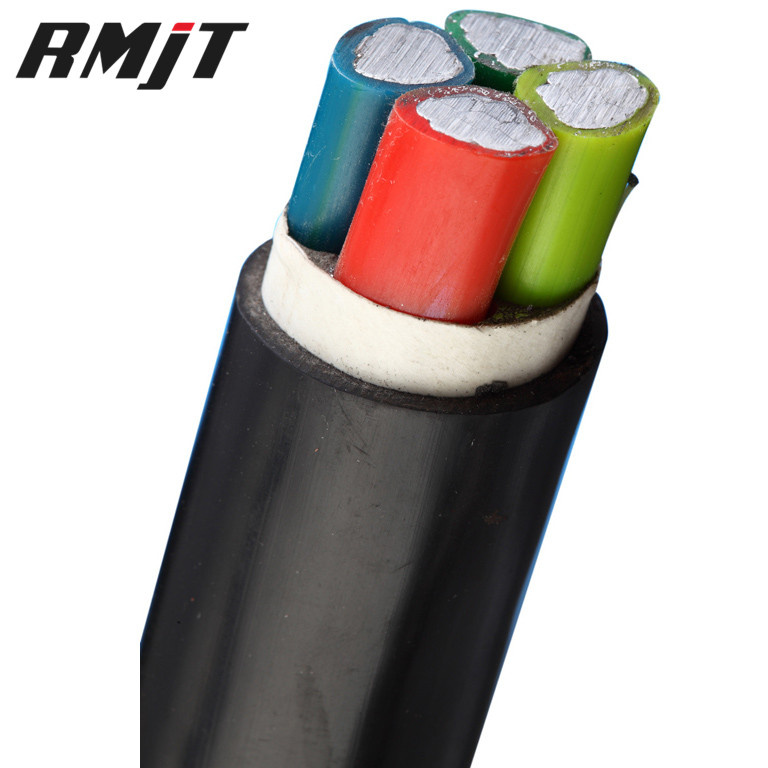

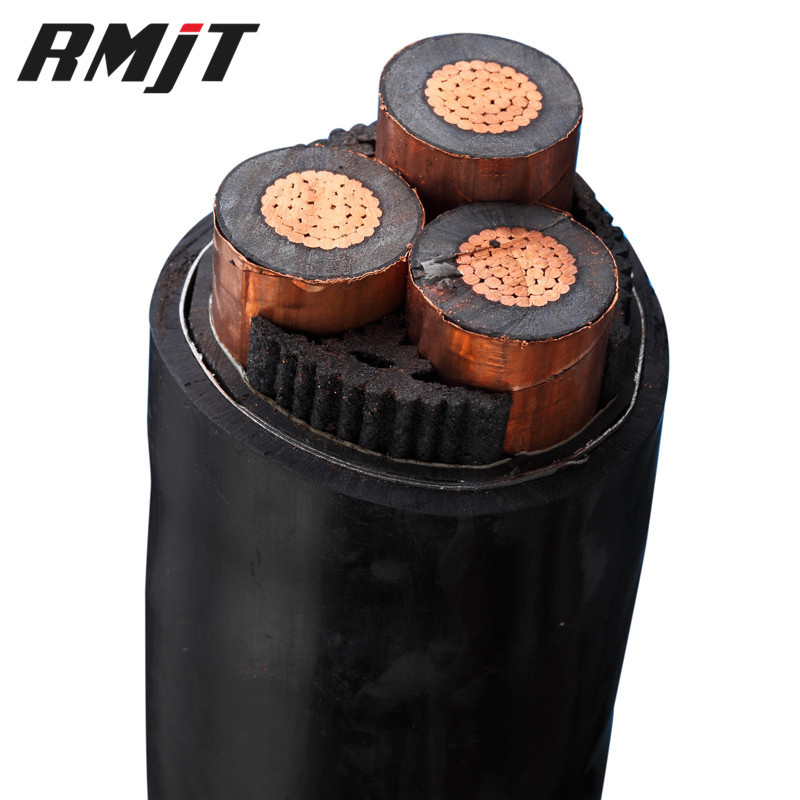

Product Pictures:
Packing and Delivery:

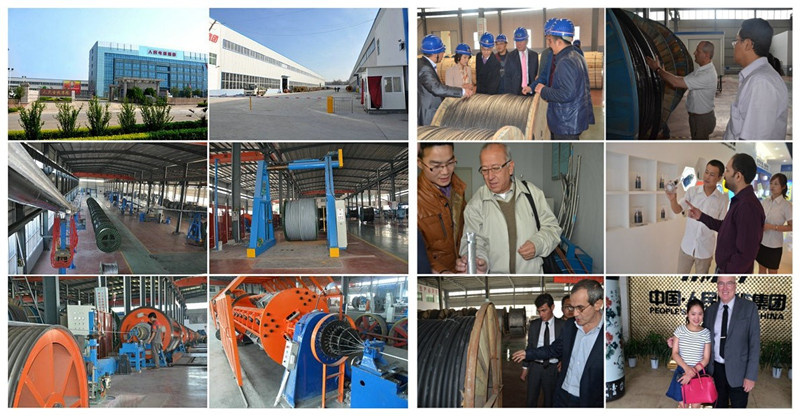

Our Company:
People's Cable Group Co., Ltd, a professional wires and cables manufacturer for 27 years in China. we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) etc. Standards Supported: ASTM, BS, CSA, IEC, DIN and GB etc.
1. Factory: 160000 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, ISO9001:2008;
4. Guarantee: 20 years;
5. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
FAQ:
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2)How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3)How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
(4)What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Contact Information:
Cara Zhang | General Manager | People's Cable Group
T: 86-371-55632836 | M: 86-18903869075
Fax: 86-371-55632837
Web: www.rmjt.com
If you have any questions, please contact me, I will reply you as soon as possible.
Welcome your inquiry.
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
