Product Description

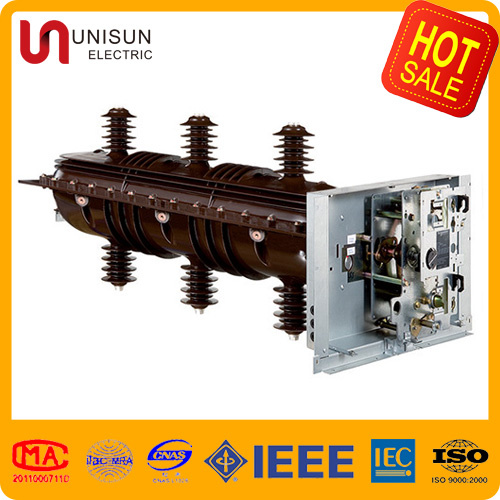

iUN-LBS SF6 36Kv Load Break Switch

MV Indoor switch disconnector

Description
UN-LBS is a switch or switch combination is suitable for compose air insulation ring main unit for up to 36 kV.
UN-LBS is designed for indoor applications, and meets requirements concerning human safety as well as ease of installation, operation and protection of the environment.

FeatureStandards
UN-LBS units meet following standard: IEC62271-103/ IEC 62271-102/ IEC 62271-200

Dimensions and weights
630 A switch - 630 A disconnector                                                 Weight: 50 kg

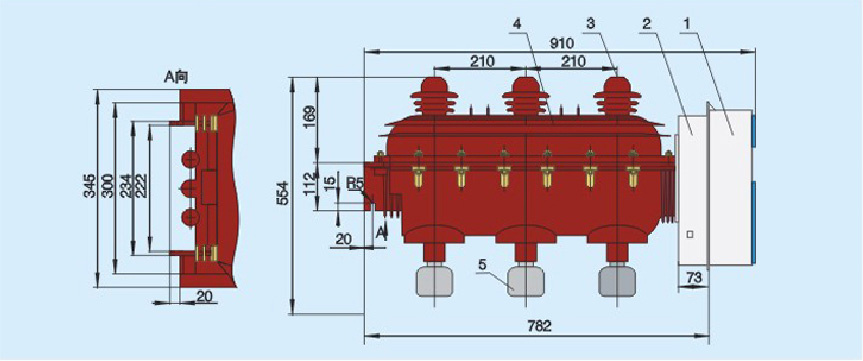

Below view                                      Side view                        Front view






36KV 630 A switch - 630 A disconnector (width 750 mm)                                     Weight: 75 kg

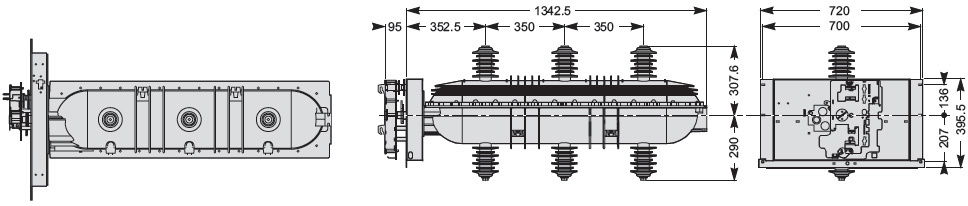

Below view                                   Side view                        Front view

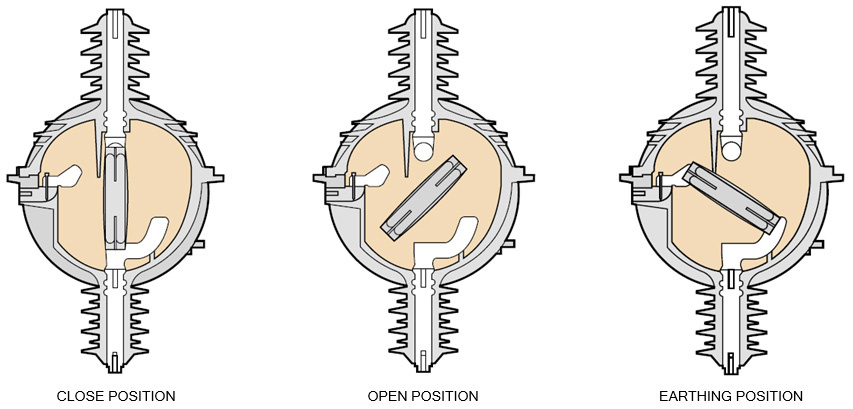

Switch or disconnector and earthing switch
Gas tightness
The three rotating contacts are placed in an enclosure filled with gas to a relative pressure of 0.4 bar (400 hPa) for UN-LBS 12-24 kV and 1 bar (1000 hPa) for UN-LBS 36 kV. It satisfies "sealed pressure system" requirements and seal tightness is always factory checked.

Operating safety

Main characteristics SF6 Load Break Switch
Rated voltage (kV)36
Insulation level
50 Hz, 1 minInsulation70
(kV rms)Isolation80
1.2/50μsInsulation170
(kV peak)Isolation195
Short-time withstand current
Short-time withstand current 25
(kA.1 s)20630A
 16630A
 12.5630A
Disconnector (kA/1 s)251250 A
20630 - 1250 A
16630 - 1250 A
12.5630 - 1250 A
Maximum breaking capacity
Transformer off load (A)16
Cables off load (A)50
Switch (A)630
Fuse-switch ** (kA)20
The making capacity is equal to 2.5 times the short-time withstand current.
(*) Equipped referring to installation guide, and setting up at an altitude below 1000 m.
(**) Depending on fuse characteristics, and on using of Schneider Electric Fusarc CF fuses.

Endurance
UnitsMechanical enduranceElectrical endurance
SwitchIEC62271-103                    IEC62271-103
Fuse-switch1000 operations                   100 breaks at In, p.f. = 0.7
 Class M1                          Class E3
DisconnectorIEC 62271-102
1000 operations
Temperatures
The products must be stored in a dry area free from dust and with limited temperature variationsl   for stocking: from -40°C to +70°C
l   for working: from -5°C to +40°C
l   other temperatures, consult us
