Sf6 7.2kv Load Break Switch
Price: |
US $ 100/Set |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
iUN-LBS |
Tag: |
Load Break Switch |
Type: |
High-voltage |
Structure: |
Three-column Disconnector |
Installation: |
Indoor High-voltage |
Operation: |
Electric |
Grounding: |
Single Ground |
Series: |
Three |
Run: |
Turn the Horizontal |
Switching Mode: |
Single Throw-in |
Certification: |
CE |
Brand: |
Unisun |
Product Description
iUN-LBS SF6 7.2Kv Load Break Switch
MV Indoor switch disconnector
DescriptionUN-LBS is a switch or switch combination is suitable for compose air insulation ring main unit for up to 36 kV.UN-LBS is designed for indoor applications, and meets requirements concerning human safety as well as ease of installation, operation and protection of the environment. Feature- Upgradability
- Compact
- Maintenance
- Easy installation
- Ease and safe to operate

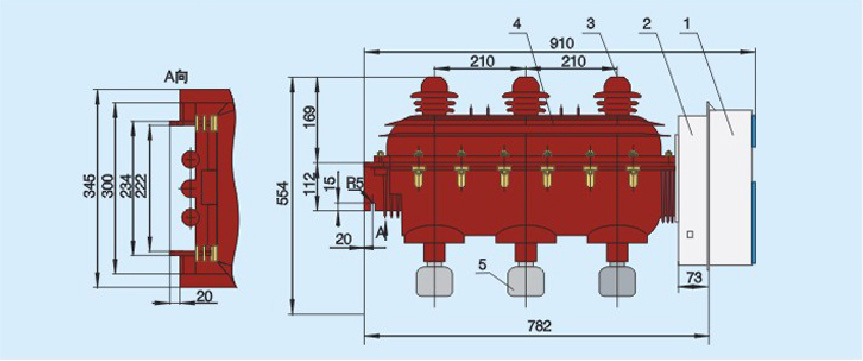

StandardsUN-LBS units meet following standard: IEC62271-103/ IEC 62271-102/ IEC 62271-200 Dimensions and weights630 A switch - 630 A disconnector Weight: 50 kgBelow view Side view Front view

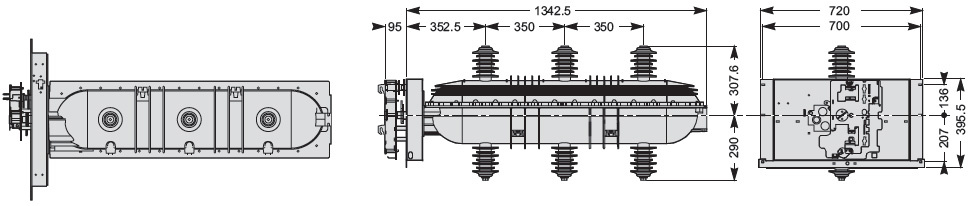

36KV 630 A switch - 630 A disconnector (width 750 mm) Weight: 75 kgBelow view Side view Front view
Switch or disconnector and earthing switchGas tightness
The three rotating contacts are placed in an enclosure filled with gas to a relative pressure of 0.4 bar (400 hPa) for UN-LBS 12-24 kV and 1 bar (1000 hPa) for UN-LBS 36 kV. It satisfies "sealed pressure system" requirements and seal tightness is always factory checked.Operating safety- The switch may be in one of three positions: "closed", "open", or "earthed", representing a natural interlocking system that prevents incorrect operation. Moving-contact rotation is driven by a fast-acting mechanism that is independent of the action of the operator.
- The device combines the breaking and disconnection functions.
- The earthing switch placed in the SF6 has a short-circuit making capacity, in compliance with standards.
- Any accidental over-pressures are eliminated by the opening of the safety membrane, in which case the gas is directed toward the back of the unit, away from the operator.

Main characteristics SF6 Load Break SwitchRated voltage (kV) | 7.2 |
Insulation level |
50 Hz, 1 min | Insulation | 20 |
(kV rms) | Isolation | 23 |
1.2/50μs | Insulation | 60 |
(kV peak) | Isolation | 70 |
Short-time withstand current |
Short-time withstand current | 25 | 630A |
(kA.1 s) | 20 | 630A |
| 16 | 630A |
| 12.5 | 630A |
Disconnector (kA/1 s) | 25 | 630 - 1250 A |
20 | 630 - 1250 A |
16 | 630 - 1250 A |
12.5 | 630 - 1250 A |
Maximum breaking capacity |
Transformer off load (A) | 16 |
Cables off load (A) | 31.5 |
Switch (A) | 630 |
Fuse-switch ** (kA) | 25 |
The making capacity is equal to 2.5 times the short-time withstand current.(*) Equipped referring to installation guide, and setting up at an altitude below 1000 m.(**) Depending on fuse characteristics, and on using of Schneider Electric Fusarc CF fuses.EnduranceUnits | Mechanical endurance | Electrical endurance |
Switch | IEC62271-103 | IEC62271-103 |
Fuse-switch | 1000 operations | 100 breaks at In, p.f. = 0.7 |
| Class M1 | Class E3 |
Disconnector | IEC 62271-102 |
1000 operations |
Temperatures |
The products must be stored in a dry area free from dust and with limited temperature variations | l for stocking: from -40°C to +70°C |
l for working: from -5°C to +40°C |
l other temperatures, consult us |
