Product Description
=Overview=
- High-performance data cable, application structured cabling, CCTV system, Alarm system, Telecom project etc.
- Can be used for voice, integrated service data network (ISDN)
- Long transmission distance,small transmission loss, wear resistance,resistance to pressure.
- Meet ANSI/EIA/TIA 568-B.2-1 requirements
- Fire protection -CMX
Application:
The wires are intended for voice, text, data, video, and image transmission.
10 GBASE-T ETHERNET
1000 BASE-Tx GIGABIT ETHERNET
10 BASE-T, 100 BASE-T FAST ETHERNET
100 VG-AnyLAN, 155/622 Mbps ATM
550 MHz Broadband Video
Their transmission characteristics are specified for frequencies up to 600MHz.
1. SPECIFICATION
1) CONDUCTOR
* Raw material of the conductor: solid bare copper
* Conductor Dia.: 0.585±0.003mm (23AWG)
2) INSULATION
* Raw material of the conductor: F-PE
* Quantity:4 twisted pairs
Blue/white-blue; Green/white-green;
Orange/white-green; Brown/white-brown;
* Insulation Dia. : 1.45±0.005mm
* Average thickness: 0.4325 mm
Minimum point thickness: 0.43mm
3) TWISTED PAIRS SCREEN: Aluminum foil
4) OVERALL SCREEN
* Raw material of the screen: 96/0.10mm TC wire braiding
* Coverage rate:≥40%
5) JACKET RIP CORD: Nylon thread
6) SHEATH
* Sheath material: LSZH or PVC
* Nominal Dia.: 7.5 ± 0.2mm
* Average thickness: 0.65mm
* Minimum point thickness: 0.55mm
2, Mechanical Properties
Conductor insulation material: halogen free Foam/Skin material
Cable jacket material: halogen-free, flame-retardant material
Application area: dray as well as humid rooms
Temperature (moved): 0°C to 50°C
Operating temperature: -20°C to +60°C
Min. bending radius for one-time bending: 4×O.D.
Min. bending radius during installation: 8×O.D.
3, Electrical properties
Loop impendence: 130 W/km
Highest impendence difference: 2%
Insulation resistance >5000 MW x km
Impendence Z0 at 1 500MHz: 100 W ± 15%
Impendence Z0 at 1 350MHz: 100 W ± 18%
Impendence Z0 at 1 600MHz: 100 W ± 25%
Surface transfer impendence: < 100 MW per Meter at 10MHz
Earthing symmetry db/BZL = 1000m > 46dB at 64kHz
Earthing symmetry db/BZL = 100m > 40dB at 1MHz
Earthing symmetry db/BZL = 100m > 20dB at 100MHz
Mutual capacitance: 43pF/m
Highest earthing-coupling: 0,001MHz: 1000 pF/km
Propagation speed at > 10MHz (NVP*c): 0,79c
Signal propagation delay >10MHz: 4,2ns/m
Skew: <25ns/100m

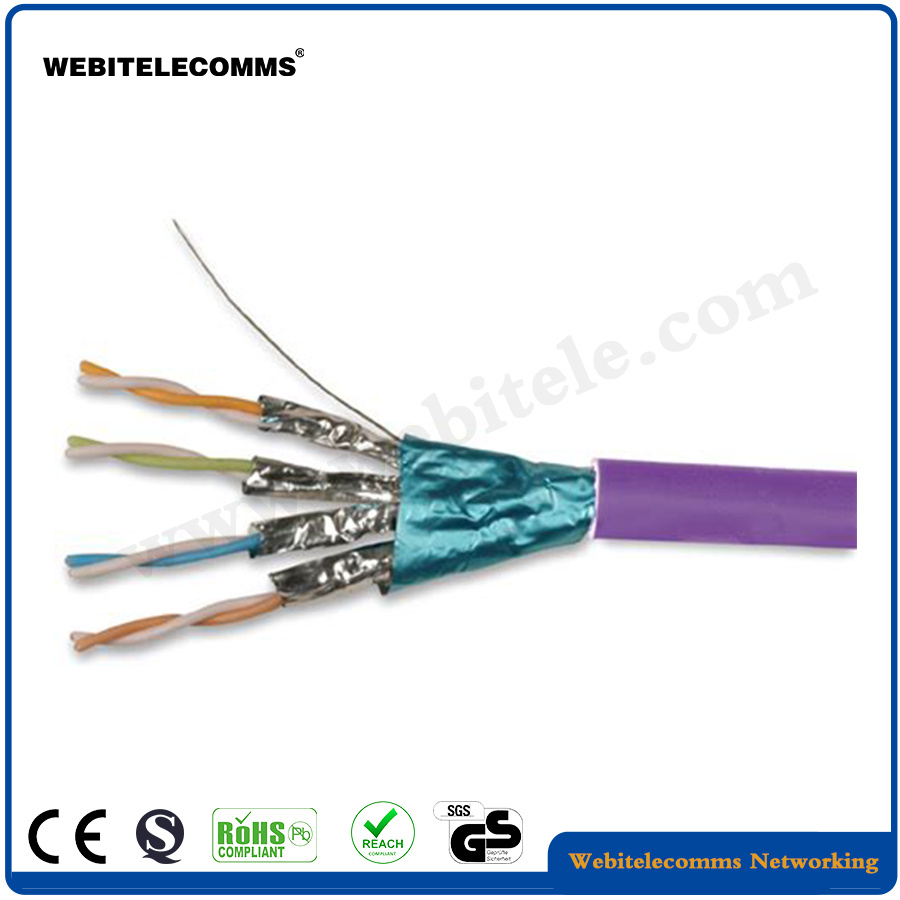

| Model | SFTP CAT7 CABLE |
| Conductor Size | 23 AWG/24 AWG
0.45mm/0.48mm/0.49mm/0.5mm/0.51mm/0.56mm/0.58mm |
| Conductor Material | BC/CU/CCA/CCAG |
| Number Of Conductor | 4Pairs, 8cores |
| Shield | UTP/FTP/STP/SFTP |
| PVC Jacket Color | As client's requests |
| Jaeket Material | Common PVC /New PVC /ROHS/ LSZH/ CM/ Outdoor |
| Marking On Jacket | On your request (Print your brand) |
| Waterblock Tape | Yes |
| Package detail | 305M/box (According to requirements) |
