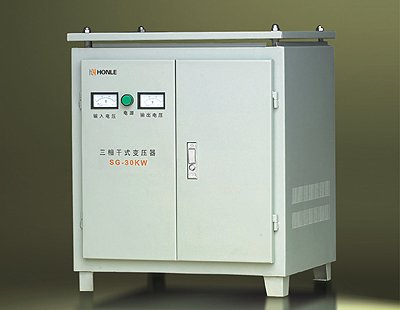

Sg 30kVA Dry-Type Isolation Transformer

Name: Sg 30kVA Dry-Type Isolation Transformer
Brand: all-electronics-online.com
SKU: 810145115
Availability: InStock
Rating: 4.5 (44 reviews)

Price:	US $ 256/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SG-30KVA
Coil Structure:	Toroidal
Delivery Detail:	15~20days After Received Deposit
Application:	Electronic
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Certification:	Ce
Brand:	Honle

Product Description

Specifications

model:SG-30KVA

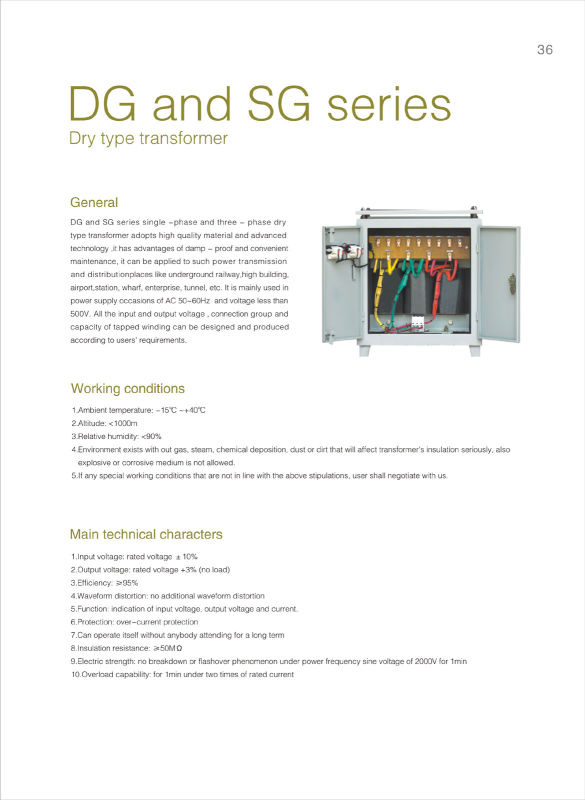

Dry-Type Isolation Transformer

DG and SG series single-phase and three-phase dry-type isolation transformer adopts high quality material and advanced technology,it has advantages of damp-proof and convenient maintenance,it can be applied to such power transmission and distributionplaces like underground railway,high building,airport,station,wharf,enterprise,tunnel,etc.It is mainly used in power supply occasions of AC 50-60HZ and voltage less than 500V.All the input and output voltage,connection group and capacity of tapped winding can be designed and produced according to usersrequirements.

Working condition
1.Ambient temperature:-15-+40
2.Altitude:<1000m
3.Relative humidity:<90%
4.Environnment exists with out gas,steam,chemical deposition,dust or dirt that will affect transformers insulation seriously,also explosive or corrosive medium is not allowed.
5.If any special working conditions that are not in line with the above stipulations,user shall negotiate with us,

Main technical characters
1.Input voltage:rated voltage ±10%
2.Output voltage:rated voltage +3%(no load)
3.Efficiency:≥95%
4.Waveform distortion:no additional waveform distortion

5,Function:indication of input voltage,output voltage and current

6,Protection:over-current protection

7,Can operate itself without anybody attending for a long time
