Product Description
Product overview

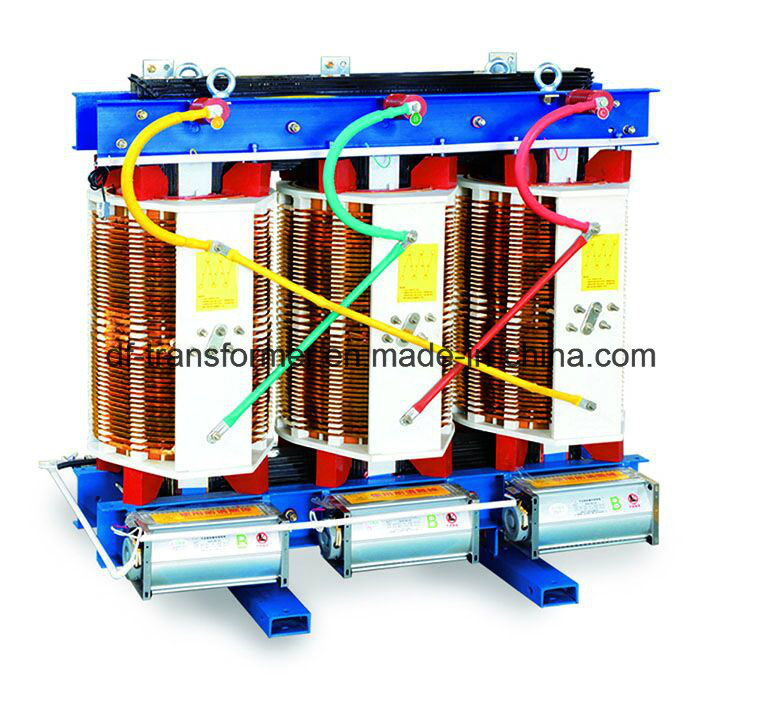

Produced by the United States UL approved NOMEX insulation system of the three coherence coating coil type power transformer, with a safe, reliable, energy saving, fire prevention, explosion proof and simple maintenance etc. Its advanced designing, reasonable structure, beautiful shape, the main performance indicators are better than the national standard, such as partial discharge level, no-load loss and load loss, noise, and can be used to adapt to the high humidity environment, etc., can be installed near the lake, the sea, the river dirty wet environment and fire prevention requirement is high, the load of the larger area, suitable for high-rise buildings, airport, station, wharf, power plants, metallurgical industry, metro, hospital, shopping center, residents concentration areas and petroleum chemical industry, power plant, nuclear submarines and other places.
1,SG(B)10,,,.
2,,,,.
3,,,,,.
4,,SG(B)10.
5,H(180ºC).
6,.,,120%,140%3.,±50ºC.
Product features
1. Carefully designing of coil structure ,the vacuum impregnation process make the SG (B) 10 transformer partial discharge, and in the whole life, no crack phenomenon, no insulation levels drop phenomenon.
2. High voltage low voltage continuous winding, foil, whole vacuum impregnation and curing processing and use high strength ceramic support, have good capacity of sudden short circuit current.
3. Flame retardant, flame retardant, non-toxic, self-extinguishing, fire prevention.
4. Under the high temperature flame combustion, SG (B) 10 transformer produces almost no smoke.
5. Transformer is class H insulation (180 ºC).
6. Insulating layer to a very thin and uniform. Short-time overload ability is extremely strong, without forced cooling, can be long-term overload, 120% to 140% over load 3 hours. Due to this kind of insulating material not ageing and elastic, so under the condition of + 50 ºC can be immediately with full load.
1,:-50ºC~±50ºC.
2,:≤1000m.
3,,,.
Conditions
1. The ambient temperature: - 50 ºC ~ + 50 ºC.
2. Altitude:1000 m or less.
3. Others beyond the content of the provisions of these technical conditions, by the user and technology consultation, and marked with orders.
SG(B)10: main performance parameters of the products
Type | (KVA)
Rated capacity |
Connection symbol | (KV)
Voltage combination | (W)
No-load losses | (W)
Load losses |
| | |
H.V |
Tapping range |
L.V | | | |
| SG(B)10-100/10 | 405 | 510 | 1880 | 2550 | 2.4 | 2.4 | 40 | 55 | 4.0 |
| SG(B)10-160/10 | 560 | 700 | 2550 | 3650 | 2.0 | 2.0 | 42 | 58 |
| SG(B)10-200/10 | 630 | 820 | 3100 | 4680 | 2.0 | 2.0 | 42 | 58 |
| SG(B)10-250/10 | 760 | 950 | 3600 | 5500 | 1.8 | 2.0 | 44 | 58 |
| SG(B)10-315/10 | 880 | 1100 | 4600 | 6600 | 1.8 | 1.8 | 46 | 60 |
| SG(B)10-400/10 | 1040 | 1300 | 5400 | 7800 | 1.8 | 1.8 | 46 | 60 |
| SG(B)10-500/10 | 1200 | 1500 | 6600 | 9350 | 1.8 | 1.8 | 47 | 62 |
| SG(B)10-630/10 | 1340 | 1680 | 7900 | 11500 | 1.6 | 1.6 | 47 | 62 | 6.0 |
| SG(B)10-800/10 | 1690 | 2120 | 9500 | 13600 | 1.3 | 1.6 | 48 | 64 |
| SG(B)10-1000/10 | 1980 | 2480 | 11400 | 15700 | 1.3 | 1.4 | 48 | 64 |
| SG(B)10-1250/10 | 2350 | 2980 | 12500 | 18400 | 1.3 | 1.4 | 49 | 65 |
| SG(B)10-1600/10 | 2700 | 3420 | 13900 | 21300 | 1.3 | 1.4 | 50 | 66 |
| SG(B)10-2000/10 | 3320 | 4150 | 17500 | 25000 | 1.2 | 1.2 | 50 | 66 |
| SG(B)10-2500/10 | 4000 | 5000 | 20300 | 2910 | 1.2 | 1.2 | 51 | 67 |
