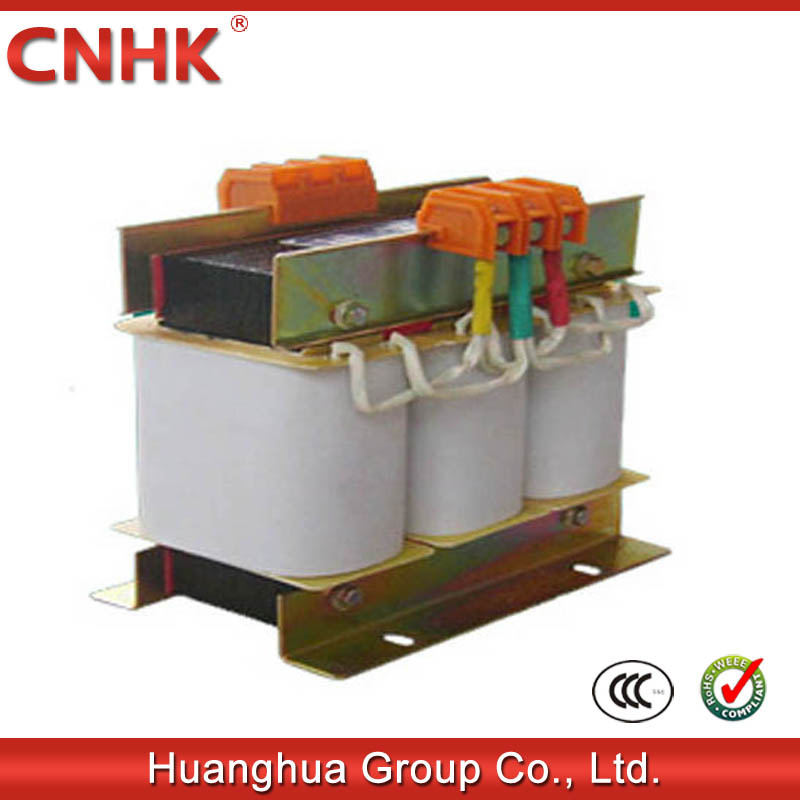

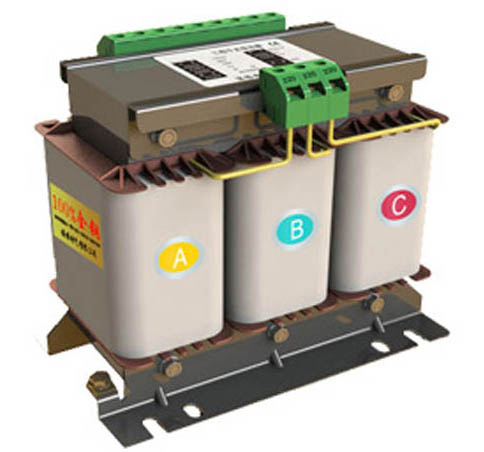

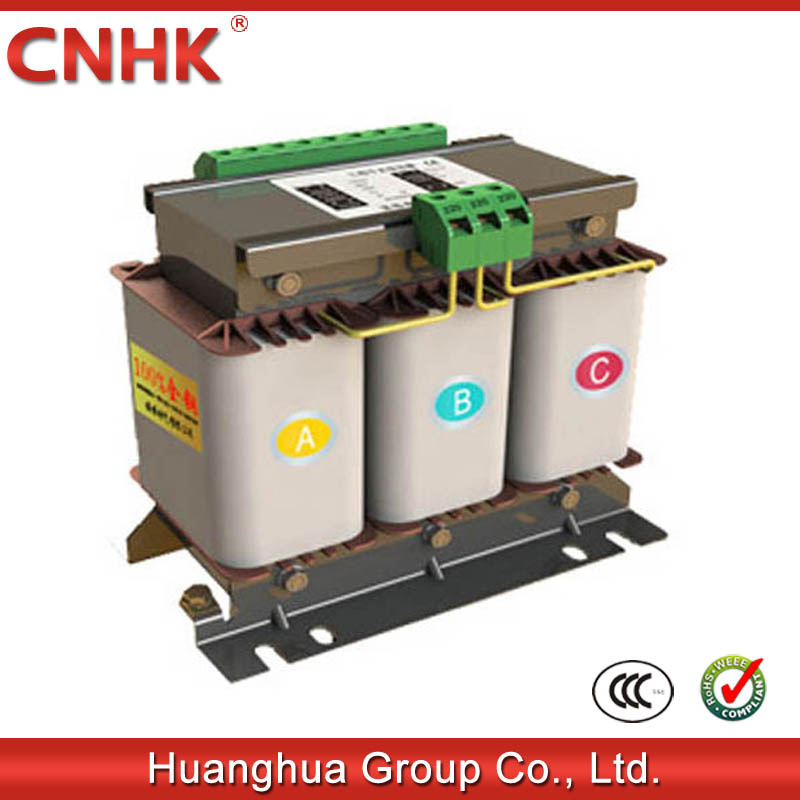

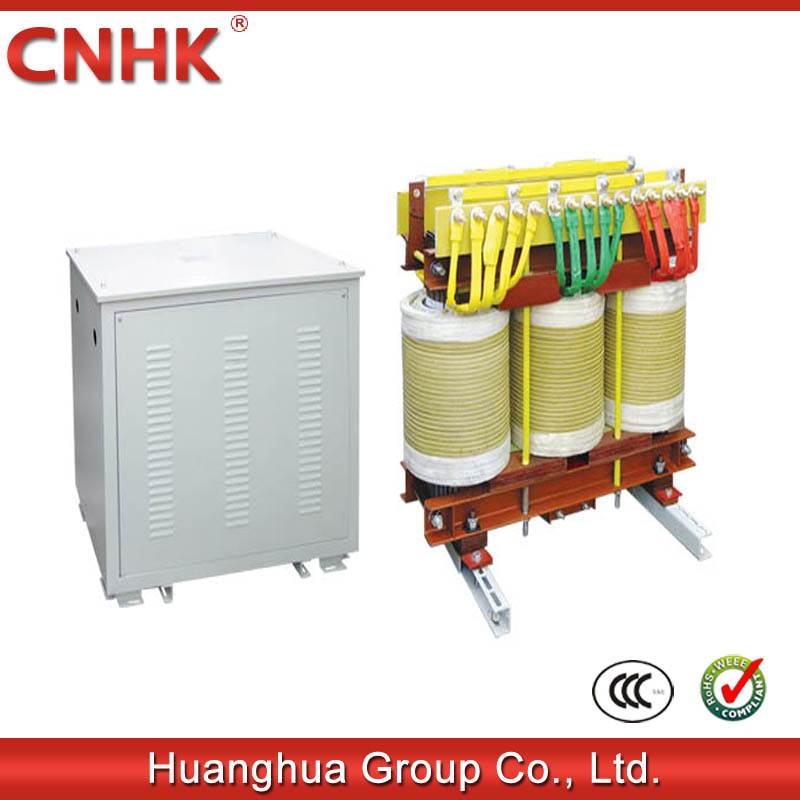

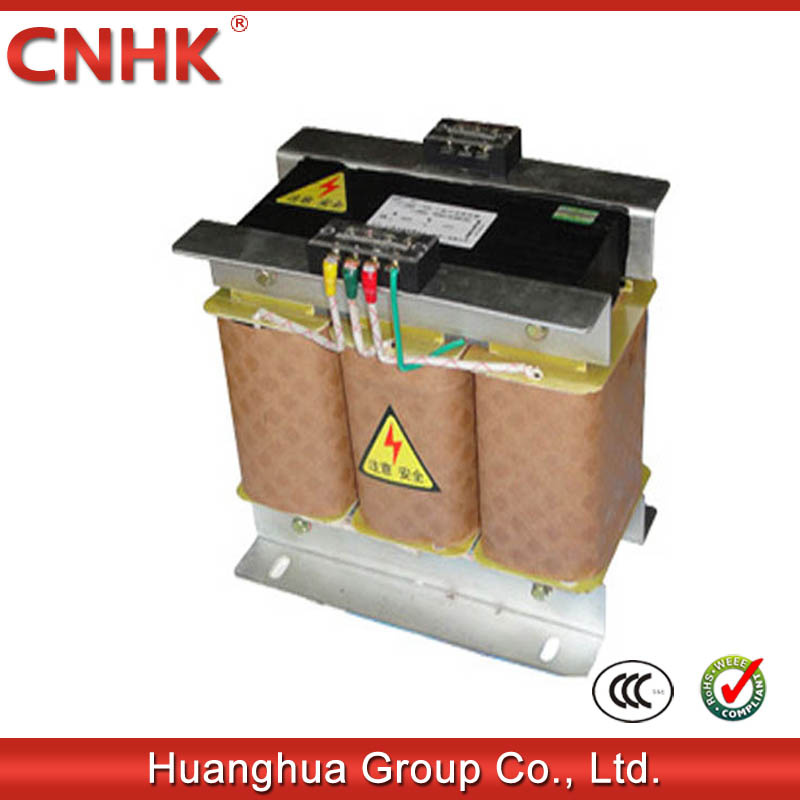

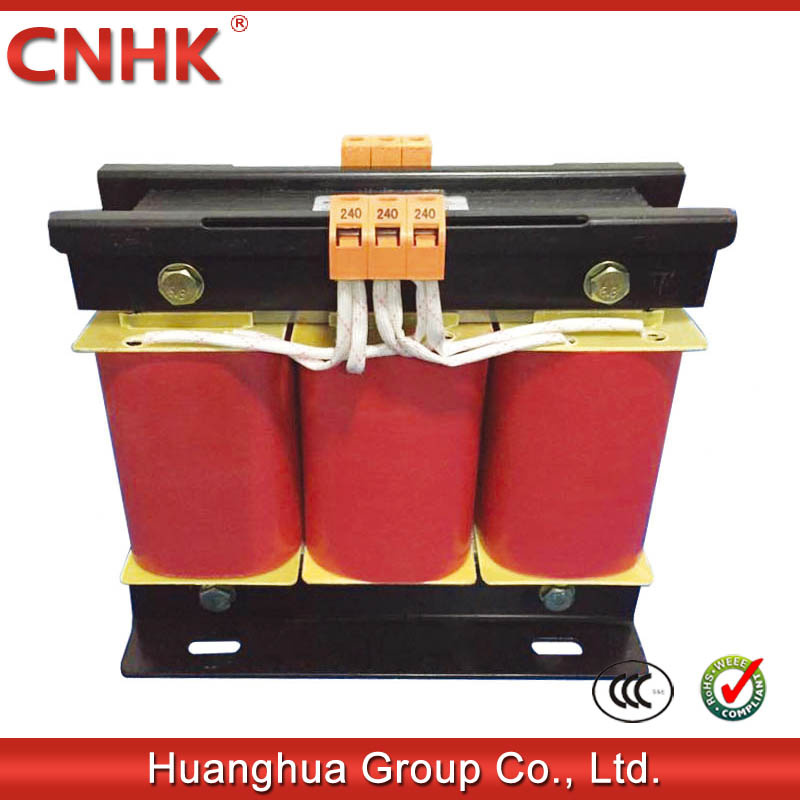

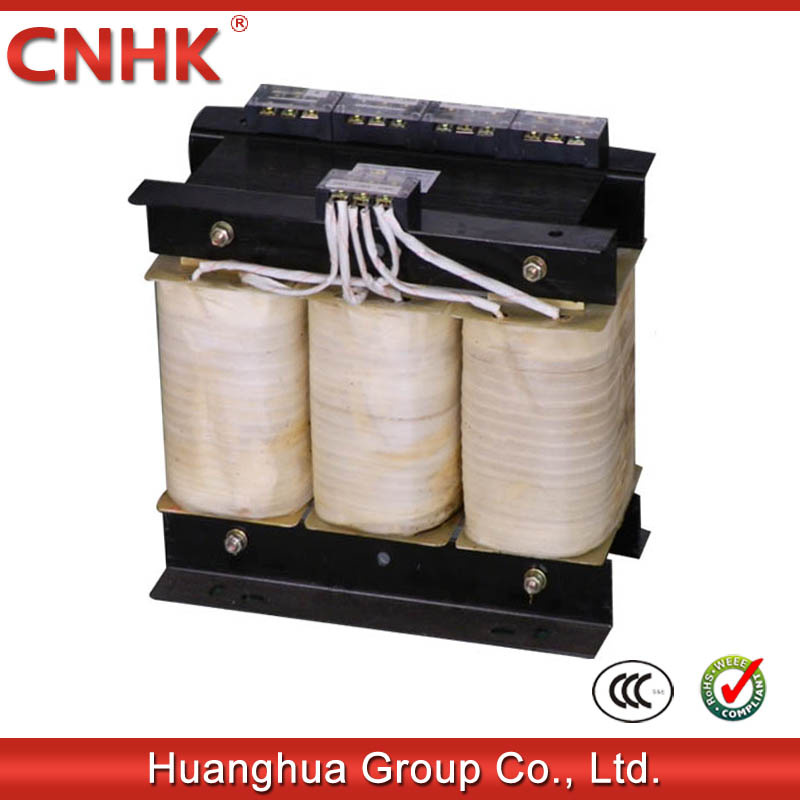

Sg Dry Type Control Transformer

Name: Sg Dry Type Control Transformer
Brand: all-electronics-online.com
SKU: 823179625
Availability: InStock
Rating: 4.4 (79 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	sg series
Application:	Power
Phase:	Single
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Brand:	Cnhk

Product Description

Description
BK series machine tools control transformer, it's suitable in AC50/60Hz, input voltage not exceed 660V circuit. as the control power source of common appliances, like machine tools, industry equipments ect. Power source of local illumination lamps & indication lamps.

Usage condition
1. Altitude ≤2,000m
2. Air temperature: The max temperature not exceed +40ºC, min temp not below -5ºC.
3. Air relative humidity: Max monthly average humidity in the wettest month is 90%, and the min monthly average temperature of this month is +25ºC.
4. Mounting place without obvious shock or impact.
5. In the dielectric without explosive danger, and without conducting dust or gas can corrode metal & damage isolation existing in the dielectric.

Specification

Model	primary voltage(V)	secondary voltage(V)
sg-25VA	220, 380	6.3,12, 24, 36, 110, 127, 220, 380
sg-50VA	220, 380	6.3,12, 24, 36, 110, 127, 220, 380
sg-100VA	220, 380	6.3,12, 24, 36, 110, 127, 220, 380
sg-150VA	220, 380	6.3,12, 24, 36, 110, 127, 220, 380
sg-200VA	220, 380	6.3,12, 24, 36, 110, 127, 220, 380
sg-250VA	220, 380	6.3,12, 24, 36, 110, 127, 220, 380
sg-300VA	220, 380	6.3,12, 24, 36, 110, 127, 220, 380
sg-500VA	220, 380	6.3,12, 24, 36, 110, 127, 220, 380
sg-1000VA	220, 380	6.3,12, 24, 36, 110, 127, 220, 380
sg-2000VA	220, 380	6.3,12, 24, 36, 110, 127, 220, 380
sg-5000VA	220, 380	6.3,12, 24, 36, 110, 127, 220, 380
