| Prod Model: |
SG10 |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Rockwell |
Product Description

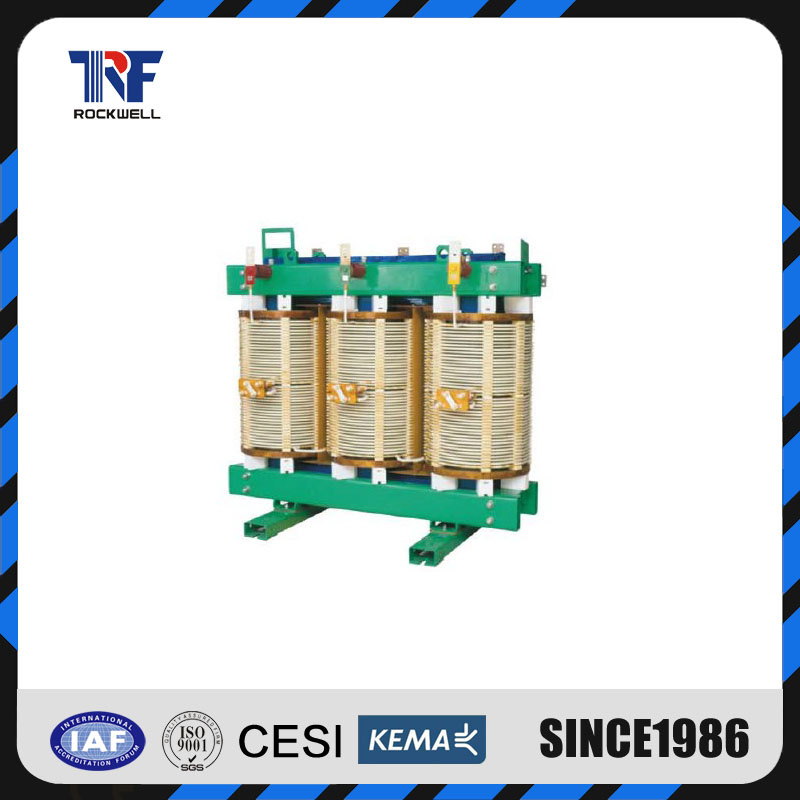

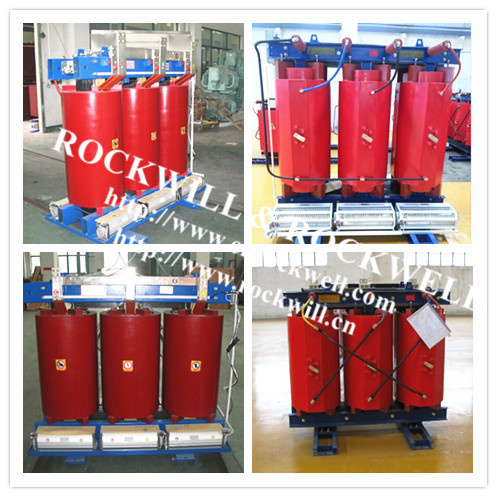

SG10 type H grade insulation dry type transformer
Product description
Class H insulation
The dry transformer has following insulation classes: class B, class F, class H, class C, etc. their thermal-endurance temperature is respectively 130 ºC, 150 ºC, 180ºC, and 220ºC. As adopting new material and new technology of deport, the model SG(B) dry type transformer has reached class H of thermal endurance, and some of its key location reached class C of thermal endurance.
Safety
Model SG(B) new products are dry transformer with the highest safety in current market. all of this insulating materials are of non-combustion supporting, self-extinguishing, nontoxic one. It shows advantages especially when used in those fields where high safety is required, humidity and temperature are high, and ventilation is poor, such as in power sites, underground railways, ships, chemical and metallurgical sites. Outer casing and blower fan can be provided if required by users.
Reliability
The coil of model SG(B) is specially designed and made of special material with special technical process, which renders the product excellent moisture-proof, mildew-proof and salty fog-proof performances, much higher temperature endurance, and permanent chap free ability. The nomex based insulating system can remains at the extraordinary excellent and mechanical performances and compressive strength, therefore its coil can keep a compact and tight structure after many years service and the transformer can withstand short circuit voltage.
Environmental protection
Model SG(B) product can be disassembled for recovery after life end, thus meeting clients requirements one environmental protection. While those dry transformers made via epoxy cast can't be disassembled, because the resin glass has cured into an integral one, and therefore is unfavorable for environmental protection.
Strong overload capacity
Model SG(B) adopts new structure, novel material and up to date technology, featuring good heat-sinking capability, long thermal endurance, strong overload capability, it can run stably under 120% rated load for a long period. It can keep a long term running under full load in IP23 environment without forced air ventilation necessary.
Main technical data for 10kV SC(B) -30~2500 type transformerRated
power
(kVA) | High
Voltage
(kV) | H.V.Tap
(kVA) | Low
Voltage
(kV) | Vector group | Short
circuit impedance
(%) | No-load
Loss
(kW) | On-load
Loss
(WX145ºC) | No-load
current
(%) | Insulation
class | Noise
(dB) |
SG(B)
9 | SG(B)
10 | SG(B)
9 | SG(B)
10 |
| 30 | 6
6.3
10
10.5
11 | ±5%
±2×2.5% | 0.4 | Yyn0
Dyn11 | 4 | 220 | 190 | 800 | 760 | 2.3 | H | 40 |
| 50 | 310 | 270 | 1130 | 1070 | 2.2 | 40 |
| 80 | 420 | 370 | 1560 | 1480 | 1.7 | 40 |
| 10 | 450 | 400 | 1780 | 1690 | 1.7 | 40 |
| 125 | 530 | 470 | 2100 | 1980 | 1.5 | 41 |
| 160 | 610 | 540 | 2410 | 2280 | 1.5 | 42 |
| 200 | 700 | 620 | 2870 | 2710 | 1.3 | 42 |
| 250 | 810 | 720 | 3120 | 2960 | 1.3 | 44 |
| 315 | 990 | 880 | 3930 | 3730 | 1.1 | 46 |
| 400 | 1100 | 980 | 4520 | 4280 | 1.1 | 46 |
| 500 | 1310 | 1160 | 5530 | 5230 | 1.1 | 47 |
| 630 | 1510 | 1340 | 6660 | 6290 | 0.9 | 47 |
| 630 | 6 | 1460 | 1300 | 6750 | 6400 | 0.9 | 47 |
| 800 | 1710 | 1520 | 7880 | 7460 | 0.9 | 48 |
| 1000 | 1990 | 1770 | 9210 | 8760 | 0.9 | 48 |
| 1250 | 2350 | 2090 | 10980 | 10370 | 0.9 | 49 |
| 1600 | 2760 | 2450 | 13270 | 12580 | 0.9 | 50 |
| 2000 | 3400 | 3050 | 16370 | 15560 | 0.7 | 52 |
| 2500 | 4000 | 3600 | 19460 | 18450 | 0.7 | 55 |
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
