SGS 12*12mm Square DIP Push Button Tact Switch

Name: SGS 12*12mm Square DIP Push Button Tact Switch
Brand: all-electronics-online.com
SKU: 799529685
Availability: InStock
Rating: 4.8 (86 reviews)

Price:	US $ 0.026-0.03/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HY-1103
Type:	Standard
Installation Form:	Insert Welding
Package:	SMT Chip Package
Shape:	Square
Shrapnel:	Gold-Plated
Certification:	RoHS
Structure:	Four Contact
Application:	Electronic and Electrical Equipment

Product Description

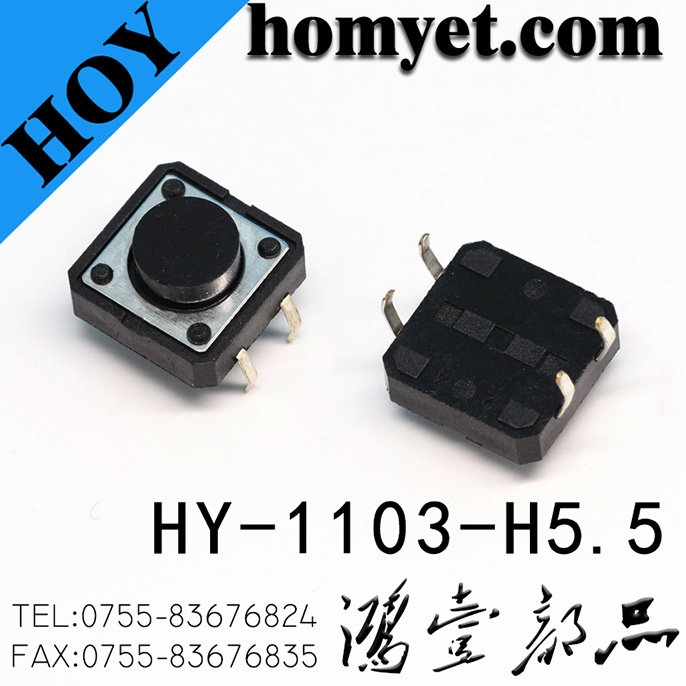

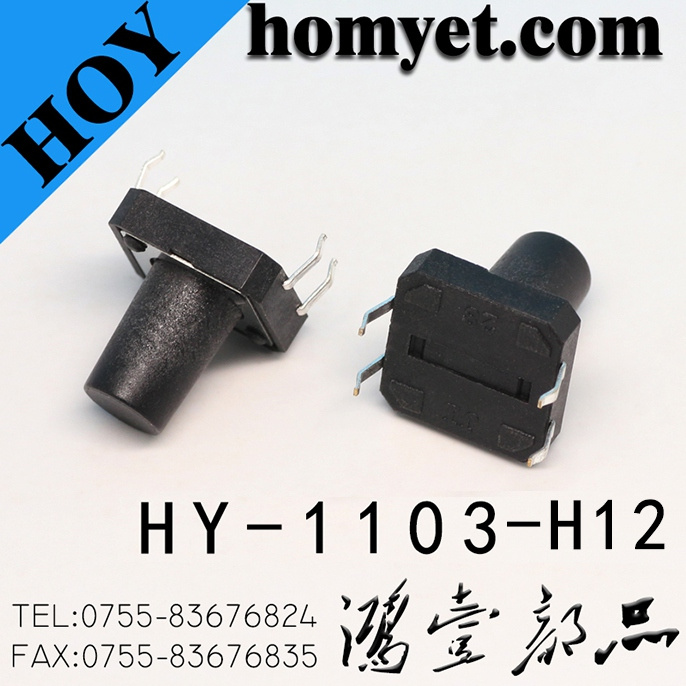

SGS 12*12mm Square DIP Push Button Tact Switch
-----Good Performance&Long life&Install easily
Customizing the height&operating force&Button shape

Material
1. Deystoke: Nylon/PBT Black
2. Base: Nylon/PBT
3. Contact: Copper-Silver Composite
4. Shell: IRON Tin-plated
5. Terminal: Brass Plating silver

Specification:
They can operate all types of electronic equipment such as the computer, telephone, PDA, DVD digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.

Rating	DC 12V 50mA Max
Temperature	-25'C-85'C
Operating Force	160gf, 180gf, 250gf
Contact Resistance	100mΩ Max
Travel	0.25+-0.1mm
Life	100,000 cycles Min

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature profile

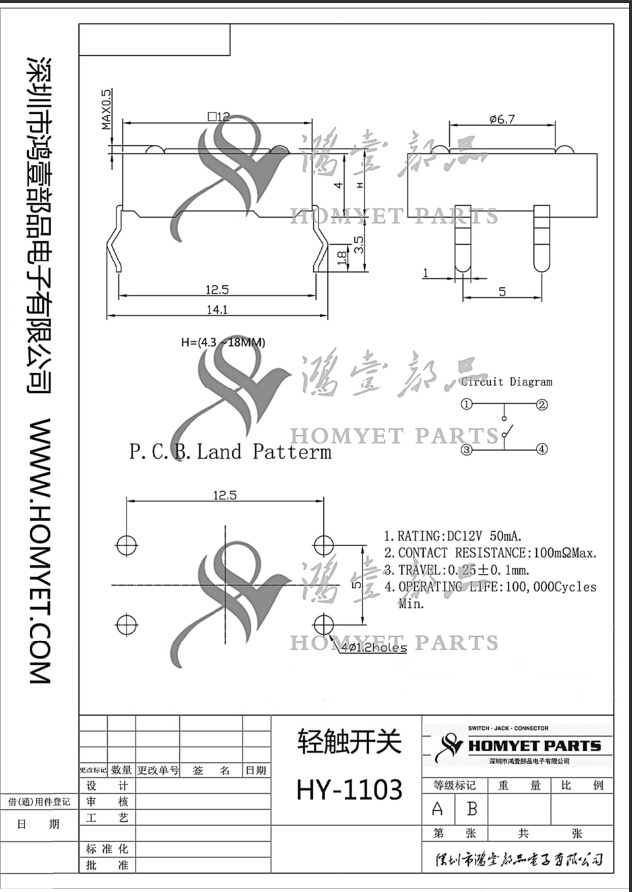

Product Datasheet&Picture:

Packing&Shipping:
1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery

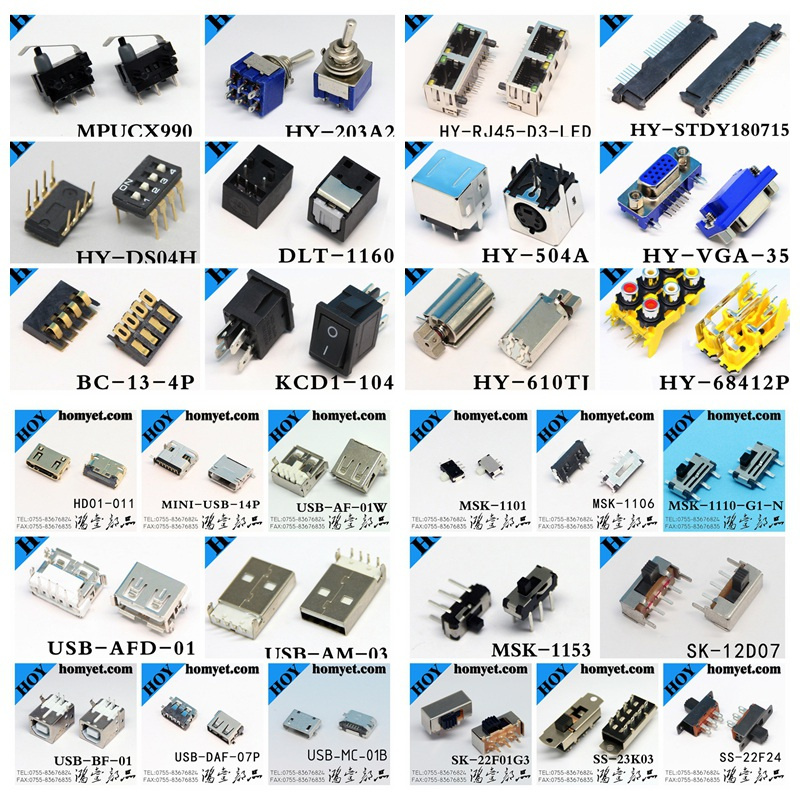

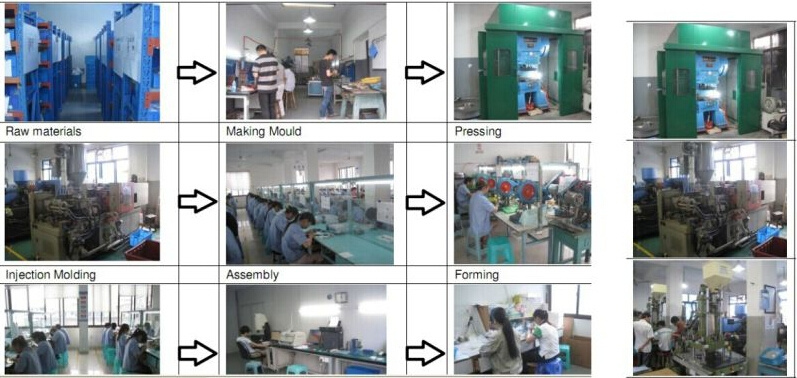

Company&Products Show:
