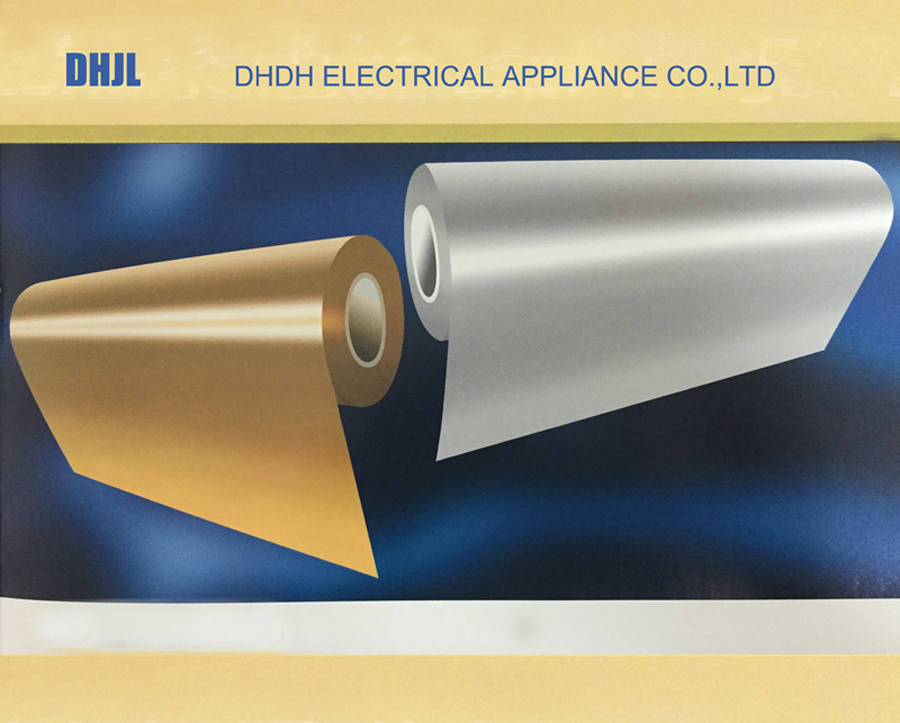

SGS Certification Thermal Resistant Mica Roll
| Price: |
US $ 2.5-7.5Kilogram |
| Min Order: |
200Kilogram |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
DHJL-J-GS |
| Density(g/cm3): |
1.6-2.3 |
| Binder Content(%): |
10-15 |
| Thickness(mm): |
0.2-0.8 |
| Width(mm): |
1000 or Customized |
| Mica Content(%): |
80 |
| Application: |
Switch Baseplate |
| Type: |
Insulation Film |
| Chemistry: |
Hybrid Insulation |
| Material: |
Mica |
| Thermal Rating: |
950-1000/Degree, IEC331 |
| Color: |
White Grey Black or Customized |
Product Description
Quick Details
| Place of Origin: | Jiangsu, China (Mainland) | Brand Name: | DHJL | Model Number: | DHJL-J-GS |
| Type: | Insulation Film | Material: | mica | Application: | High Temperature |
| standard reference: | GB5019-85,IEC371 | Color: | grey golden or customized | density: | 1.8 g/cm3 |
| thickness: | 0.2-0.8 mm | tensile strength: | mini 100 N/15mm | binder content: | 10-15% |
| width: | 1000mm | nlength: | 25/50/100 m/roll | mica content: | mini 80% |
Packaging & Delivery
| Packaging Details: | normal export products package |
| Delivery Detail: | within 7 working day after receving deposite |
Product Name: SGS certification thermal resistant mica roll
Product Description
Mica rolls are made by pressing brown or composite mica paper,glass fiber choth and organic silicon resin through special process.The thickness of mica roll ranges from 0.2mm to 0.8mm,length from 25m to 100m,width 1m.Compared to soft mica plate,mica rolls are further provided with glass fiber;Therefore,they have better tensile strength.Compared to mica tapes,mica rolls have better performance in single-layer breakdown voltage due to increased thickness.Mica rolls mainly serve as furnace lining fire-resistant insulating material,being capable of resist temperature 1200 ºC maximum.

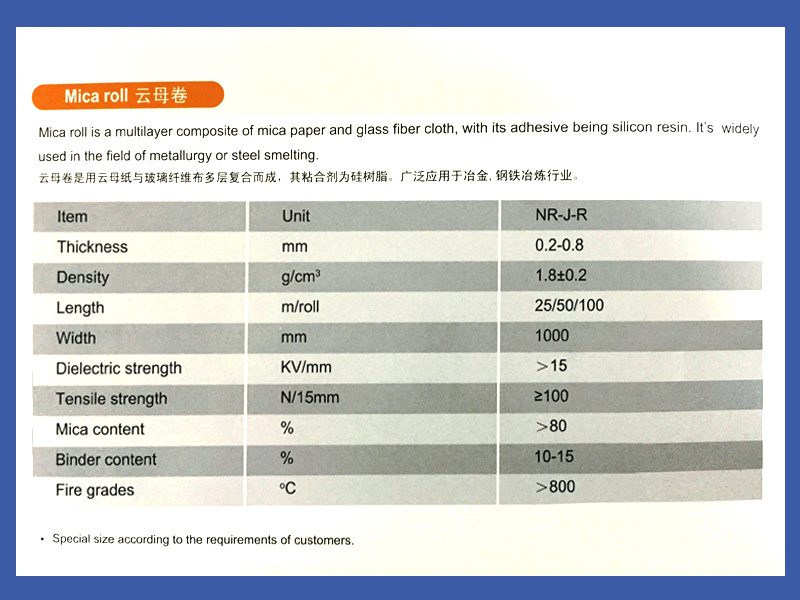

Specification
·Width:1000mm;
·Length:20m,30m,40m and 50m.
Product Classification
·5461-P-R1 Double-side fiberglass brown mica.
·5461-P-R2 Double-side brown mica.
·5461-P-R3 Single-side brown mica.
·5461-P-R4 Brown mica rolls,one-side reinforced by fiberglass,the other side is ceramic cloth.
