Product Description

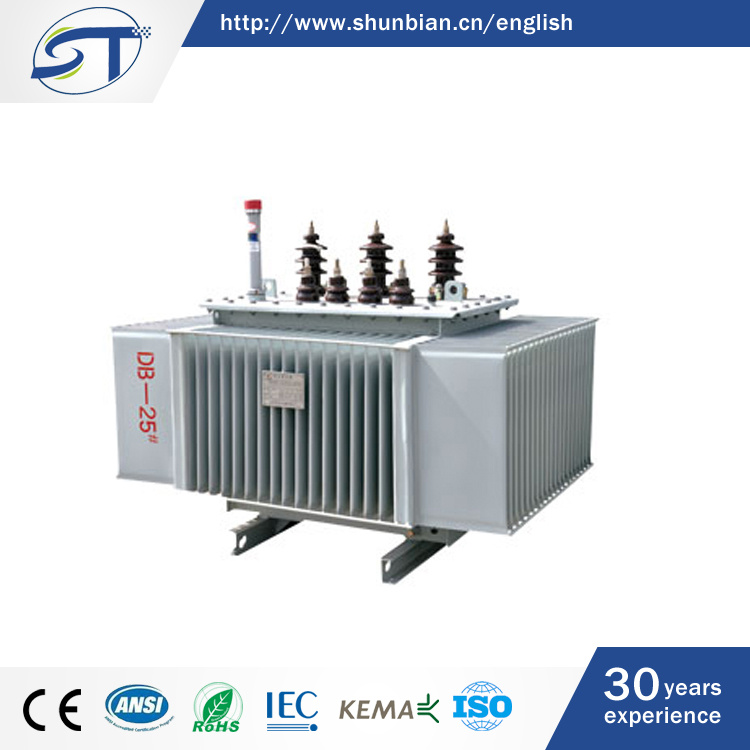

3-Phase Hermetically Seal Oil Immersed Distribution Transformer
- Rated capacity: 10-4000kVA
- High voltage: 11kv, 10.5kv, 10kv,6.3kv, 6kv
- Low voltage: 0.4kV
- Low loss and noisy
- Compared with normal oil immersed power transformer has no oil storage box and adopts the corrugations on the oil tank as its heat-radiation parts
- Oil tank is made by fine cold-rolled steel on an exclusive production-line
- Corrugations can expand or contract according to the change of oil volume
- Thus the inner space of transformer can be isolated from the air
- which can reduce the aging speed of oil and prevent the insulation materials from damping
- Oil-immersed transformer possesses a reliable operation and is free from maintenance
General Description:
Application: for power distribution system and large industrial enterprises, etc.
Standards: IEC 60076
Parameters: Rated Voltage: 6kV~35kV.
Rated Capacity: 30-20000kVA.
Technical specification:
SH15 amorphous alloy full enclosed 100kva transformer
Item No. | Information | Description |
amorphous alloy full enclosed transformer oil | Summary | SH15 series amorphous alloy full-sealed transformer is an epoch-making technology and trans-century "Green " product . The iron base amorphous alloy core has high saturation magnetic induction intensity , low loss (equivalent to 1/3-1/5 of silicon sheet), low corrective force and low excitation current and good temperature stability . Compared with S9 series with silicon sheet , the no-load loss of the transformer with amorphous alloy core is reduced by 70%-80% , no-load current reduced by 20%. |
| Reliable Structure | 1.A model SH15 amorphous alloy product adopts a single-frame or three-phase five-legged spiral core . 2.The core is clamped with sheet-formed frame structure and the low-voltage coil is of a foil winding type so as to render a low loss and a high short-circuit withstand . |
| Excellent Materials | - The amorphous alloy is a novel energy-saving material made with a fast and abrupt-solidification process and the metal atoms arrange in a disordered amorphous state and its structure completely different from crystal of silicon steel makes it easily magnetized and de-magnetized.
- When this novel material is used in transformer core, a running transformer may be easily subjected to 120 cycles/second of magnetizing and de-magnetizing process and thus no-load loss of the core is greatly reduced.
- If the said alloy is used in oil-immersed transformer, escape of harmful gases such as CO2,SO2 and NOX may be reduced and thus it is known as " green material " of 21st century.
|
Main Technical parameters for 10kV level, SH15-M series amorphous alloy distribution transformer
Rated power
(kVA) |
High Voltage
(kV)
|
H.V Tap range
|
Low Voltage
(kV)
|
Connection Symbol
|
Short-Circuit Impedance
(%)
|
No-load Loss
(W)
|
On-Load Loss
(W)
|
No-load Current
(%)
| |
| |
30 | 6
6.3
10
10.5
11 | ±5%
±2×2.5% | 0.4 | Yyn0
Dyn11 | 4 | 33 | 600 | 1.7 | |
50 | 43 | 870 | 1.3 | |
63 | 50 | 1040 | 1.2 | |
80 | 60 | 1250 | 1.1 | |
100 | 75 | 1500 | 1 | |
125 | 85 | 1800 | 0.9 | |
160 | 100 | 2200 | 0.7 | |
200 | 120 | 2600 | 0.7 | |
250 | 140 | 3050 | 0.7 | |
315 | 170 | 3650 | 0.5 | |
400 | 200 | 4300 | 0.5 | |
500 | 240 | 5150 | 0.5 | |
630 | 4.5 | 320 | 6200 | 0.3 | |
800 | 380 | 7500 | 0.3 | |
1000 | 450 | 10300 | 0.3 | |
1250 | 530 | 12000 | 0.2 | |
1600 | 630 | 14500 | 0.2 | |
2000 | 5 | 750 | 17400 | 0.2 | |
2500 | 900 | 20200 | 0.2 | |
other information
Brand | Daelim |
Color | According to custom or as our model |
Size | Standard size or Custom size |
MOQ | 1pcs |
Lead Time | 30-45 work days |
Payment | Bank Transfer, Paypal, Western Union, Escrow, T/T, L/C |
Sample shipment | UPS/DHL/Fedex/TNT/EMS,ect. |
Package | standard international package .proper for any special customer air or sea requirments,one set one case |
Note:Large order delivery time according to your quantity and type of product
