| Prod Model: |
SH15-M |
| Capacity: |
30-2500kVA |
| Input Voltage: |
6kv/6.3kv/10kv/10.5kv/11kv |
| Output Voltage: |
0.4kv |
| Connection Group Symbol: |
Dyn11 or Yyn0 |
| Impedance Voltage: |
4%, 4.5%, 5% |
| Application: |
Instrument |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi |
Product Description

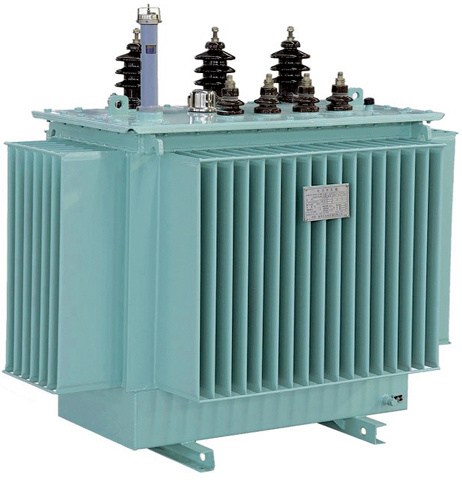

SH15-M Sealed Amorphous Alloy Power Distribution Transformer
Product introduction
The transformer is completely hermetical oil-immersed type. The principle is the same as the hermetical power transformer. The basic elements of the amorphous alloy is Iron, nickel, cobalt, boron and carbon etc. It is a kind of isotropic soft magnetic material with low magnetizing power. With 0.027mm thickness and the filling coefficient is reduced to 0.75-0.8, the amorphous alloy material is very sensitive for stress. The electrical resistivity of the material is 3-6 times of silicon steel sheet and the hardness is 5 times of it.
Advantages
Load loss of S(B)H15-M 30~1600/6~10 series transformer can be reduced by 15% on the basis of GB/T6451 standard. The no-load loss can be reduced by 70% on the base of GB/T6451 standard. Amorphous alloy transformer meets the standard JB/T10318-2002 Technical parameter of oil immersed type amorphous alloy transformer.
Technical Parameter of S(B)H15-M Series Hermetical Amorphous Alloy Power Transformer
Rated
capacity(KVA) | Voltage construction drawings and tapping ranges | Connection Group Symbol | No-load
Loss(W) | Load Loss
(W)75ºC | No-load current (%) | Short-circuit impedance(%) |
High Voltage (KV) | Tapping ranges of High Voltage | Low Voltage (KV) |
| 30 | 6
6.3
10
10.5
11 | ±5%
±2×2.5% | 0.4 | Dyn11
or
Yyn0 | 130 | 630/600 | 2.3 |
4.0 |
| 50 | 170 | 910/870 | 2.0 |
| 63 | 200 | 1090/1040 | 1.9 |
| 80 | 250 | 1310/1250 | 1.9 |
| 100 | 290 | 1580/1500 | 1.8 |
| 125 | 340 | 1890/1800 | 1.7 |
| 160 | 400 | 2310/2200 | 1.6 |
| 200 | 480 | 2730/2600 | 1.5 |
| 250 | 560 | 3200/3050 | 1.4 |
| 315 | 670 | 3830/3560 | 1.4 |
| 400 | 800 | 4520/4300 | 1.3 |
| 500 | 960 | 5410/5150 | 1.2 |
| 630 | 1200 | 6200 | 1.1 |
4.5 |
| 800 | 1400 | 7500 | 1.0 |
| 1000 | 1700 | 10300 | 1.0 |
| 1250 | 1950 | 12000 | 0.9 |
| 1600 | 2400 | 14500 | 0.8 |
| 2000 | 750 | 17400 | 0.20 |
5 |
| 2600 | 900 | 20200 | 0.20 |
