Sh15 Series Amorphous Metal Transformer
| Price: |
US $ 2800-3500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SH15 |
| Material: |
Oil, CRGO, Copper |
| Color: |
White, Green or Customized |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Amorphous Alloy Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Rockwell |
Product Description

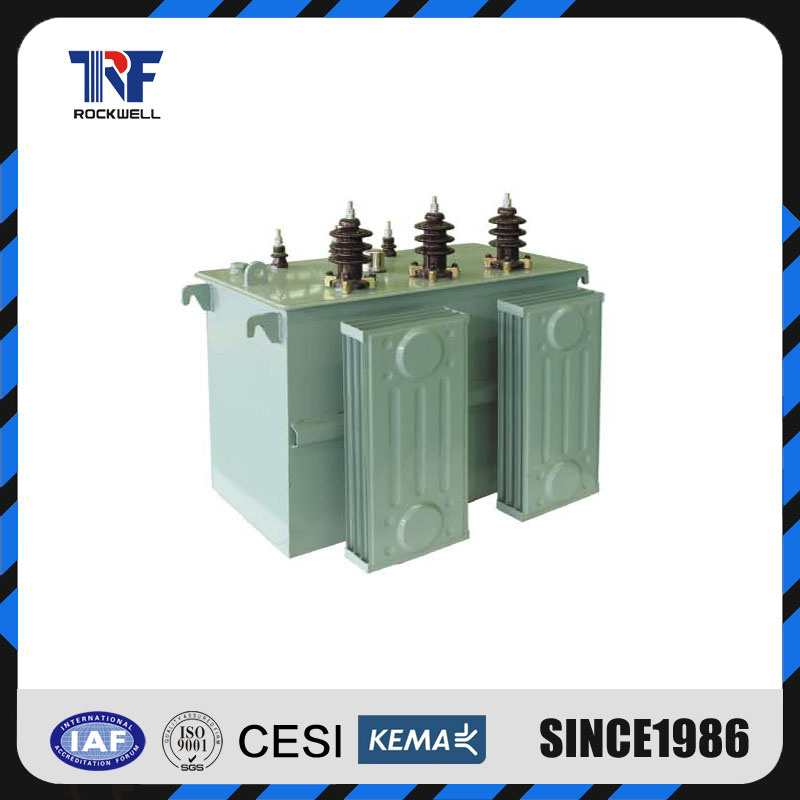

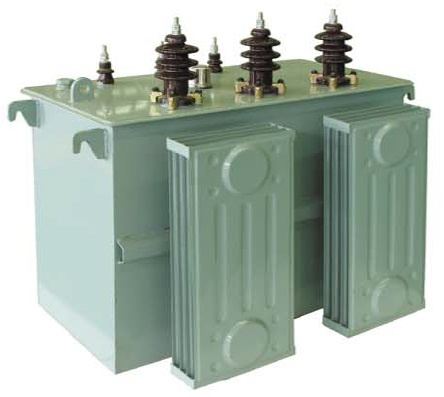

SH15 series amorphous metal transformer
Feature
SH15 series amorphous alloy full-sealed transformer is an epoch-making technology and trans-century "green" product. The iron base amorphous alloy core has high saturation magnetic induction intensity, low loss(equivalent to 1/3-1/5 of silicon sheet), low corrective force and low excitation current and good temperature stability. Compared with S9 series with silicon sheet, the no-load loss of the transformer with amorphous alloy core is reduced by 70-80%, no-load current reduced by 50% and load loss reduced by 20%.
The amorphous alloy is a novel energy-saving material made with a fast and abrupt solidification process and the metal atoms arrange in a disordered amorphous state and its structure completely different from crystal of silicon steel makes it easily magnetized and demagnetized. When this novel material is used in transformer core, a running transformer may be easily subjected to 120 cycles/second of magnetizing and de-magnetizing process and thus no-load loss of the core is greatly reduced. If the said alloy is used in oil-immersed transformer. Escape of harmful gases such as C02,S02, and NOX may be reduced and thus it is known as "green material" of 21st century.
A model SH15 amorphous alloy product adopts a single-frame or three-phase five-legged spiral core. The core is clamped with sheet-formed structure and the low-voltage coil is of a foil winding type so as to render a low loss and a high short-circuit withstand. It has advanced and rational structure and its overall performances reach international advanced level.
Main technical data for 10kv level, SH15-M-series amorphous alloy distribution transformer | Rated power (kVA) | High voltage
(kV) |
H.V.Tap range | Low
Voltage
(kV) | Connection symbol | Short-circuit
Impedance
(%) | No-load
Loss
(W) | On-load
Loss
(W) | No-load current
(%) |
| 30 | 6.3
6.6
10
10.5
11 | ±5%
±2×2.5% | 0.4 | Yyn0
Dyn11 | 4 | 33 | 600 | 1.7 |
| 50 | 43 | 870 | 1.3 |
| 63 | 50 | 1040 | 1.2 |
| 80 | 60 | 1250 | 1.1 |
| 100 | 75 | 1500 | 1 |
| 125 | 85 | 1800 | 0.9 |
| 160 | 100 | 2200 | 0.7 |
| 200 | 120 | 2600 | 0.7 |
| 250 | 140 | 3050 | 0.7 |
| 315 | 170 | 3650 | 0.5 |
| 400 | 200 | 4300 | 0.5 |
| 500 | 240 | 5150 | 0.5 |
| 630 | 4.5 | 320 | 6200 | 0.3 |
| 800 | 380 | 7500 | 0.3 |
| 1000 | 450 | 10300 | 0.3 |
| 1250 | 530 | 12000 | 0.2 |
| 1600 | 630 | 14500 | 0.2 |
| 2000 | 5 | 750 | 17400 | 0.2 |
| 2500 | 900 | 20200 | 0.2 |
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE ROCKWELL:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
CONTACT US:
Contact person: Mr. Chen Chengming
Tel:86-577-27869969
Mobile:86-18668777248
Your Best Choice for Electrical Appliances Industry!!!
Please leave an inquiry to know more details about Price , Packing ,Shipping and Discount.
Wenzhou Rockwell Transformer Co., Ltd. is a high-tech enterprise invested by Rockwill Transmission and distribution Group Co., Ltd. Our company is specialized in developing, manufacturing and marketing Single phase & three phase automatic step voltage regulator, Auto-transformers, power transformers, preventive auto transformer, CT and PT combinated Metering unit, and compact transformer and pad moubted substations.
Our company enjoys a worldwide reputation for our superior quality and service. In addition to the domestic market, our products are exported to America, Australia, Central Europe, Eastern Europe, Southeast Asia, the Middle East, Africa and other regions and countries.
Besides a great variety of products, we also provide you with professional technical solutions and services. If you have any problem, please feel free to contact us and our technicians will find a complete solution for you.
We always embrace the idea of developing together with customers and always try our best to provide users with safer, easier, greener and more energy-saving high and medium voltage electric equipment and components.
