SH15 Series Amorphous Metal Transformer
| Price: |
US $ 1500-100000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SH15 |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Powertech |
Product Description

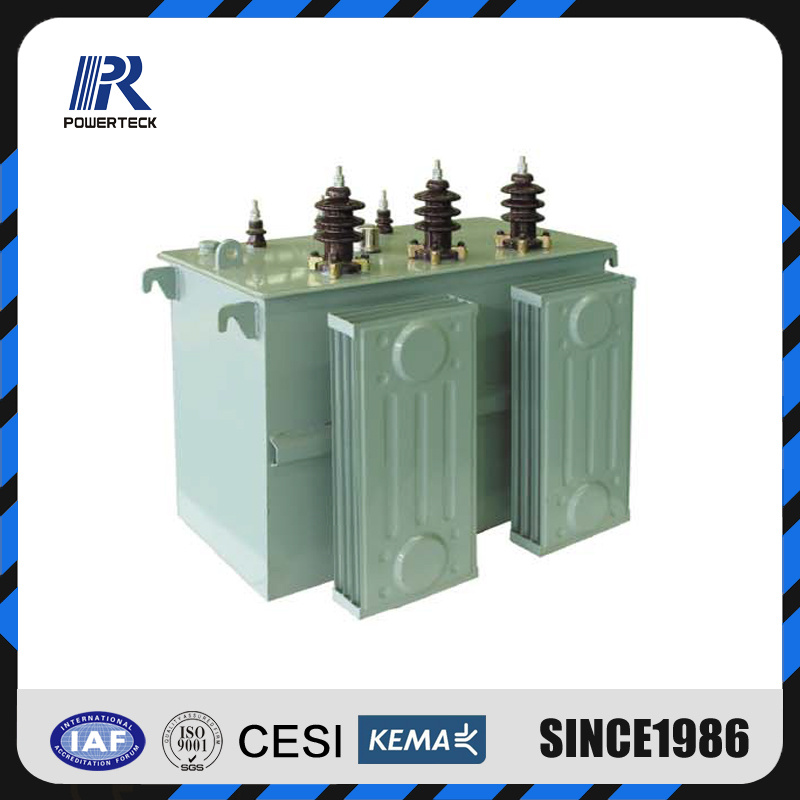

SH15 series amorphous metal transformer
Feature
SH15 series amorphous alloy full-sealed transformer is an epoch-making technology and trans-century "green" product. The iron base amorphous alloy core has high saturation magnetic induction intensity, low loss(equivalent to 1/3-1/5 of silicon sheet), low corrective force and low excitation current and good temperature stability. Compared with S9 series with silicon sheet, the no-load loss of the transformer with amorphous alloy core is reduced by 70-80%, no-load current reduced by 50% and load loss reduced by 20%.
The amorphous alloy is a novel energy-saving material made with a fast and abrupt solidification process and the metal atoms arrange in a disordered amorphous state and its structure completely different from crystal of silicon steel makes it easily magnetized and demagnetized. When this novel material is used in transformer core, a running transformer may be easily subjected to 120 cycles/second of magnetizing and de-magnetizing process and thus no-load loss of the core is greatly reduced. If the said alloy is used in oil-immersed transformer. Escape of harmful gases such as C02,S02, and NOX may be reduced and thus it is known as "green material" of 21st century.
A model SH15 amorphous alloy product adopts a single-frame or three-phase five-legged spiral core. The core is clamped with sheet-formed structure and the low-voltage coil is of a foil winding type so as to render a low loss and a high short-circuit withstand. It has advanced and rational structure and its overall performances reach international advanced level.
Main technical data for 10kv level, SH15-M-series amorphous alloy distribution transformer | Rated power (kVA) | High voltage
(kV) | H.V.Tap range | Low
Voltage
(kV) | Connection symbol | Short-circuit
Impedance
(%) | No-load
Loss
(W) | On-load
Loss
(W) | No-load current
(%) |
| 30 | 6.3
6.6
10
10.5
11 | ±5%
±2×2.5% | 0.4 | Yyn0
Dyn11 | 4 | 33 | 600 | 1.7 |
| 50 | 43 | 870 | 1.3 |
| 63 | 50 | 1040 | 1.2 |
| 80 | 60 | 1250 | 1.1 |
| 100 | 75 | 1500 | 1 |
| 125 | 85 | 1800 | 0.9 |
| 160 | 100 | 2200 | 0.7 |
| 200 | 120 | 2600 | 0.7 |
| 250 | 140 | 3050 | 0.7 |
| 315 | 170 | 3650 | 0.5 |
| 400 | 200 | 4300 | 0.5 |
| 500 | 240 | 5150 | 0.5 |
| 630 | 4.5 | 320 | 6200 | 0.3 |
| 800 | 380 | 7500 | 0.3 |
| 1000 | 450 | 10300 | 0.3 |
| 1250 | 530 | 12000 | 0.2 |
| 1600 | 630 | 14500 | 0.2 |
| 2000 | 5 | 750 | 17400 | 0.2 |
| 2500 | 900 | 20200 | 0.2 |
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
