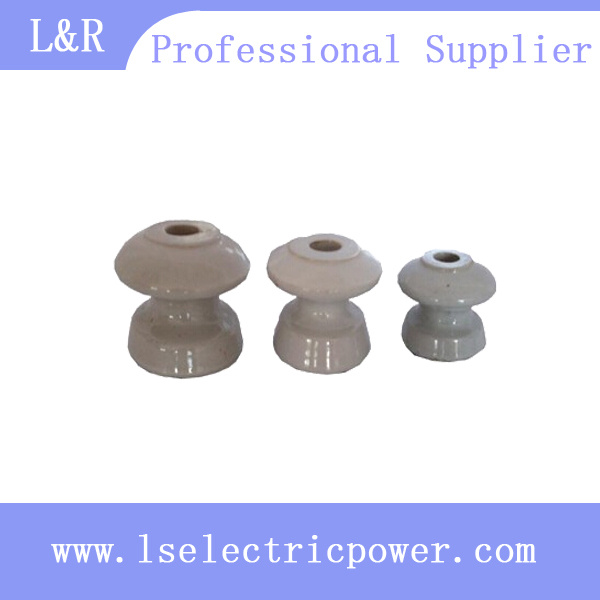

Shackel Insulator Porcelain

Name: Shackel Insulator Porcelain
Brand: all-electronics-online.com
SKU: 784450845
Availability: InStock
Rating: 4.4 (46 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ED-1 and so on
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ODM And OEM:	ODM and OEM
Lead Time:	20days
Material:	Porcelain
Structure:	Shackle Insulator
Application:	High-Voltage and Low-Voltage
Brand:	L&R or as Customized

Product Description

Basic information
Origin:Yueqing, Wenzhou, Zhejiang, China
Brand name:L&R or as customized
Markets:Global
Packing:Standard package or as per requirements
TECHNICAL SPECIFICATION OF LOW VOLTAGE SHACKLE INSULATOR

Model No.	DImensions							Mechanical failure strength of ceramic parts Not less than(kN)	Power frequency voltage (kv)		Weight (kg)
Model No.	H	H	D	D	D1	D2	R		Dry flashover	Wet flashover	Weight (kg)
ED-1	90	46	100	95	50	22	12	12	22	10	0.8
ED-2	75	38	80	75	42	20	10	10	18	9	0.5
ED-3	65	34	70	65	36	16	8	8	16	7	0.25

TECHNICAL SPECIFICATION OF HIGH VOLTAGE SHACKLE INSULATOR

Model No.	Rated voltage (kV r.M.S)	Dimensions mm					Power frequency voltage Not less than (kV r.M.S)			Mechanical failure strengh Not less than (kN)	Weight Kg
Model No.	Rated voltage (kV r.M.S)	H	D	D1	D2	R	Dry flashover	Wet flashover	Breakdown	Mechanical failure strengh Not less than (kN)	Weight Kg
E-10	10	175	180	70	26	12	60	32	78	15	3.5
E-6	6	145	150	68	26	12	50	26	65	15	1.8
E-1	-	180	150	74	26	12	45	27	78	20	4.0
E-2	-	150	130	72	26	12	38	23	65	20	2.2

Our services
1.Rich experience in ODM and OEM
2.Excellent one-stop service
3.High quality precision customized forging & casting services
4.The best price
5.Strict quality control
6.Factory direct price

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
