Shackle Load Cell for Crane and Overload Limit Weighing System

Name: Shackle Load Cell for Crane and Overload Limit Weighing System
Brand: all-electronics-online.com
SKU: 683781411
Availability: InStock
Rating: 4.6 (24 reviews)

Price:	US $ 240/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-47
Capacity:	0.5t to 75t
Construction:	Alloy Steel
Application:	Crane and Overload Limit Weighing System
Output Select:	1mv/V, 1-5VDC , 1-10vd, 4-20mA
Pattern:	Beam Load Cell

Product Description

Shackle Load Cell for Crane and Overload Limit Weighing System

Product Discription:

Alloy steel or stainless steel, stable capability and good credibility. Easy to install and adjust. Capacity:0.5t to 75t Apply to crane and overload limit weighing system. Output select:1mV/V,1~5Vdc,1~10Vd,4~20mA; Apply to outdoor working; wireless load cell can be customized.

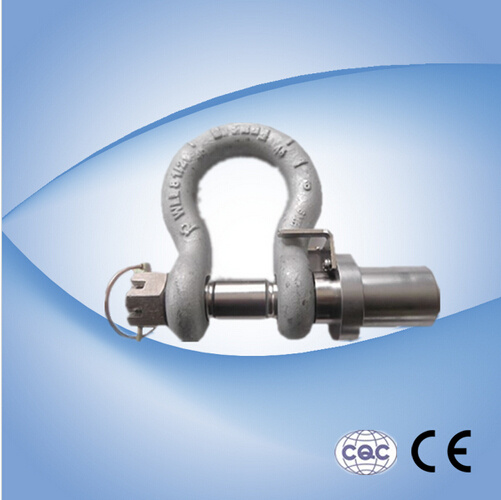

2. Product appearance:

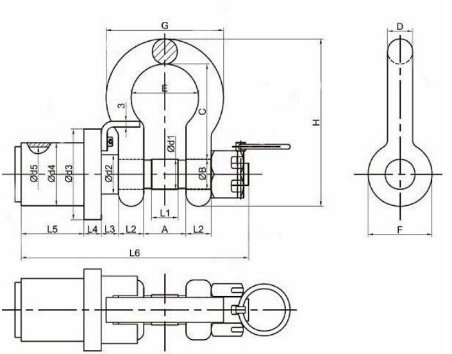

1) Customized dimension:

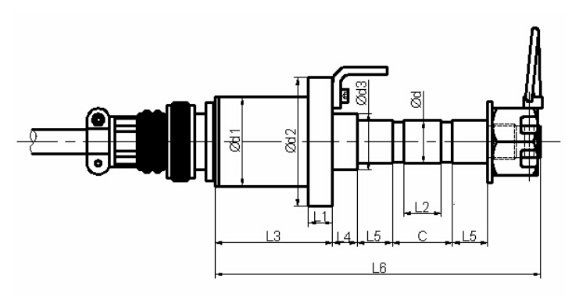

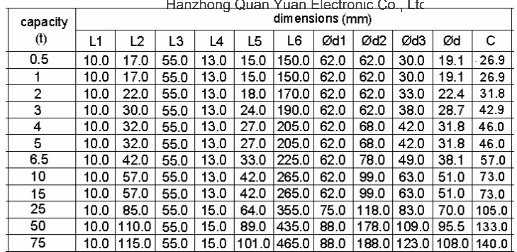

2) Standard dimension:

3. Parameters:

rate capacity	t	0.5-75
sensitivity	mV/V,Vdc,mA	1mV/V,1~5Vdc,1~10Vdc,
		4~20mA

accuracy	%FS	±0.5		±1
non-linearity	%FS	±0.5		±1
hysteresis	%FS	±0.5		±1
repeatability	%FS	±0.3		±0.5
creep	%FS/30min	±0.1		±0.2
temperature coefficient of	%FS/10ºC	±0.05		±0.05
ZERO


temperature coefficient of	%FS/10ºC	±0.05		±0.1
SPAN

zero output	%FS	±1

safe load	%FS	150

output resistance	Ω	352±3
input resistance	Ω	390±20
insulation resistance	MΩ	≥5000(50VDC)
excitation voltage	V	10(DC)
max.excitation voltage	V	15(DC)
compensated temperature	ºC	-10~+40
range

operating temperature range	ºC		-20~+60

sealed grade	IP		67,68

	4-core cable-¢6mm-12m- output mV/V:
wire connection	Excitation + red, signal + green, shield: purple
	Excitation- black, signal- white

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
