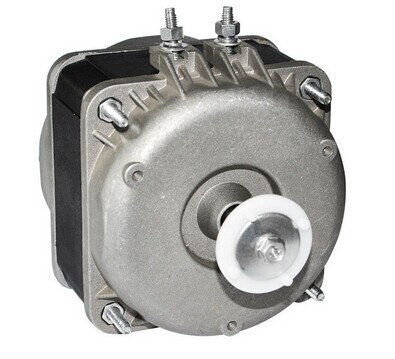

Shaded Pole Motor for Freezer
| Price: |
US $ 5.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
300/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
RTK-YZ18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
AC |
| Winding: |
Complete or Part Winding |
| Mounting Position: |
One or Two Mounting Position |
| Certificate: |
UL, CCC, CE, VDE |
| Voltage: |
220V-240V 110V-120V |
| Frequency: |
50Hz/60Hz |
| Nsulation Class: |
B |
| Ambient Temperature: |
-40c-60c |
| Protection Class: |
IP42 |
| Operating Type: |
S1 |
| Number Of Stator: |
Single-Phase |
| Function: |
Driving |
| Brand: |
Retekool |
Product Description
(1) YZ series motors are shaded pole motors with single-phrase and four-poles, and running at the rated voltage/frequency of 220-240V, 50/60HZ or 110-120V, 60HZ. (2)5 watt Fan Motor are widely applied to radiators, evaporators,condensing unit,ice machine and other refridgration equipments. (3) Their output power is from 5W to 34W, which can be adjusted according to the stack length. - Motors of output power below 10W have impedance protection, and motors of output power above 10W have thermal protectors whose cut-off temperature is 135oC±5oC.
SpecificationsBrand Name:SaiweiModel Number:5 watt Fan Motor Price YZ5-13Type:Asynchronous MotorFrequency:50/60HzOutput Power:5wProtect Feature:Drip-proofPhase:Single-phaseCertification:CCC, CE, ROHS, UL, VDEAC Voltage:208-230 / 240 VPlace of Origin:Zhejiang, China (Mainland)Efficiency:IE 2Ambient Temperature::-40-60°C5 watt Fan Motor Speed::1300/1550rpm5 watt Fan Motor Life::Over 3,0000hoursProtection Class::IP42 or IP44Motor Protection::Impedance SwitchedDirection of Fan::1300/1550r/minApplicable environment:Sucking or BlowingInsulation Class::Fan Bracket,Ring And Grill5 watt Fan Motor Rotation::CW,CCWHousing Material::Aluminum1.PRODUCT OVERVIEW (1) YZ series motors are shaded pole motors with single-phrase and four-poles, and running at the rated voltage/frequency of 220-240V, 50/60HZ or 110-120V, 60HZ.(2) 5 watt Fan Motor are widely applied to radiators, evaporators,condensing unit,ice machine and other refrigeration equipment.(3) Their output power is from 5W to 34W, which can be adjusted according to the stack length.(4) Motors of output power below 10W have impedance protection, and motors of output power above 10W have thermal protectors whose cut-off temperature is 135±5 degree centigrade. 2.COMPARISON OF THE INTERNAL STRUCTURE OF THE COILThe complete winding motor has more copper wire,and a motor of such advanced construction is more efficient,and it has better performance and longer life-span than the part winding motor.Therefore,the complete winding motor enjoys great popularity in Europe and America.
3.COMPARISON OF THE COVER STRUCTUREThe oil bearing used the oil is PERMAWICK # 284 which is imported from America.A motor with this bearing has low noise and long working life that is over 20000 hours.And it's applicable temperature is from -40 to +100 degree centigrade. The ball bearing with advanced construction,this high quality bearing gives the motor high energy efficiency,great performance,low noise and a long working life of 30000 hours.Its applicable temperature is from -40 to +100 degree centigrade.

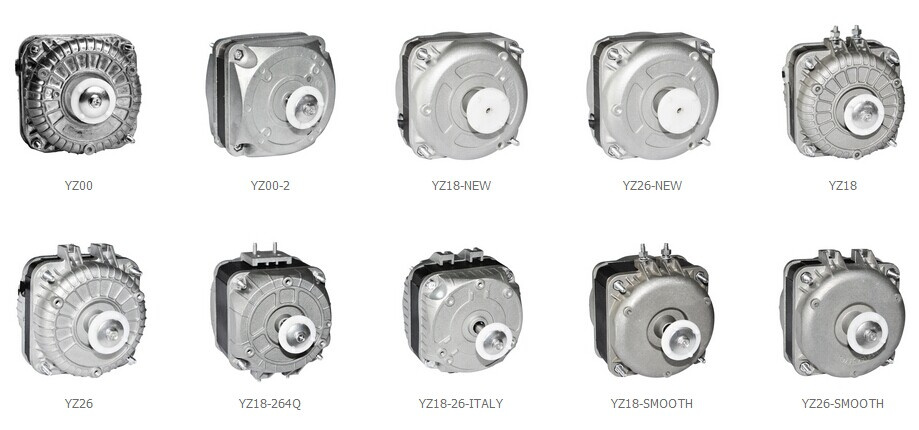

4.DIFFERENT COVERS CAN BE CHOOSED18 stand for the mounting screw distance is 18mm.26 stand for the mounting screw distance is 26mm.The ITALY cover and 4Q cover have multi-installation way.
Jinan Retek Industries Inc. is a professional supplier in China, specializing in refrigeration parts. Our main products are refrigerator parts. Now we have two factories in China, manufacturing different kinds of refrigeration parts. One is mainly manufacturing condensers and evaporators. The other one is mainly manufacturing copper filter driers, accumulators and access valves.
With the idea of "Best Products, Best Price and Best Services", our company spares no efforts to achieve the target of "Being the best one, not better one". We concentrate on our products, and hope to provide our customers with best quality products at best price. We know we are young, and we are able to make great progress in future. We have great confidence in our products.
Now we sell our products mainly to refrigerator, freezer and water cooler factories in more than 15 countries and areas, including China, Pakistan, Italy, the USA and Russia. We also welcome customers all over the world to visit our company and set up business relationship for further development.
