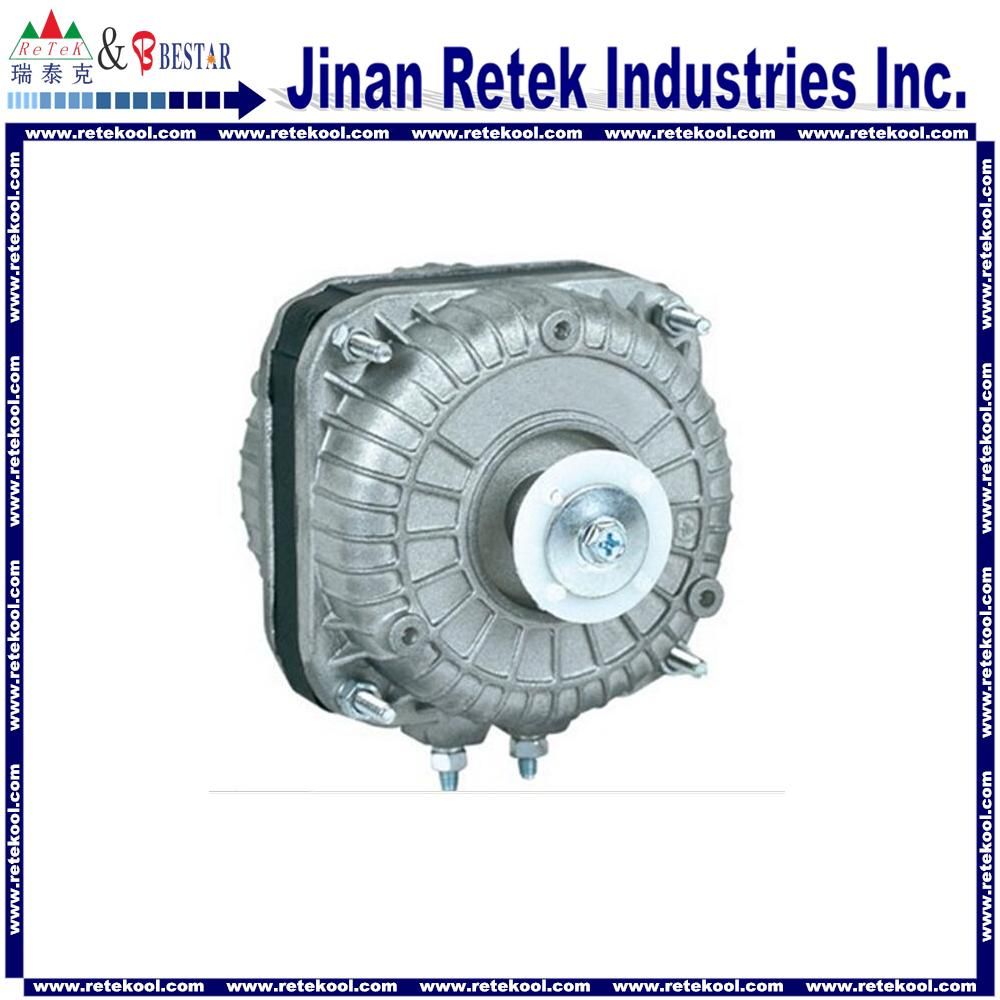

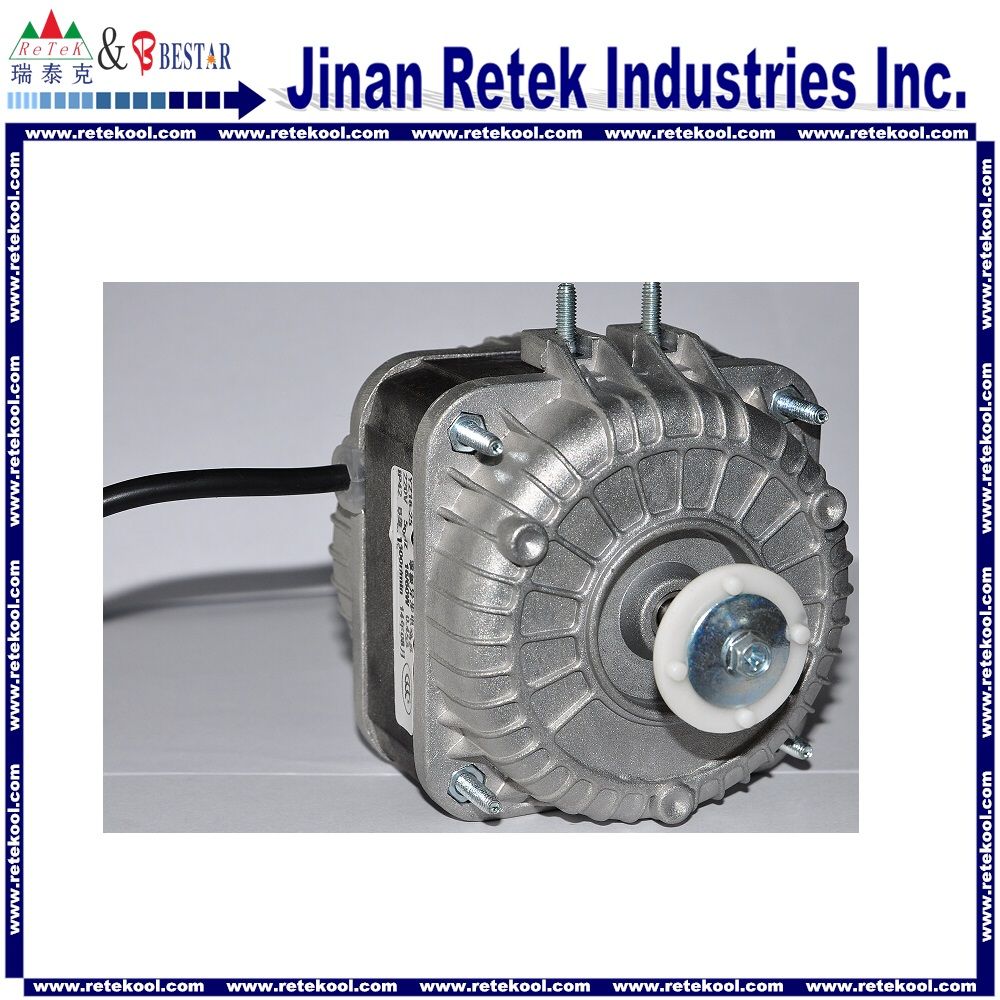

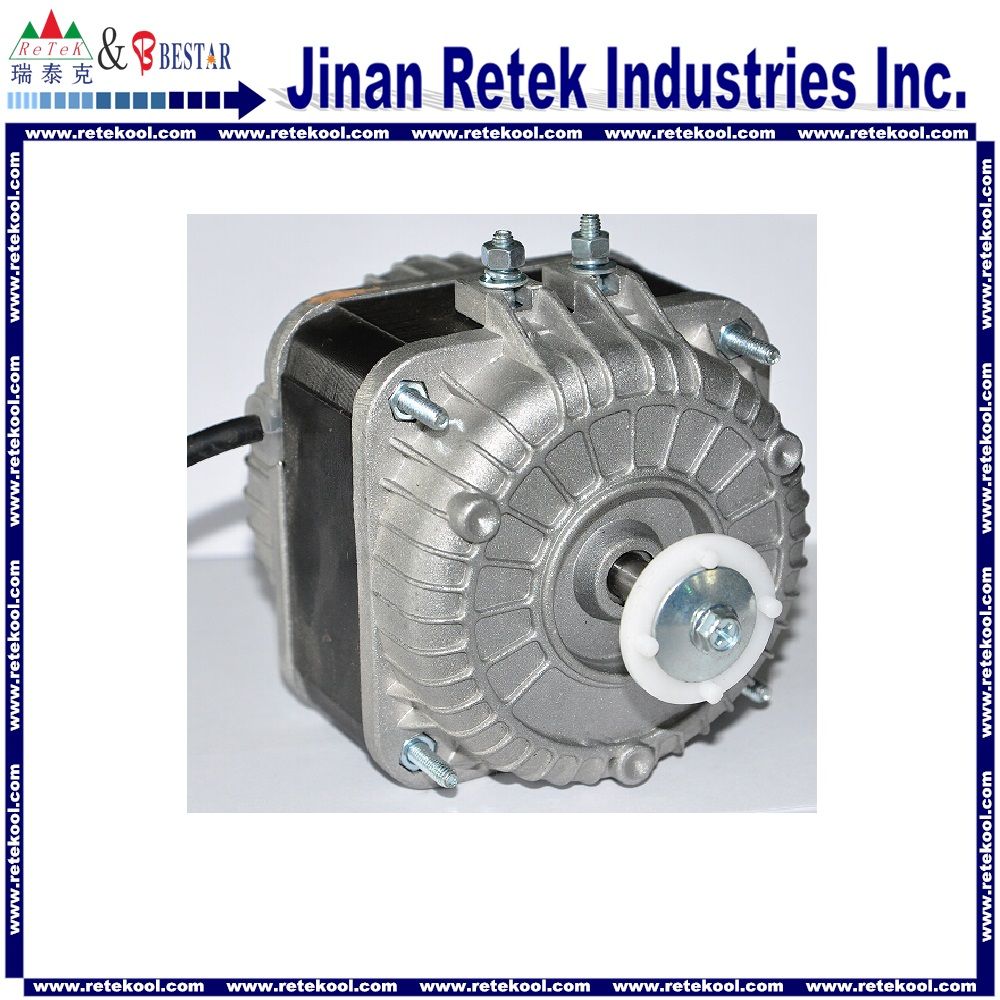

Shaded Pole Motor for Refrigerator

Name: Shaded Pole Motor for Refrigerator
Brand: all-electronics-online.com
SKU: 661828642
Availability: InStock
Rating: 4.6 (60 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	013015
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input:	33-150W
Output:	5-34W
Voltage:	110/220V
Blade Size:	170-300mm
Bracket Length:	72-110mm
Blade Degree:	19/22/25/28/31
Frequency:	50-60Hz
10W Refrigerator Shaded Pole Fan Motors:	10W Refrigerator Shaded Pole Fan Motors
Shaded Pole Motor For Refrigerator:	Shaded Pole Motor for Refrigerator
Number Of Stator:	Single-Phase
Function:	Driving
Brand:	Retekool

Product Description

10w Refrigerator Shaded Pole Fan Motors
10w Refrigerator Shaded Pole Fan Motors
10W Shaded Pole Motors for Refrigerator
Shaded Pole Motor for Refrigerator

Refrigerator Shaded Pole Fan Motors ,Shaded Pole Fan Motors,Refrigerator Fan Motors,Refrigerator Motors

Single Phase Refrigerator Shaded Pole Motor
Shaded Pole Motor Advantage:
1) 4 shaded poles with single phase
2)Running at rated voltage of 220-240V and 110-120V
3)Output power range from 5/7/10/16/18/25/34W
4) Insulation class of motors is B with the protection class IP42
5) Can provide fan motor with protection class IP41 as request.
6) Applicable ambient temperature is -30degree to 50 degree
7) Average service life is over 20000 hours
8) UL, CE, VDE, UL& CCC Approval

MODEL	OUTPUT	FAN SIZE
	(W)	(MM)
YJF203	3W	154
YJF205	5W	170/200
YJF207	7W	200/230
YJF310	10W	250
YJF316	16W	300
YJF318	18W	300
YJF325	25W	300
YJF334	34W	300

TYPE	YZ5-13-26		YZ7-20-26	YZ10-20-26		YZ16-25-26		YZ18-30-26		YZ25-40-26		YZ34-45-26
VOLTAGE V	220-240	110-120	220-240	220-240	110-120	220-240	110-120	220-240	110-120	220-240	110-120	220-240	110-120
FREQUENCY HZ	50/60	60	50/60	50/60	60	50/60	60	50/60	60	50/60	60	50/60	60
RATED INPUT W	33	33	38	40	55	70	70	73	75	95	100	120	110
OUTPUT W	5	5	7	10	10	16	16	18	18	25	25	34	34
RATED CURRENT A	0.21	0.55	0.23	0.25	0.8	0.45	1.01	0.5	1.1	0.7	1.4	0.85	1.5
RATED SPEED R/MIN	1300	1550	1300	1300	1550	1300	1550	1300	1450	1300	1450	1300	1450
FAN BLADE MM	200		230	230		250		250		300		300
BRACKET MM	H72		84	84		84		109-1		109-1		109-1
WEIGHT KG	0.8		1.1	1.1		1.4		1.5		1.8		2
QTY/CTN PCS	24		24	24		12		12		12		12
A MM	13		19	19		25		30		40		45
B MM	14		14	14		18		18		21		22
C MM	44		44	44		47		48		51		52
D MM	78		85	85		94		99		110		116
E MM
LICENSE	CE VDE CCC

Jinan Retek Industries Inc. is a professional supplier in China, specializing in refrigeration parts. Our main products are refrigerator parts. Now we have two factories in China, manufacturing different kinds of refrigeration parts. One is mainly manufacturing condensers and evaporators. The other one is mainly manufacturing copper filter driers, accumulators and access valves.

With the idea of "Best Products, Best Price and Best Services", our company spares no efforts to achieve the target of "Being the best one, not better one". We concentrate on our products, and hope to provide our customers with best quality products at best price. We know we are young, and we are able to make great progress in future. We have great confidence in our products.

Now we sell our products mainly to refrigerator, freezer and water cooler factories in more than 15 countries and areas, including China, Pakistan, Italy, the USA and Russia. We also welcome customers all over the world to visit our company and set up business relationship for further development.
