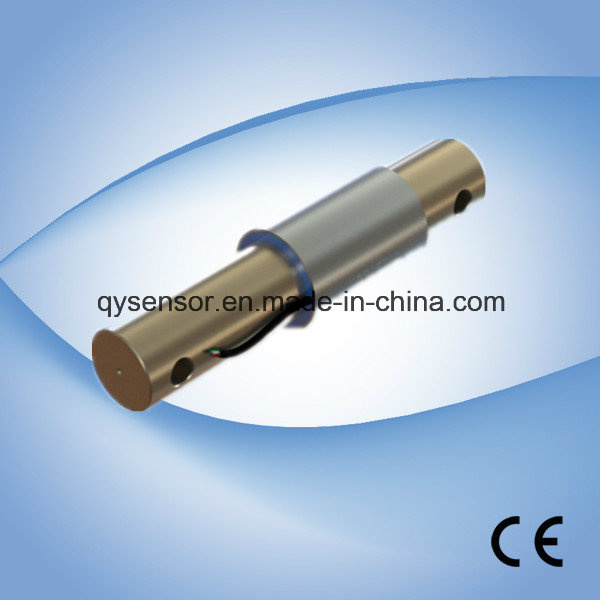

Shaft Pin Load Cell for Mixer Wagon (QH-23A)

Name: Shaft Pin Load Cell for Mixer Wagon (QH-23A)
Brand: all-electronics-online.com
SKU: 775289475
Availability: InStock
Rating: 4.4 (117 reviews)

Price:	US $ 120/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	4/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-23A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	2000kg to 7000kg
Load Cell Material:	Alloy Steel
IP Grade:	67
Application:	Mixer Wagon
Pattern:	Beam Load Cell

Product Description

Product Description

Features

- Capacity Range: 2000 Kg. to 7000 Kg.

- Alloy steel

- IP67 Protection

- High accuracy

Application

- Feed mixer wagon

- Live stock scale

- Onboard weighing

Description

LP series are high quality alloy steel Ioadcell designed for robust feed mixer wagon live stock scale and other mobile weighing applications, Nickel plating and full environmental sealing assure long-term reliability available for use in harsh or corrosive environments.

Sipecifications

Accuracy Class		D1
Output Sensitivity	mV/V	0.900 ± 0.1 ( FSO )
Capachy	Ton	2,2.5,3,4.2,7
Total Error	%FS	± 0.1
Creep 30 min.	%FS	± 0.1
Zero Balance	%FS	± 1
Input resistance		385 ± 10
Output resistance		350 ± 3
Insulation resistance	M	≥ 5000
Recommend Excitation	V ( DC )	5 ~ 12
Maximum Excitation	V ( DC )	15
Minimum dead load	t	0
Safe overload	%FS	150
Ultimate overload	%FS	200
Construction		Alloy steel
Protection Class		IP67
Cable	2,2.5,3 t. 4.2 t. 7 t.	Length 4 m, dia. 5 mm Length 5 m, dia. 5 mm Length 7 m, dia. 5 mm
