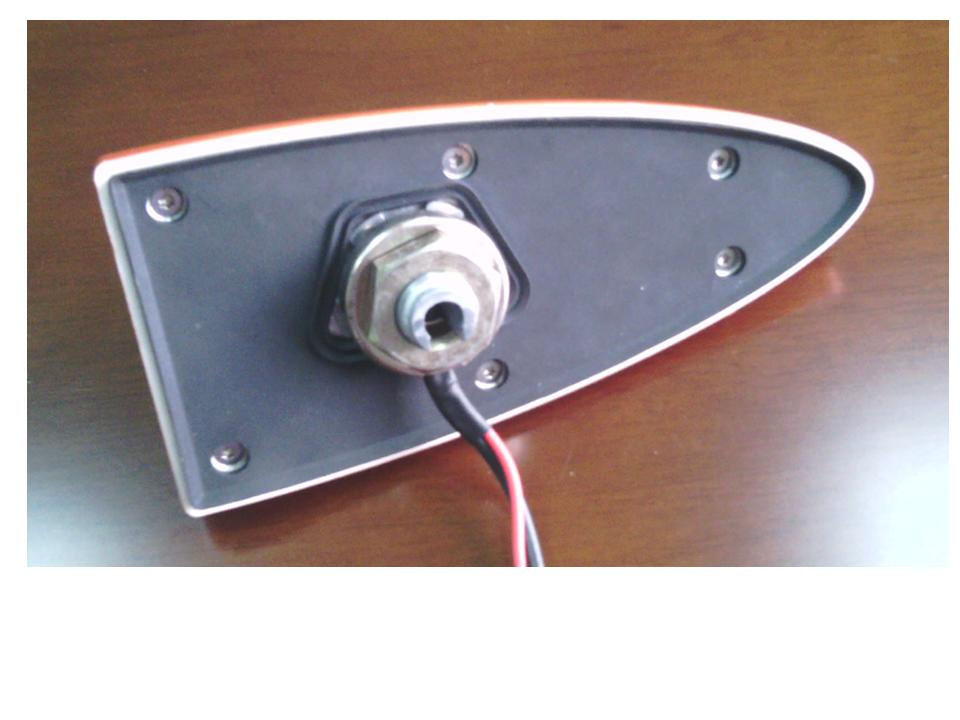

Shark Fin GPS+Am/FM+GSM Combined Function Car Antenna

Name: Shark Fin GPS+Am/FM+GSM Combined Function Car Antenna
Brand: all-electronics-online.com
SKU: 710350825
Availability: InStock
Rating: 5 (58 reviews)

Price:	US $ 9.5-10/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ATC-M10-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
FM Gain:	10dB
GPS Gain:	28dB
Waterproof:	100%
Assembled Torque:	5-7.5n.M
Car Assembled Hole Dimension:	15*15
Usage:	Car Antenna
Directionality:	Directional Antenna
VSWR:	1.5
Operating Wavelength:	FM/GPS/Bd/GSM
Material:	Zamak5/ABS777/EPDM
Sturcture Form:	Assembled by M14 Nut

Product Description

Huizhou Antenna Technology is subcompany of shenzhen antenna technology limited ,a high-tech company in Shenzhen .it was established in 2007 year .

Product: Car AM/FM Antenna ,GPS Antenna,GSM Antenna,TV Antenna,Shark fin Antenna , DAB Antenna , T-DMB Antenna , DVB-T Antenna , Multi-Function Antenna , HDTV Antenna ,Antenna Cable and Accessories.

GPS specification

Frequency	1575.42±1.023MHz
Center Frequency	1575.42MHz
Bandwidth	10
VSWR	1.5
Polarization	RHCP
Patch Gain	3dBi
Noise Figure	<1.6dB
LNA+Patch Gain	23± 3dB
Output Impendace	50 ohms
VSWR	<1.5:1
Ratio	<4dB
Patch Dimension(mm)	25*25
Connector	SMA
Amplifier
Amplifier Gain	28dB±3
VSWR	2.0
Noise Figure	4.0
Work Voltage	3.3V or 5V
Work Current	<15mA

AM/FM Specification

AM/FM SPECIFICATION
Frequency	AM:535-1605KHZ
Frequency	FM:87.5-108MHZ
Gain	FM:8+/-3dB
Gain	AM:8+/-3dB
Output Impendace	75 ohms
VSWR	2:1
Noise Fig.	<4.5dB
DC Voltage	12V
DC Current	30-50mA

GPRS specification

Frequency	824-960MHz ,1710-1880MHz
VSWR	1.5
Impedance	50 ohms
Gain	2dBi
Cable	RG174U

*Mechanical/Environmental Specification
1: Case Color: Black or White or Siliver or other color
2: Cable: RG174U
3: Connector: FAKRA for GPS, JASO PLUG for AM/FM,SMA for GSM
4: Operation/Storage Temperature: -40~+90º C
5: Pull force from cable: More than 6kgf
6: Pull & Push force of AM/FM PLUG: 4 ± 2kg
7.assembled nut torque:5-7.5N.m

Antenna Technology is a high-tech company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products; We always keep an eye on your demands and the developing trend of this industry, and have established a complete products system which is giving first to Car Antenna.

Provide the highest quality products and best service to create more value for customers. As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectations and needs, a large group of skilled technician work hard in order to increase the benefit for customers.

Product: Car AM/FM Antenna \GPS Antenna\GSM Antenna\TV Antenna\Shark fin Antenna\CB Antenna\T-DMB Antenna\DVB-T Antenna\Multi-Function Antenna\Antenna Cable and Accessories.

R&D: It has owned a R&D group of rich professional knowledge and practical experience, more designers have over 10 years R&D experience in SGM, Changan Suzuki, DongNan Mishubishi, Shanghai Automotive, VW, HaiMa Automotive, JMC, CHERY etc, They all have solid technical foundation and rich experience in production and guarantee the product quality, and the manager of company has operation skill in APQP, PPAP, DFMEA, PFMEA, CONTROL PLAN. And it has owned the design software for PRO/e, UG19.0, Catia V5r13, autocad 2006 and ADS2004, Protell99SE.

Our company owns advanced Network Analyzer, Signal Analyzer, Noise Figure Analyzer test equipments and 50 meters opened testing field. Environment Lab can process nature simulation testing of salt spray, aging, libration, pulling and High-low temperature.
