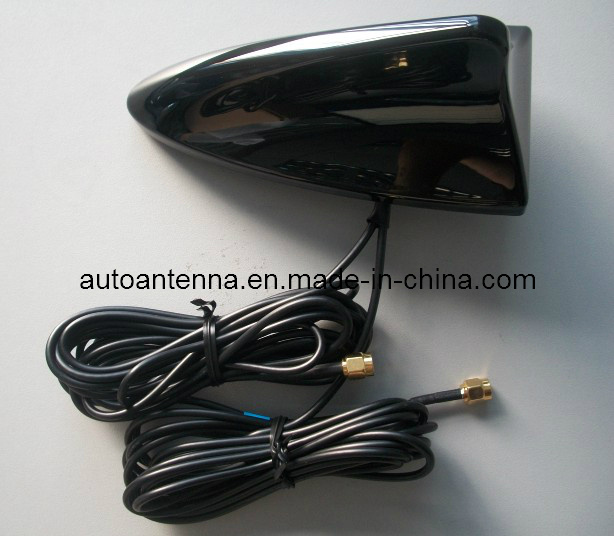

Shark Fin GPS+WiFi Combined SMA Reversed Type Car Antenna

Name: Shark Fin GPS+WiFi Combined SMA Reversed Type Car Antenna
Brand: all-electronics-online.com
SKU: 719797225
Availability: InStock
Rating: 4.3 (76 reviews)

Price:	US $ 7.50/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ATC-M020
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	GPS Combined WiFi
Housing Painting:	UV Painting
GPS Gain:	28dB
WiFi Gain:	2dBi
Usage:	TV Antenna
Directionality:	Directional Antenna
VSWR:	<1.5
Operating Wavelength:	1575.42+/-1.023MHz
Material:	ABS757/Zamak5/EPDM/Copper
Sturcture Form:	Mounted by M14 Nut

Product Description

Shenzhen Antenna Technology is a high-tech company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products, we always keep an eye on your demands and the developing trend of this industry, and have established a complete products system which is giving first to Car Antenna.

Our Product: Car AM/FM Antenna ,GPS Antenna,GSM Antenna,TV Antenna,Shark fin Antenna , DAB Antenna , T-DMB Antenna , DVB-T Antenna , Multi-Function Antenna ,HDTV antenna ,Antenna Cable and Accessories.

R&D: It has owned a R&D group of rich professional knowledge and practical experience, more designers have over 16 years R&D experience in Changan ford,SGM,Changan Suzuki,DongNan Mishubishi,ShangHai Automotive ,VW,HaiMa Automotive,DONGFENG NISSAN,JMC,CHERY etc, They all have solid technical foundation and rich experience in production and guarantee the product quality, and the manager of company has operation skill in APQP,PPAP,DFMEA, PFMEA,CONTROL PLAN.and it has owned the design software for pro/e,UG19.0,Catia v5r13,autocad 2006 and ADS2004,Protell99SE.

GPS Specification:
1. Frequcency: 1575.42± 1.023Mhz
2. Patch Dimension: 25*25
3. Polarization: RHCP
4. LNA Gain: 28± 2dB
5. Noise figure: 1.6dB Max.
6. Output Impedance: 50 ohms
7. V. S. W. R: 1.5 Max.
8. Axial Ratio: 90° 4.0dB Max
Mounted on the 60*60mm square ground plane
9. Operating Voltage: 3-5V
10. Power Consumption: 25mA Max
11. Mounting dimension: 15*15mm
12. Mounting torque: 5-7.5N. M

WIFI Specification:
1. Frequency Range: 2400-2483MHz
2. Gain: 2dBi
3. Connector: SMA Reversed Plug.

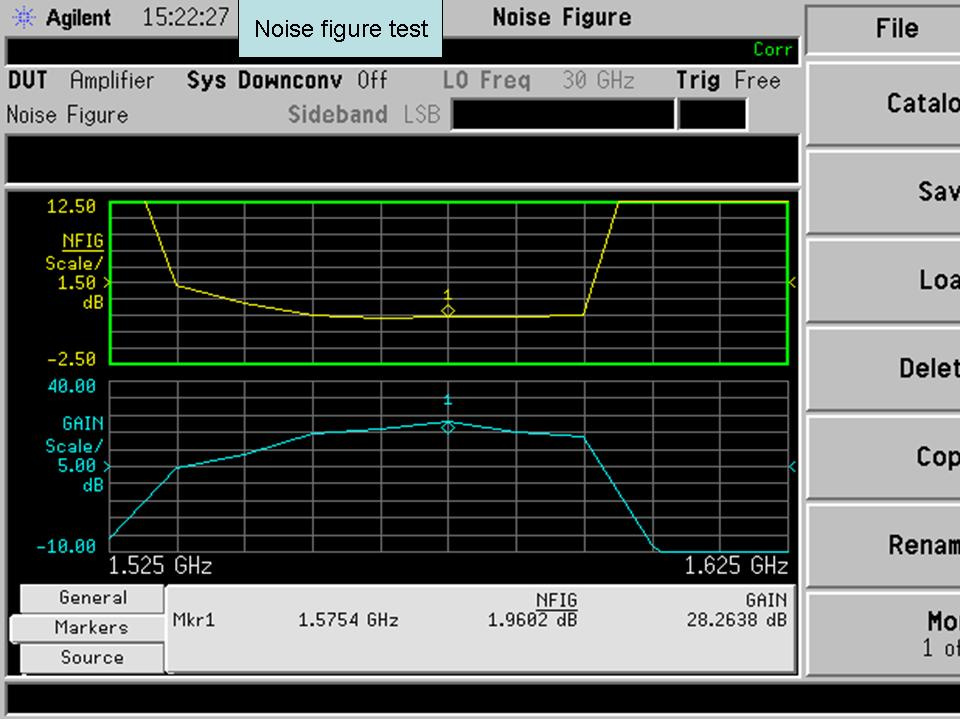

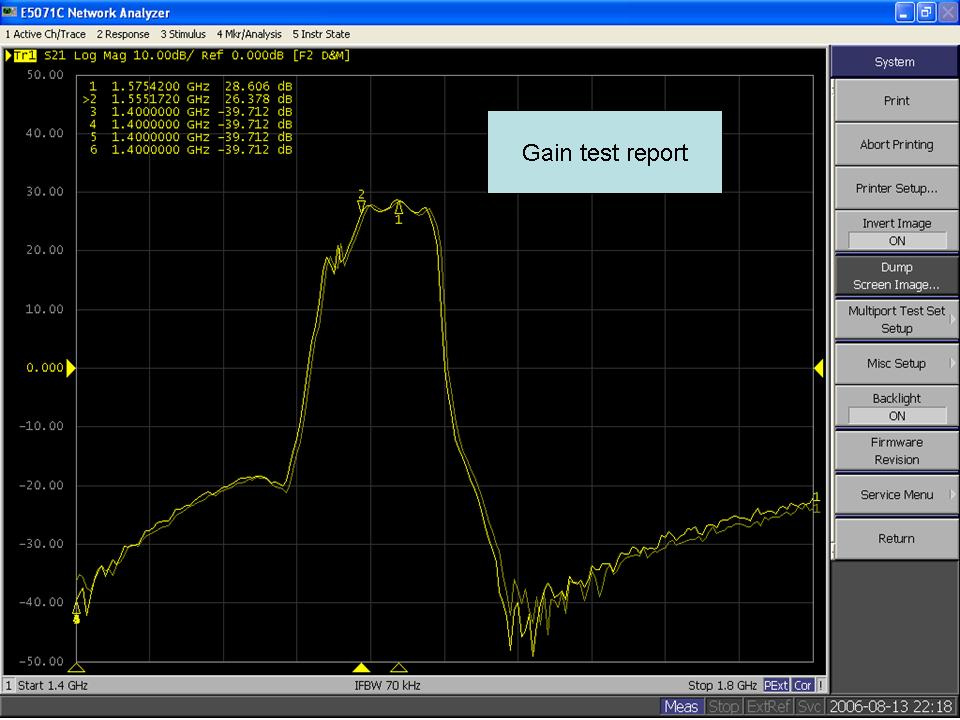

Test Report

Antenna Technology is a high-tech company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products; We always keep an eye on your demands and the developing trend of this industry, and have established a complete products system which is giving first to Car Antenna.

Provide the highest quality products and best service to create more value for customers. As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectations and needs, a large group of skilled technician work hard in order to increase the benefit for customers.

Product: Car AM/FM Antenna \GPS Antenna\GSM Antenna\TV Antenna\Shark fin Antenna\CB Antenna\T-DMB Antenna\DVB-T Antenna\Multi-Function Antenna\Antenna Cable and Accessories.

R&D: It has owned a R&D group of rich professional knowledge and practical experience, more designers have over 10 years R&D experience in SGM, Changan Suzuki, DongNan Mishubishi, Shanghai Automotive, VW, HaiMa Automotive, JMC, CHERY etc, They all have solid technical foundation and rich experience in production and guarantee the product quality, and the manager of company has operation skill in APQP, PPAP, DFMEA, PFMEA, CONTROL PLAN. And it has owned the design software for PRO/e, UG19.0, Catia V5r13, autocad 2006 and ADS2004, Protell99SE.

Our company owns advanced Network Analyzer, Signal Analyzer, Noise Figure Analyzer test equipments and 50 meters opened testing field. Environment Lab can process nature simulation testing of salt spray, aging, libration, pulling and High-low temperature.
