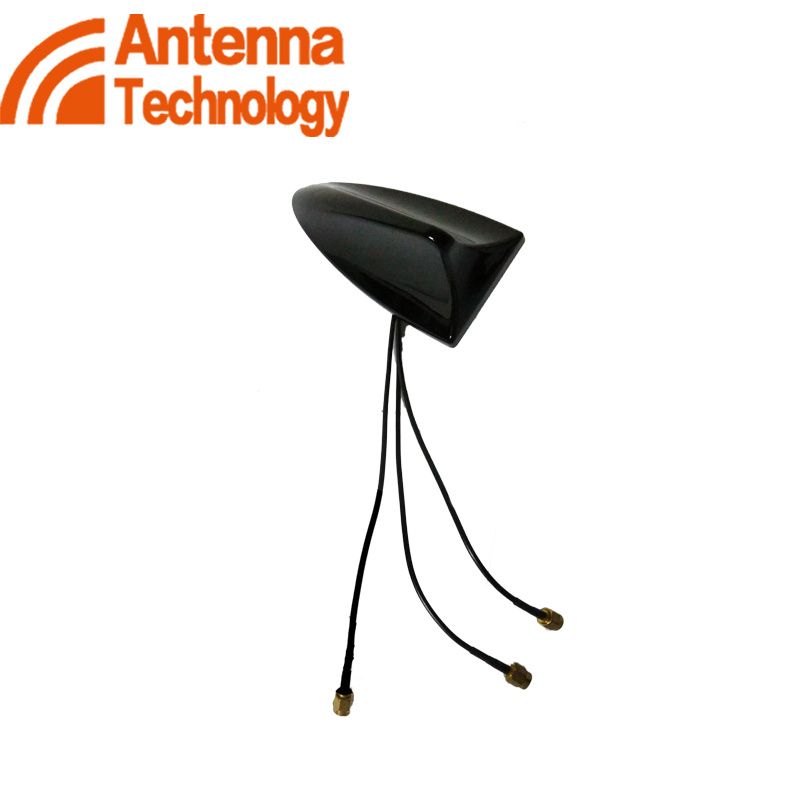

Shark Fin GPS WiFi GSM Antenna

Name: Shark Fin GPS WiFi GSM Antenna
Brand: all-electronics-online.com
SKU: 792158475
Availability: InStock
Rating: 4.7 (111 reviews)

Price:	US $ 4.2/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ATC-M04
Shark Fin Antenna:	Roof or Screw-on
Gain:	30dB
Impedance:	50 Ohms
Connector:	According to Your Demand
Cable Type:	Rg174u or Rg58u
Type:	GPS Antenna

Product Description

company information
Antenna Technology is a high-teach company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products, we always keep an eye on your demands and the developing trend of this industry, and have established a complete products system of car antenna.
Our company has 10 years experience in manufacturing car antenna. The superior engineers provide precondition for product innovation, perfect production and testing equipment provide the quality guarantee for our products.
As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectation and needs, a large group of skilled technician work hard in order to increase the benefit for customers.

product

specification

Origin	China
Brand	ATC
Model	ATC-M04
Warranty	3 years
GPS specification
Frequency	1575.42 ± 1.023MHZ
Polarization	RHCP
LNA Gain	28 ±2dB
Noise Figure	<1.6dB
LNA+Patch Gain	23± 3dB
Output Impendance	50 ohms
VSWR	<1.5:1
Ratio	<4dB
Work Voltage	3.3V or 5V
Work Current	<15mA
Patch Dimension(mm)	18*18 mm
Connector	SMA Male ,Golden color
WIFI Specification
Frequency range	2400-2500MHz
V.S.W.R	< 1.5
Impedance	50 ohms
Polarization	Vertical
Gain	2dbi
Cable	RG174U,50 ohms
Connector	SMA male ,White color
WIFI Specification
Frequency	2400-2485MHz
Impedance	50 ohms
VSWR	< 1.5
Polarization	vertical
Gain	2dbi
Cable	RG174U 50 ohms
Connector	SMA Male

packing

practical application

Antenna Technology is a high-tech company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products; We always keep an eye on your demands and the developing trend of this industry, and have established a complete products system which is giving first to Car Antenna.

Provide the highest quality products and best service to create more value for customers. As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectations and needs, a large group of skilled technician work hard in order to increase the benefit for customers.

Product: Car AM/FM Antenna \GPS Antenna\GSM Antenna\TV Antenna\Shark fin Antenna\CB Antenna\T-DMB Antenna\DVB-T Antenna\Multi-Function Antenna\Antenna Cable and Accessories.

R&D: It has owned a R&D group of rich professional knowledge and practical experience, more designers have over 10 years R&D experience in SGM, Changan Suzuki, DongNan Mishubishi, Shanghai Automotive, VW, HaiMa Automotive, JMC, CHERY etc, They all have solid technical foundation and rich experience in production and guarantee the product quality, and the manager of company has operation skill in APQP, PPAP, DFMEA, PFMEA, CONTROL PLAN. And it has owned the design software for PRO/e, UG19.0, Catia V5r13, autocad 2006 and ADS2004, Protell99SE.

Our company owns advanced Network Analyzer, Signal Analyzer, Noise Figure Analyzer test equipments and 50 meters opened testing field. Environment Lab can process nature simulation testing of salt spray, aging, libration, pulling and High-low temperature.
