| Prod Model: |
GH0637AA2G |
| Lasing Wavelength: |
635nm~643nm |
| Optical Output Power: |
700MW |
| Can Type: |
To18-5.6mm |
| Light Color: |
Red |
| Power Characteristic: |
High Power |
| Life Time: |
10000 Hours |
| Operating Current: |
910mA |
| Operating Voltage: |
2.5V |
| Ld Reverse Voltage: |
2V |
| Operating Temperature: |
-10~ +40 Degree |
Product Description
Features:1. Shorter wavelength: 638nm Typ.
2. High optical output power: 700mW
3. Small package: 5.6mm diameter

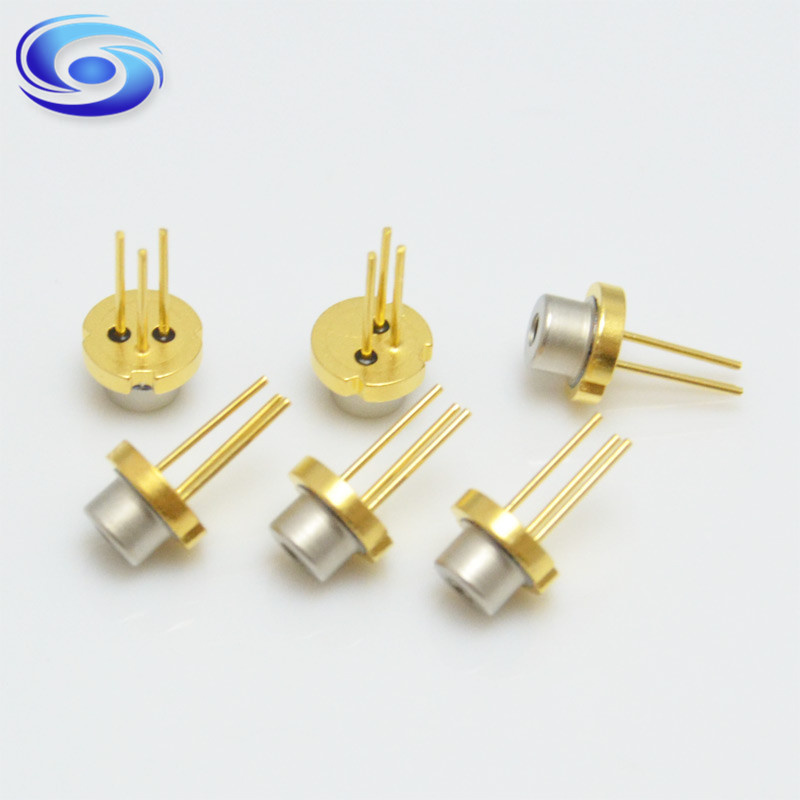

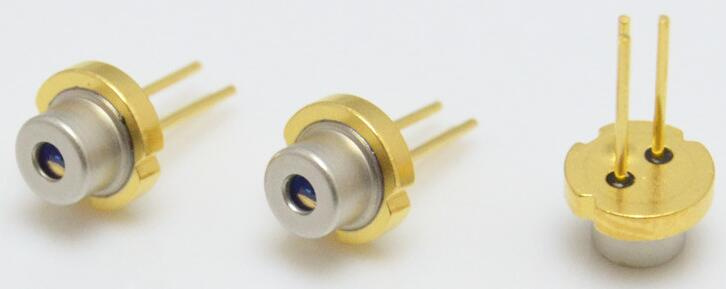

Sharp Original Package Powerful 638nm 700MW Red Laser Diode

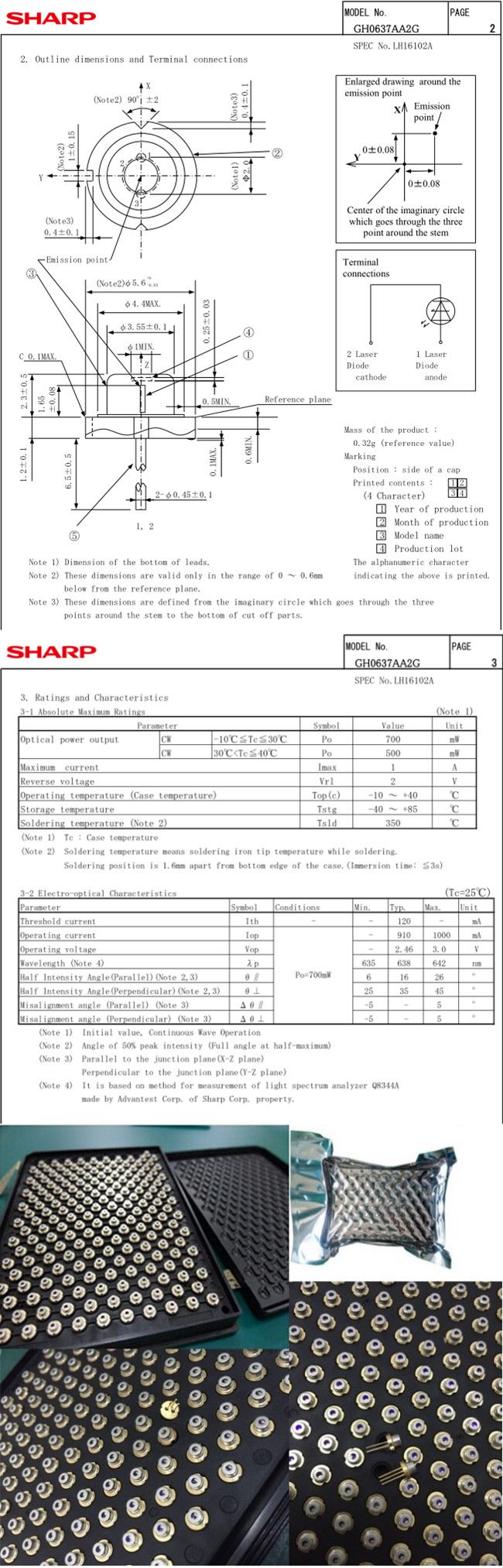

Absolute Maximum Ratings (Tc=25ºC)
| Item | Symbol | Ratings | Unit |
| Optical Output Power(-10~+30ºC) | Po(1) | 700 | mW |
| Optical Output Power(+30~+40ºC) | Po(2) | 500 | mW |
| Maximum current | Imax | 1 | A |
| LD Reverse Voltage | Vr(LD) | 2 | V |
| Operating Temperature | Tpor | -10~+40 | ºC |
| Storage Temperature | Tstg | -40~+85 | ºC |
| Soldering Temperature | Tsld | 350 | ºC |
Electrical/Optical Characteristics ( Tc=25ºC
| Parameter | Symbol | Min | Typ | Max | Unit | Test Condition |
| Lasing Wavelength | λp | 635 | 638 | 643 | nm | Po=700mW |
| Threshold Current | Ith | - | 120 | - | mA | - |
| Operating Current | Iop | - | 910 | 1000 | mA | Po=700mW |
| Operating Voltage | Vop | - | 2.46 | 3.0 | V | Po=700mW |
| Beam Divergence Parallel to the junction | - | 6 | 16 | 26 | ° | Po=700mW |
| Beam Divergence Perpendicular to the junction | - | 25 | 35 | 45 | ° | Po=700mW |
Description:
1. Multi transverse mode.
2. TM mode oscillation.
3. Cheap price Sharp GH0637AA2G 638nm 700mw red laser diode for show laser.
4. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 100pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.
Welcome Your Inquiry
TO: Song Song
Mob: +86 13713250894
Dongguan BU Laser Co.,Ltd
Packaging&Shipping:
1. Plastic box, ESD bag, standard and normal package.
2.1-3 days after receiving the payment by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance.
3.It will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one.
4. Delivery time will be usually 3~5 working days.
Company Information&Services:
A.Every customer's admiration is our goal and future willing, we are concentrated in doing the best quality products,
supplying the best goods and service.

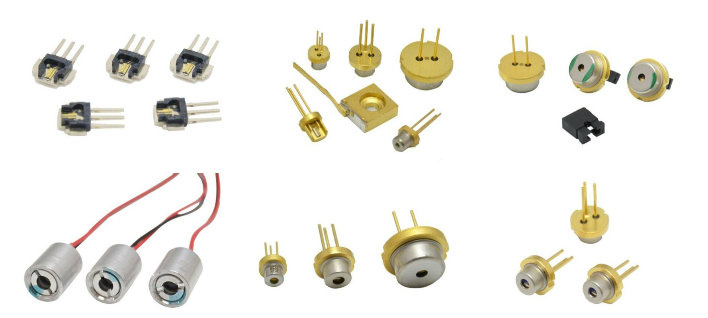

B.Main products: Semiconductor laser diode, laser module, laser power bank,
